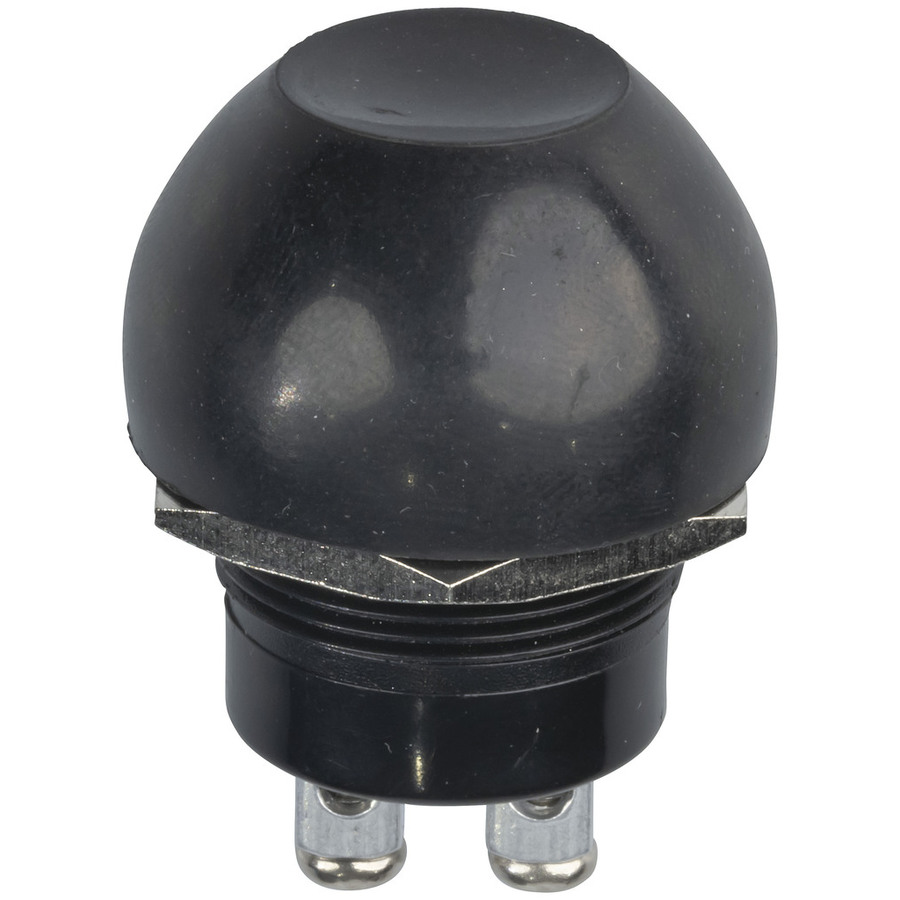

5A DC SPST Waterproof Momentary Pushbutton Switch - 30mm Diameter
5A DC SPST Waterproof Momentary Pushbutton Switch - 30mm Diameter

CAT. No. SP0732

5A DC SPST Waterproof Momentary Pushbutton Switch - 30mm Diameter
product image thumb

5A DC SPST Waterproof Momentary Pushbutton Switch - 30mm Diameter

$9.95
Plastic housing with brass 5A DC contacts. Rubber cap over housing renders assembly virtually waterproof.* Requires 22mm mounting hole.* Screw termina...
Available

Description

Plastic housing with protective rubber cap for harsh enviroments.

- Requires 22mm mounting hole.
- Screw terminals.
- Ideal for horn button, starter motor activation, etc.


    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Screw Terminal
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos

    Product Mounting

    Round Mount Hole Diameter
    		 22mm

    DC Current Rating

    DC current rating
    		 5A

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 3cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.036l
    Packaged Height
    		 3cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SP0732-dataSheetMain.pdf
