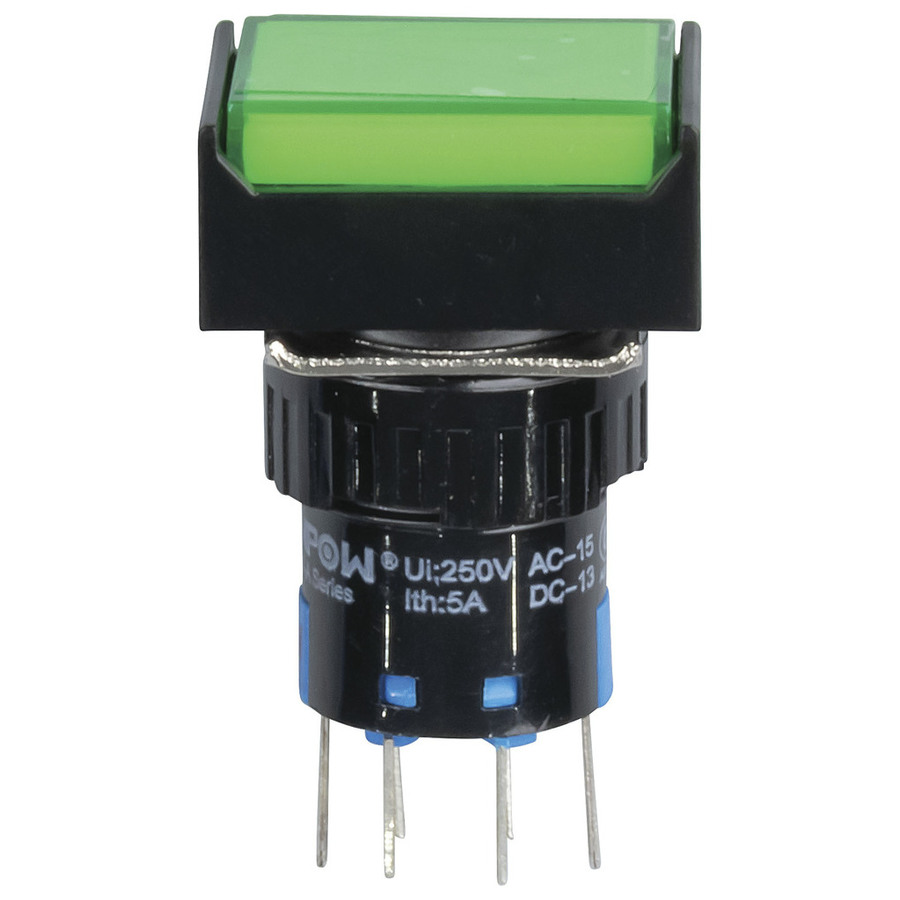

DPDT Illuminated Pushbutton IP65 Green
DPDT Illuminated Pushbutton IP65 Green

CAT. No. SP0749

DPDT Illuminated Pushbutton IP65 Green
product image thumb

DPDT Illuminated Pushbutton IP65 Green

$18.95
- IP65 rated - DPDT - Push on-push off - Rated for 250VAC 5A - 12VDC LED illumination - Mounting hole 15mm...
Available

Description

Features:

• IP65 rated
• DPDT
• Push on-push off
• 12VDC LED illumination


    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 DPDT
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 2pos
    Mechanism Material
    		 Plastic

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Round Mount Hole Diameter
    		 15mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 0.5A

    In-built Illumination

    Type
    		 3mm Standard LED
    Illumination Colour
    		 Green
    Illumination Position
    		 Top
    Connection
    		 Solder Legs
    Nominal Voltage
    		 12V

    Product Dimensions

    Length
    		 24mm
    Height
    		 41mm
    Width
    		 18mm

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.01kg
    Packaged Volume
    		 0.02l
    Packaged Height
    		 2cm

    Product Availability

    Availability
    		 Stocked item
