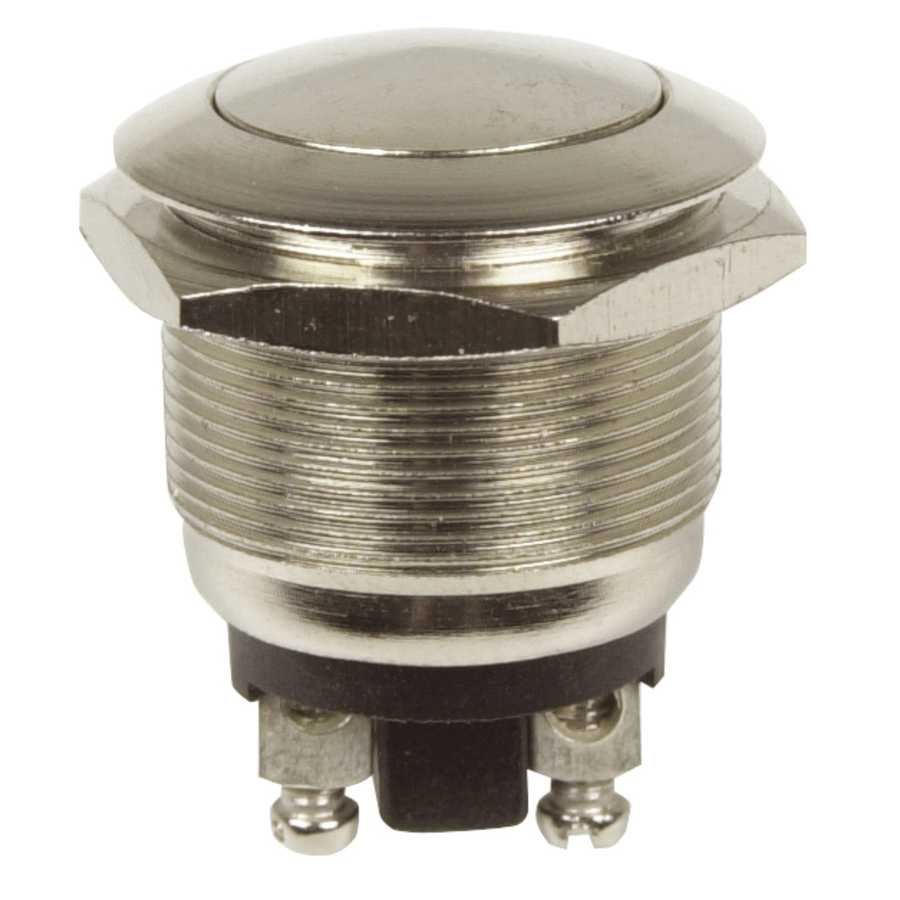

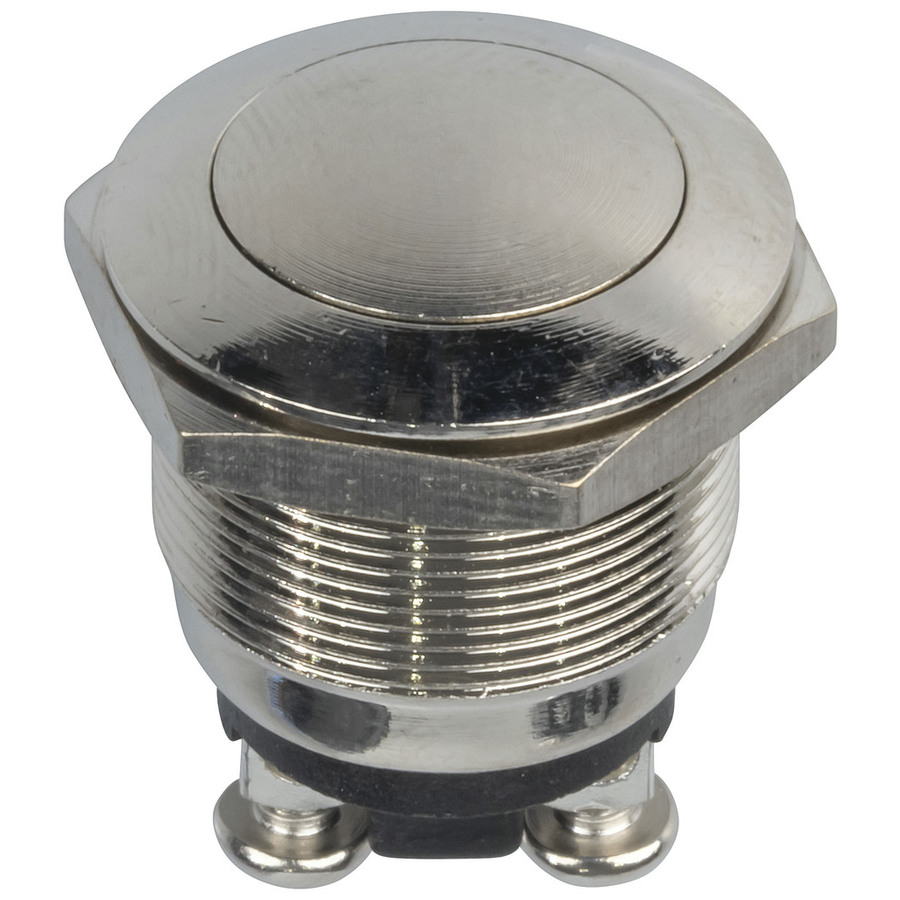

Metal Momentary SPST
Metal Momentary SPST
Metal Momentary SPST
Metal Momentary SPST

CAT. No. SP0755

Metal Momentary SPST
product image thumb
product image thumb
product image thumb

Metal Momentary SPST

$9.95
- Silver Metal body- Rated 8A @ 125VAC or 4A VAC- Momentary action SPST- 19mm mounting hole- Screw terminal termination...
Available

Description

- Silver Metal body
- Momentary action SPST
- Screw terminal termination

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Screw Terminal
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Mechanism Material
    		 Metal

    Product Mounting

    Attachment / Securing Method
    		 Screw Down
    Round Mount Hole Diameter
    		 19mm
    Mounting Method
    		 Panel

    DC Voltage Rating

    DC Voltage
    		 32V

    DC Current Rating

    DC current rating
    		 8A

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 4A

    Packaged Dimensions

    Packaged Length
    		 2.3cm
    Packaged Width
    		 2.3cm
    Packaged Weight
    		 0.021kg
    Packaged Volume
    		 0.014812l
    Packaged Height
    		 2.8cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    N/A
