Heavy Duty DPDT Foot Switch
Heavy Duty DPDT Foot Switch

CAT. No. SP0764

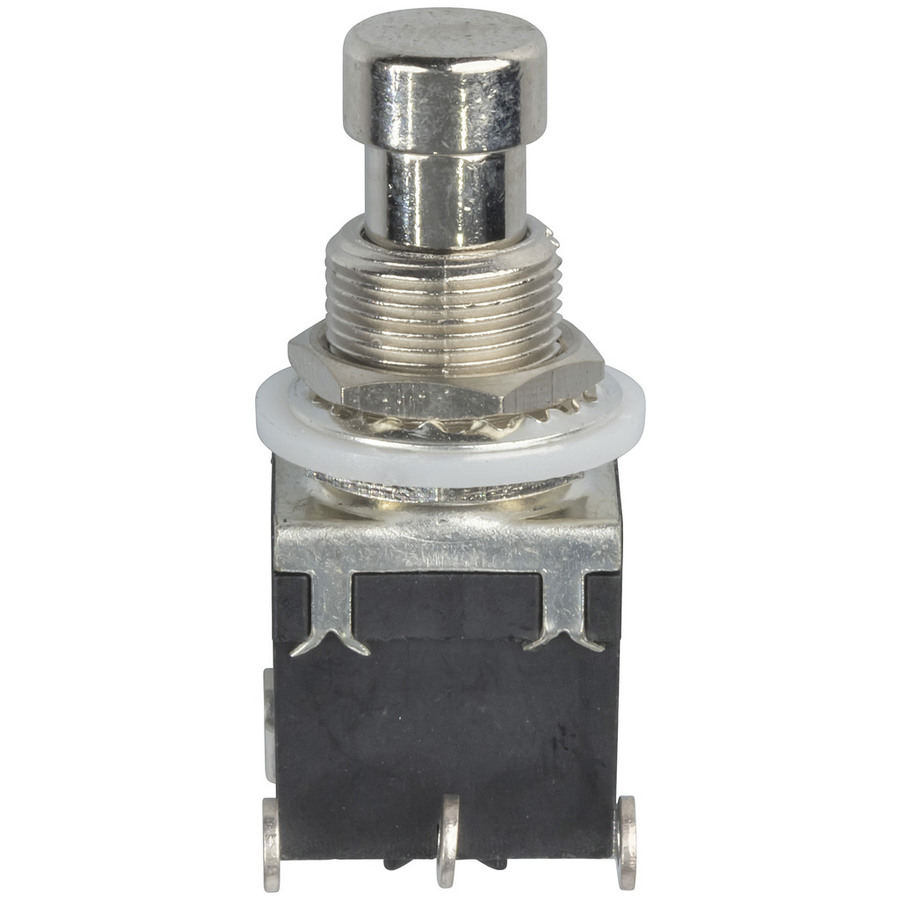

Heavy Duty DPDT Foot Switch
product image thumb

Heavy Duty DPDT Foot Switch

$9.95
The alternative action switch (push on, push off).Contact rating with resistive load 2A/250VAC. Contact resistance 0.08 ohms. Ideal for guitar effects pedals.
Available

Description

The alternative action switch (push on, push off). Contact rating with resistive load 2A/250VAC. Contact resistance <0.08 ohms

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 DPDT
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Foot Pushbutton
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 2pos
    Actuator Width
    		 12mm
    Actuator Length
    		 24.4mm
    Contact Resistance
    		 0.08?

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 2A

    Packaged Dimensions

    Packaged Length
    		 7.3cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.18kg
    Packaged Volume
    		 0.0803l
    Packaged Height
    		 2.2cm

    Product Availability

    Availability
    		 Stocked item
