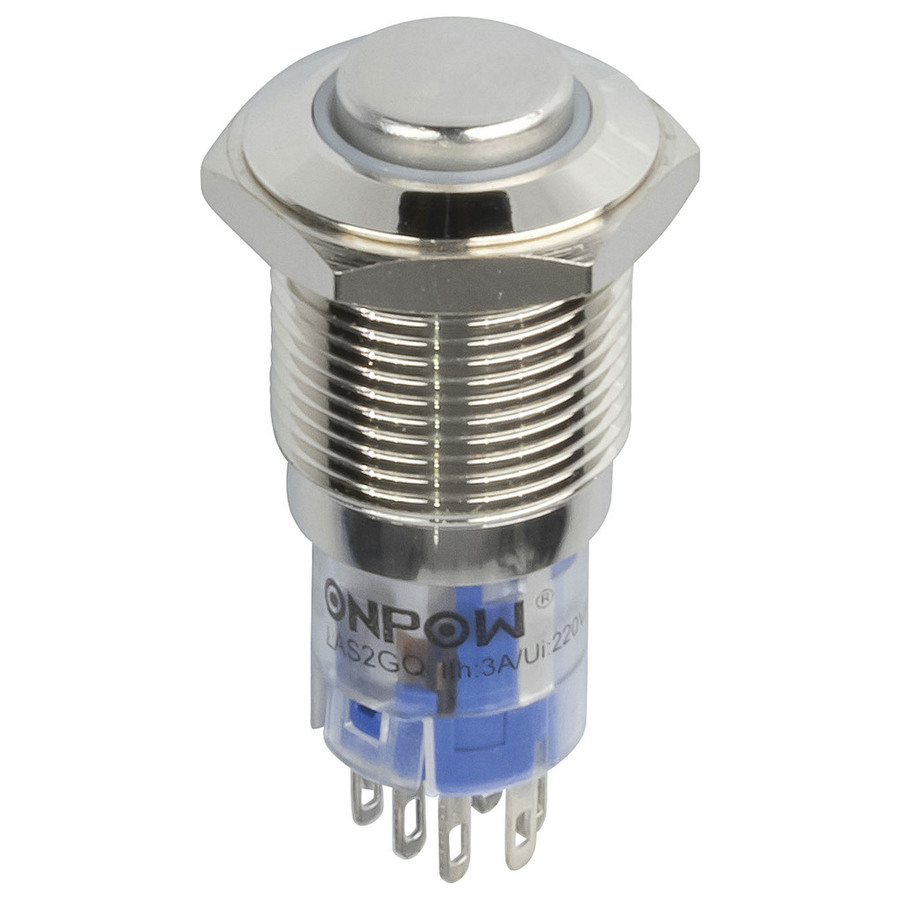

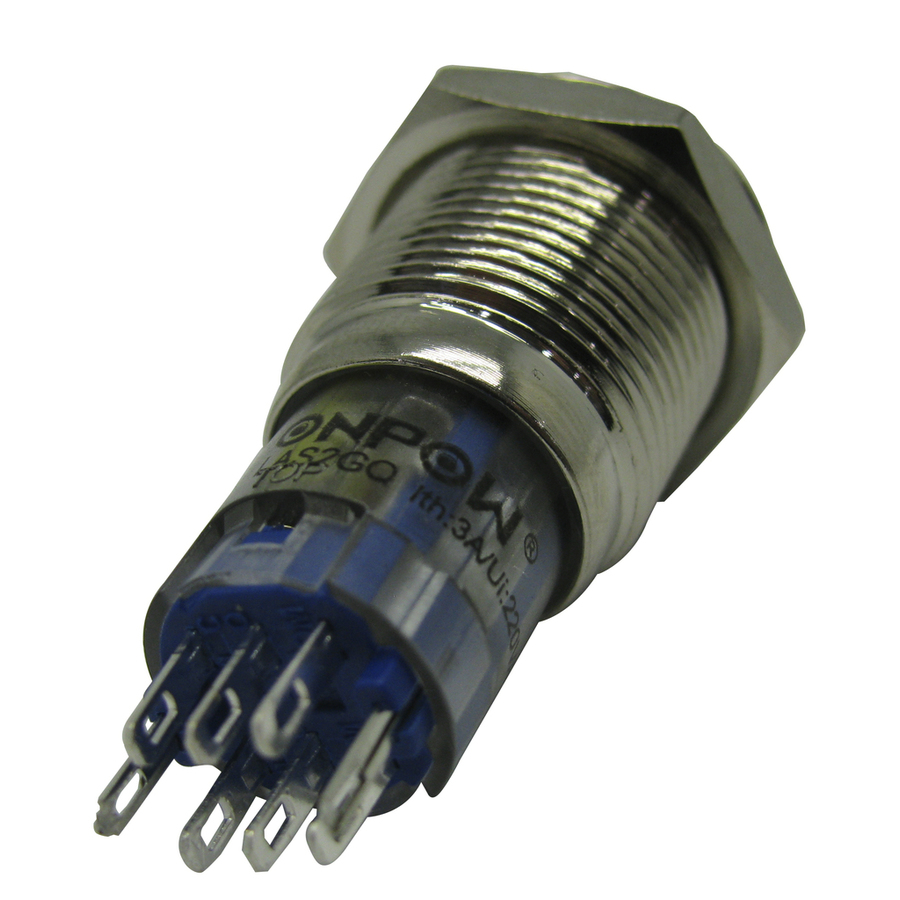

IP67 Illuminated Switch RedGreen Latching DPDT
IP67 Illuminated Switch RedGreen Latching DPDT
IP67 Illuminated Switch RedGreen Latching DPDT

CAT. No. SP0788

IP67 Illuminated Switch RedGreen Latching DPDT
product image thumb
product image thumb

IP67 Illuminated Switch RedGreen Latching DPDT

$28.95
Dual colour red/green illuminated, DPDT,

Out of Stock

Description

1 Year Warranty

IP67 rated for industrial use or other harsh environments. Dual colour red/green illuminated, metal body, DPDT, push-on/push-off action. Rated for 250VAC @ 3A, with 12VDC LED illumination. Mounting hole 16mm.

    Specifications

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 2.1cm
    Packaged Weight
    		 0.016kg
    Packaged Volume
    		 0.01596l
    Packaged Height
    		 1.9cm

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 DPDT
    Switch Connection
    		 Solder Legs
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 2pos

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Round Mount Hole Diameter
    		 16mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 3A

    Product Availability

    Availability
    		 Stocked item
    Warranty: 12 Months
