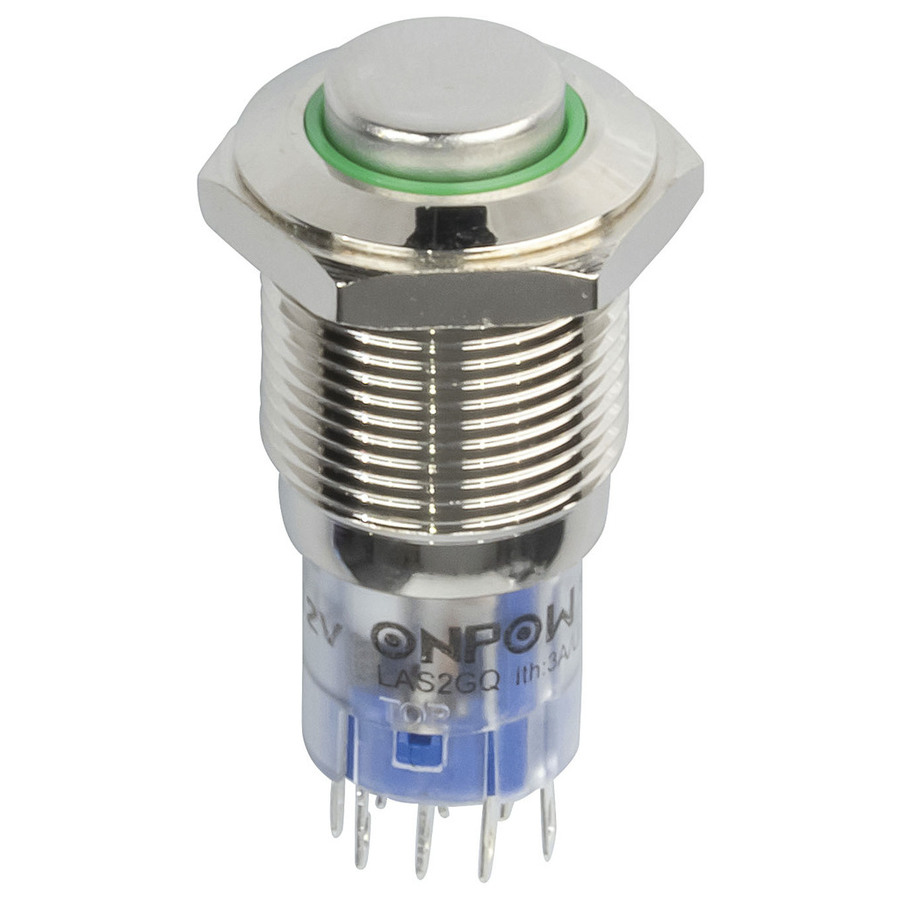

IP67 Rated Illuminated Momentary Switch Green
IP67 Rated Illuminated Momentary Switch Green

CAT. No. SP0797

IP67 Rated Illuminated Momentary Switch Green
product image thumb

IP67 Rated Illuminated Momentary Switch Green

$23.95
From our range of switches available in a variety of styles suitable for your specific purpose.
Available

Description

IP67 rated for industrial use or other harsh environments. Illuminated, metal body, DPDT, on-off or momentary action.

IP67 Rated Illuminated Pushbutton Switch DPDT - Red Cat SP-0791
IP67 Rated Illuminated Pushbutton Switch DPDT - Green Cat SP-0792
IP67 Rated Illuminated Pushbutton Switch DPDT - Blue Cat SP-0793
IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Red Cat SP-0796
IP67 Rated Illuminated Pushbutton Switch DPDT Momentary - Green Cat SP-0797

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 DPDT
    Switch Connection
    		 Solder Tags
    Switch Type
    		 Pushbutton
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 2pos
    Switch Colour Coded
    		 Green
    Actuator Width
    		 18mm
    Actuator Length
    		 20mm

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Round Mount Hole Diameter
    		 16mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 3A

    In-built Illumination

    Type
    		 5mm Standard LED
    Illumination Colour
    		 Green
    Connection
    		 Solder Tags
    Nominal Voltage
    		 12V

    Ingress Protection Rating

    IP Rating
    		 67
    IP Rating certificate
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 7 - Immersion up to 1m

    Product Dimensions

    Height
    		 40mm
    Diameter
    		 22mm

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.017kg
    Packaged Volume
    		 0.016l
    Packaged Height
    		 2cm

    Product Availability

    Availability
    		 Stocked item
