CAT. No. SR1222

Binary Coded DIL Rotary Switches - BINARY CODED DECIMAL
product image thumb
product image thumb

Binary Coded DIL Rotary Switches - BINARY CODED DECIMAL

$4.95
From our range of switches available in a variety of styles suitable for your specific purpose.

Out of Stock

Description

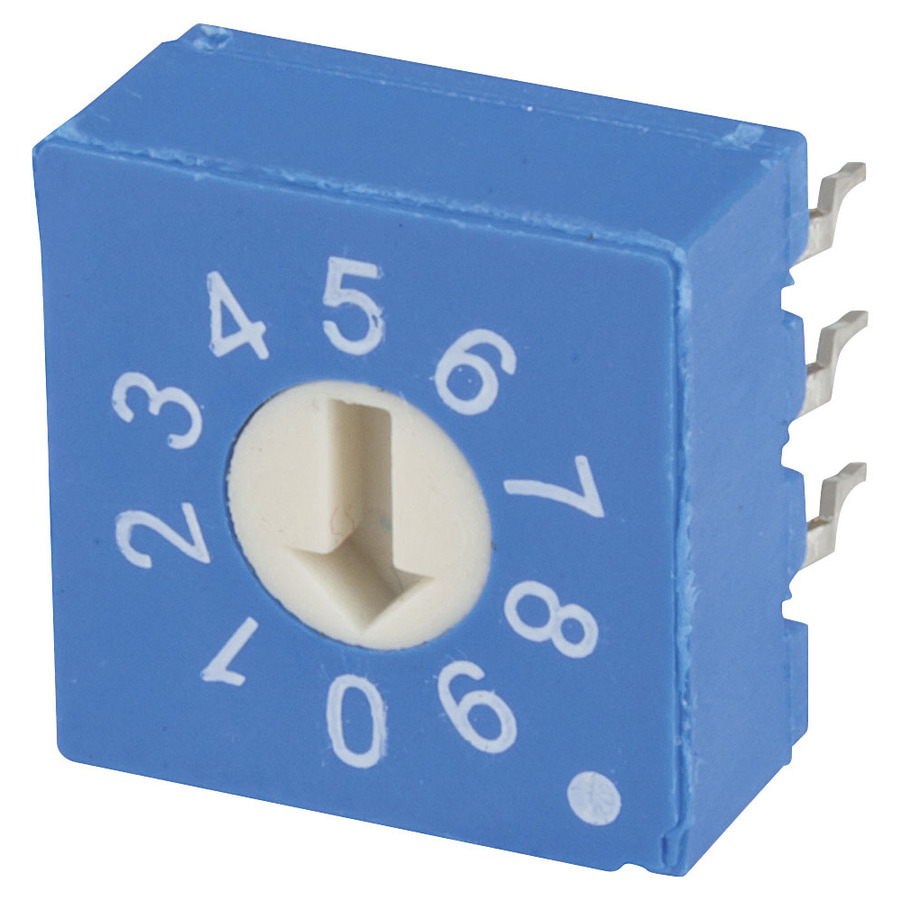

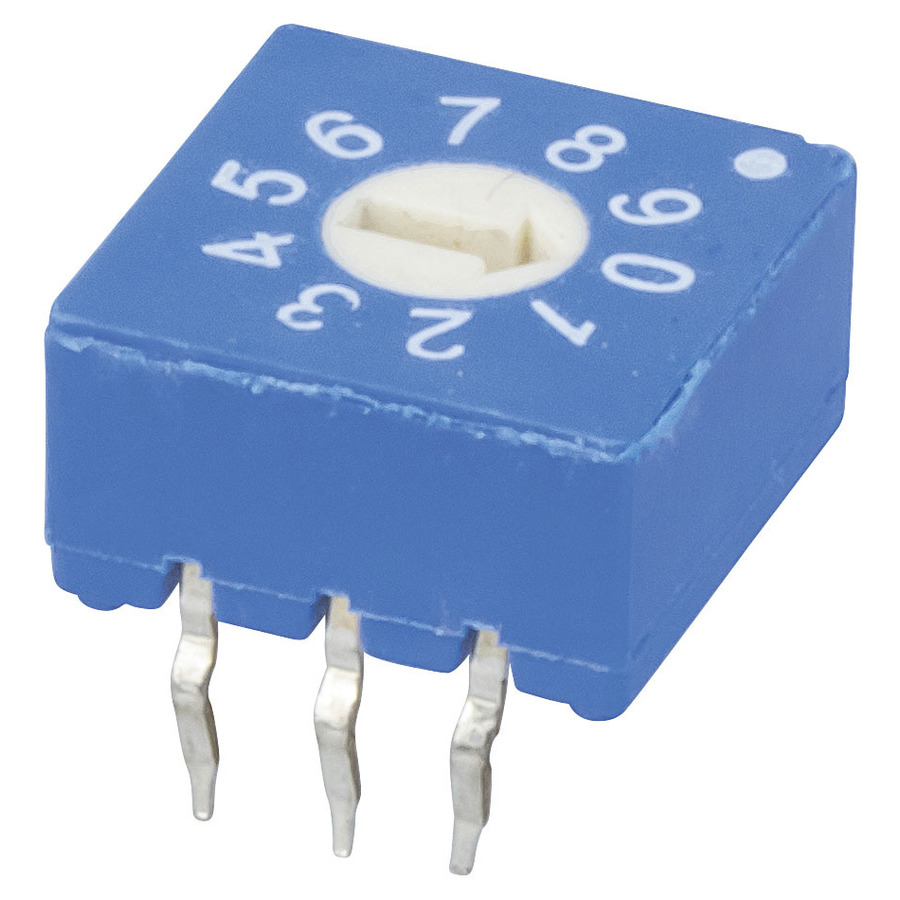

These tiny switches are designed for PCB use. These pins are moulded in and fully sealed. The body is mouldedin UL 94V-0 flame retardant plastic.

Features:

Contact rating: Switching: 25mA@24VDC
Non Switching: 100mA@50VDC
Rotational Torque Required: 500gf-cm
Vibration: Per MIL-STD-202F Method 204D
Solderability After flux: 230 +/-5°C for 5 +/- 0.5 sec- 0 through 9 output


    Specifications

    Electromechanical Switch

    Cycle Life
    		 20000 cycles
    Dielectric Strength
    		 250V
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rotary
    Poles / Contacts
    		 10 pole
    Contact Resistance
    		 100m?
    Insulation Resistance
    		 1000M?

    Product Mounting

    Attachment / Securing Method
    		 Snap-in
    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 24V

    DC Current Rating

    DC current rating
    		 25mA

    Operating Temperature

    Operating Temperature
    		 70°C

    Product Dimensions

    Length
    		 10mm
    Height
    		 5mm
    Width
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 1cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SR1222-dataSheetMain.pdf
