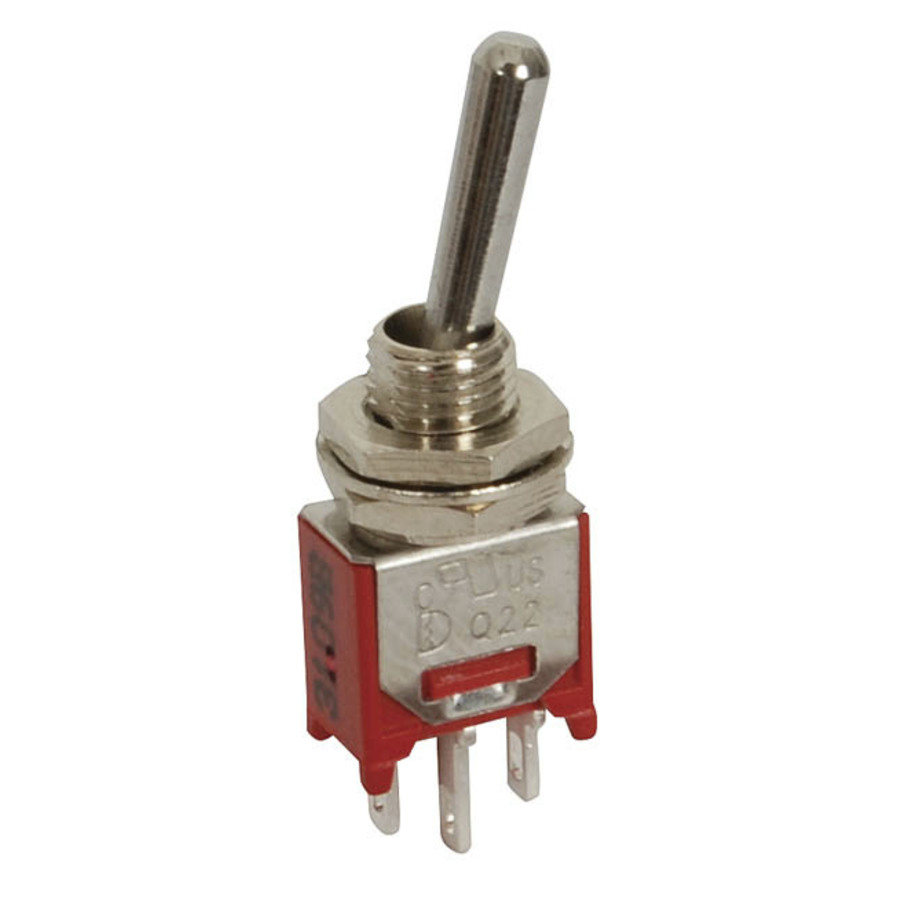

SPDT Sub-Miniature Toggle Switch - Solder Tag
SPDT Sub-Miniature Toggle Switch - Solder Tag

CAT. No. ST0300

SPDT Sub-Miniature Toggle Switch - Solder Tag
product image thumb

SPDT Sub-Miniature Toggle Switch - Solder Tag

$3.49
From our range of switches available in a variety of styles suitable for your specific purpose.
Available

Description

FEATURES:

SOLDER TAG - THREADED BUSH
Brackets indicate switch position(on - on)
OPERATING TEMPERATURE: -30 degrees - +85° Celsius
CONTACT RATING (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
CONTACT RATING (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
SWITCH MATERIALS CASE: Diallyl Phthalate (DAP) (UL94V-0)
TOGGLE HANDLE: Brass, chrome plated
BUSHING: Brass, nickel-plated
HOUSING: Stainless Steel
TERMINALS: Switch support components: Brass, electro-tin plated (for solderability)
CONTACTS: Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.


    Specifications

    Electromechanical Switch

    Cycle Life
    		 30000 cycles
    Dielectric Strength
    		 1000V
    Switch Connection
    		 Solder Tags
    Switch Type
    		 Toggle
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Actuator Width
    		 6mm
    Actuator Length
    		 8.13mm
    Contact Resistance
    		 20M?
    Insulation Resistance
    		 1000M?

    DC Voltage Rating

    DC Voltage
    		 28V

    DC Current Rating

    DC current rating
    		 3A

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 1A

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 0.8cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.001l
    Packaged Height
    		 0.5cm

    Product Availability

    Availability
    		 Stocked item
