4PDT Mini Toggle Switch
4PDT Mini Toggle Switch

CAT. No. ST0506

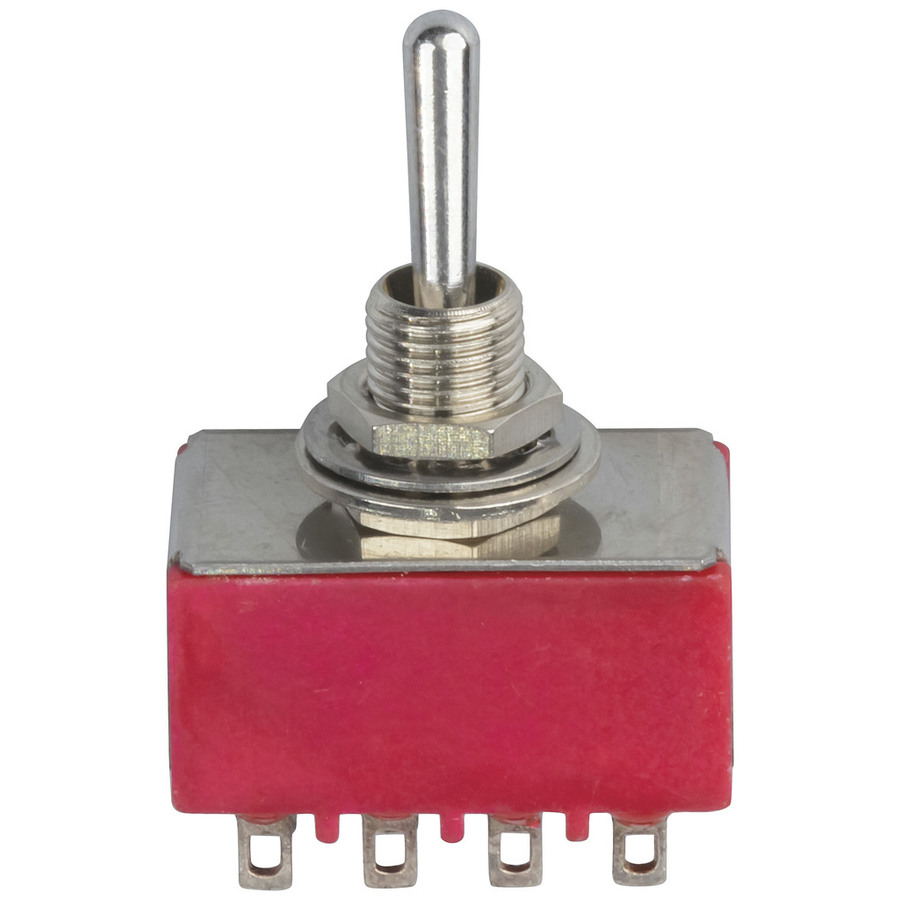

4PDT Mini Toggle Switch
product image thumb

4PDT Mini Toggle Switch

$8.95
From our range of switches available in a variety of styles suitable for your specific purpose.
Available

Description

4PDT miniatue toggle switch.

    Specifications

    Electromechanical Switch

    Cycle Life
    		 40000 cycles
    Dielectric Strength
    		 1000V
    Switch Type
    		 Toggle
    Poles / Contacts
    		 4 pole
    Throws / Positions
    		 1pos
    Actuator Width
    		 12.7mm
    Actuator Length
    		 21.59mm
    Contact Resistance
    		 10M?
    Insulation Resistance
    		 1000?

    Product Mounting

    Mounting Method
    		 Behind Panel

    DC Voltage Rating

    DC Voltage
    		 28V

    DC Current Rating

    DC current rating
    		 5A

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 2A

    Packaged Dimensions

    Packaged Length
    		 2.2cm
    Packaged Width
    		 1.2cm
    Packaged Weight
    		 0.009kg
    Packaged Volume
    		 0.00924l
    Packaged Height
    		 3.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    ST0506-dataSheetMain.pdf
