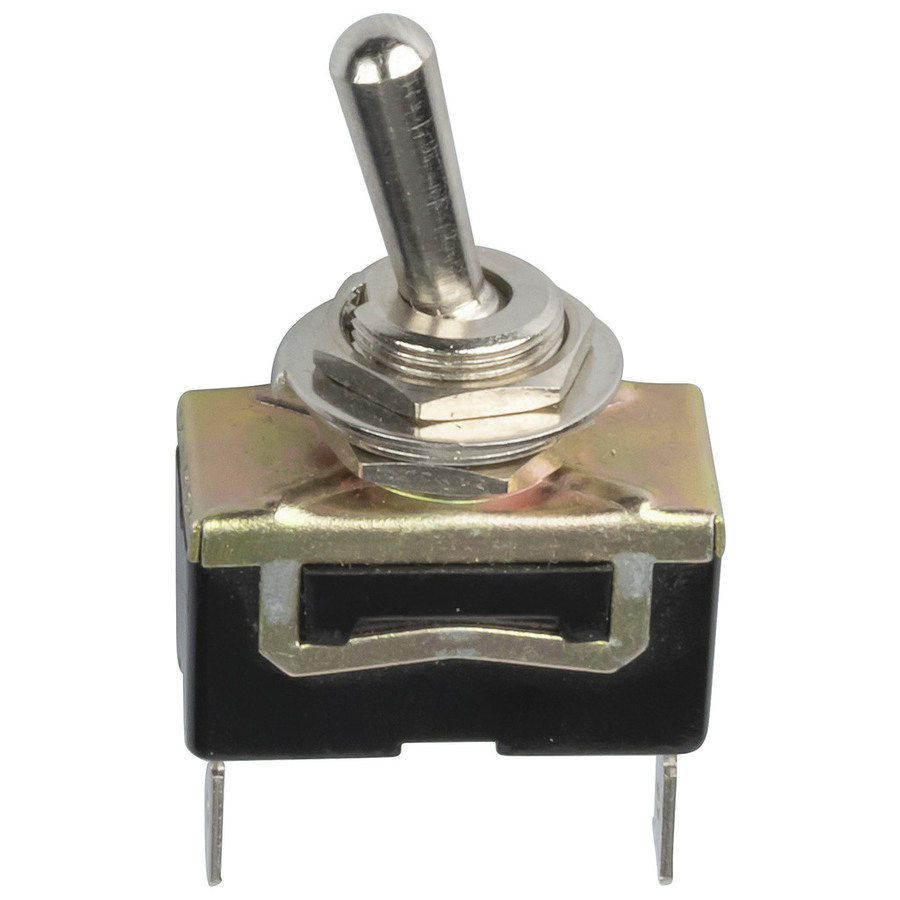

SPST 20A 12V Momentary Toggle Switch
SPST 20A 12V Momentary Toggle Switch

CAT. No. ST0577

SPST 20A 12V Momentary Toggle Switch
product image thumb

SPST 20A 12V Momentary Toggle Switch

$11.5
From our range of switches available in a variety of styles suitable for your specific purpose.
Available

Description

This switch is a SPST momentary action, spring return switch, which is ideal for launching missiles! Suits our ST-0578 Missile Switch Cover.

- ST-0577 Momentary
- ST-0579 Toggle


    Specifications

    Electromechanical Switch

    Cycle Life
    		 40000 cycles
    Switch Function
    		 Single Action Momentary
    Dielectric Strength
    		 1000V
    Switch Type
    		 Toggle
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Actuator Width
    		 13mm
    Actuator Length
    		 16mm
    Contact Resistance
    		 10M?
    Insulation Resistance
    		 1000M?

    Product Mounting

    Mounting Method
    		 Behind Panel

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 20A

    Product Dimensions

    Length
    		 29.5mm
    Width
    		 17mm

    Packaged Dimensions

    Packaged Length
    		 4.2cm
    Packaged Width
    		 2.8cm
    Packaged Weight
    		 0.022kg
    Packaged Volume
    		 0.019992l
    Packaged Height
    		 1.7cm

    Product Availability

    Availability
    		 Stocked item
