12V Illuminated Toggle RED
12V Illuminated Toggle RED

CAT. No. ST0580

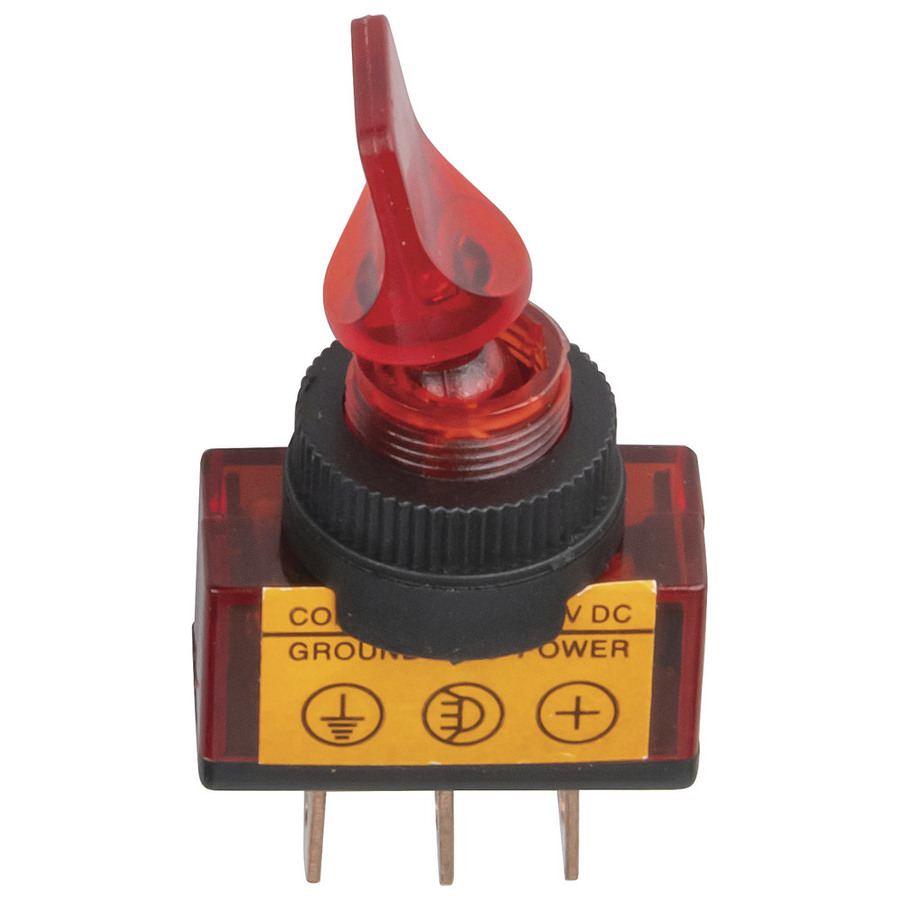

12V Illuminated Toggle RED
product image thumb

12V Illuminated Toggle RED

$4.95
From our range of switches available in a variety of styles suitable for your specific purpose.
Available

Description

Tell instantly if you have an accessory switched on in your vehicle. These illuminated duckbill switches are ideal for driving lights etc etc. Two colours available.


    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Toggle
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Red
    Actuator Width
    		 11mm
    Actuator Length
    		 17.5mm

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Round Mount Hole Diameter
    		 16mm
    Mounting Method
    		 Behind Panel

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 10A

    In-built Illumination

    Type
    		 Incandescent
    Illumination Colour
    		 Red
    Connection
    		 Spade Terminals
    Nominal Voltage
    		 12V

    Product Dimensions

    Length
    		 26mm
    Height
    		 55mm
    Width
    		 18mm

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.009kg
    Packaged Volume
    		 0.026l
    Packaged Height
    		 5.2cm

    Product Availability

    Availability
    		 Stocked item
