CAT. No. ST3278

1224VDC LED Strobe light with magneticpermanent base
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb
product image thumb

1224VDC LED Strobe light with magneticpermanent base

$179
High powered amber LED vehicle warning light for alerting other drivers or pedestrians - Multiple strobe and flash patterns - 12-24VDC operation suitable for cars and truck - Magnetic mounting or optional fixed mount
Available

Description

1 Year Warranty
LED

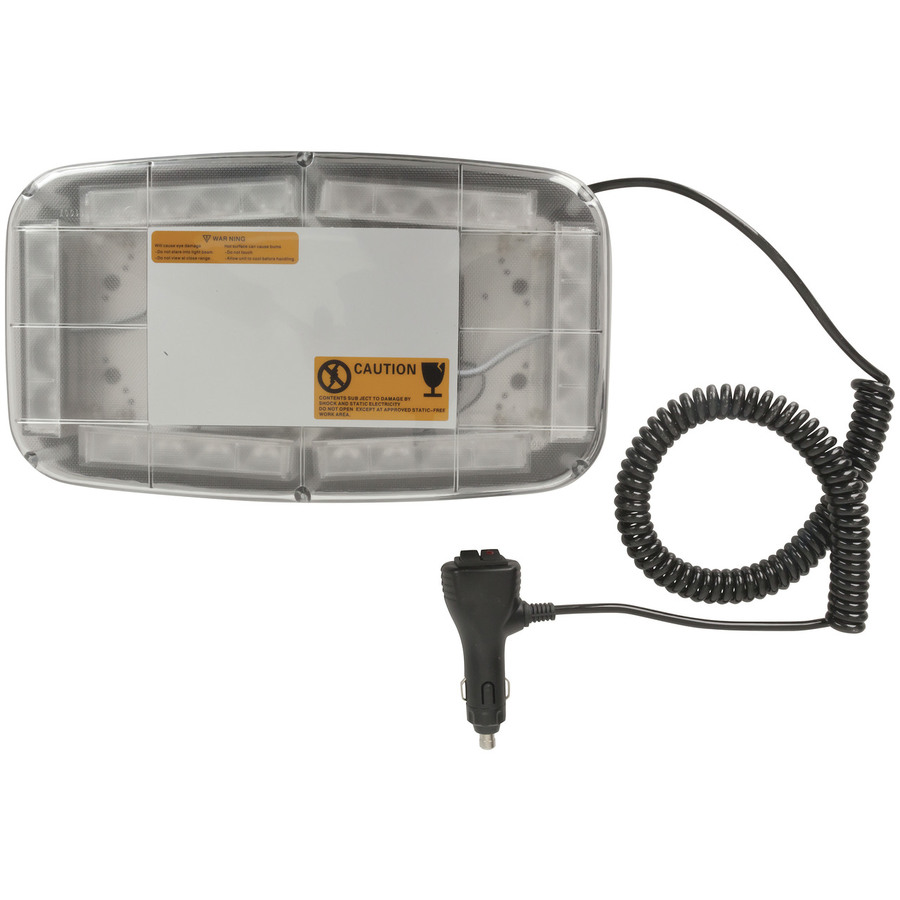

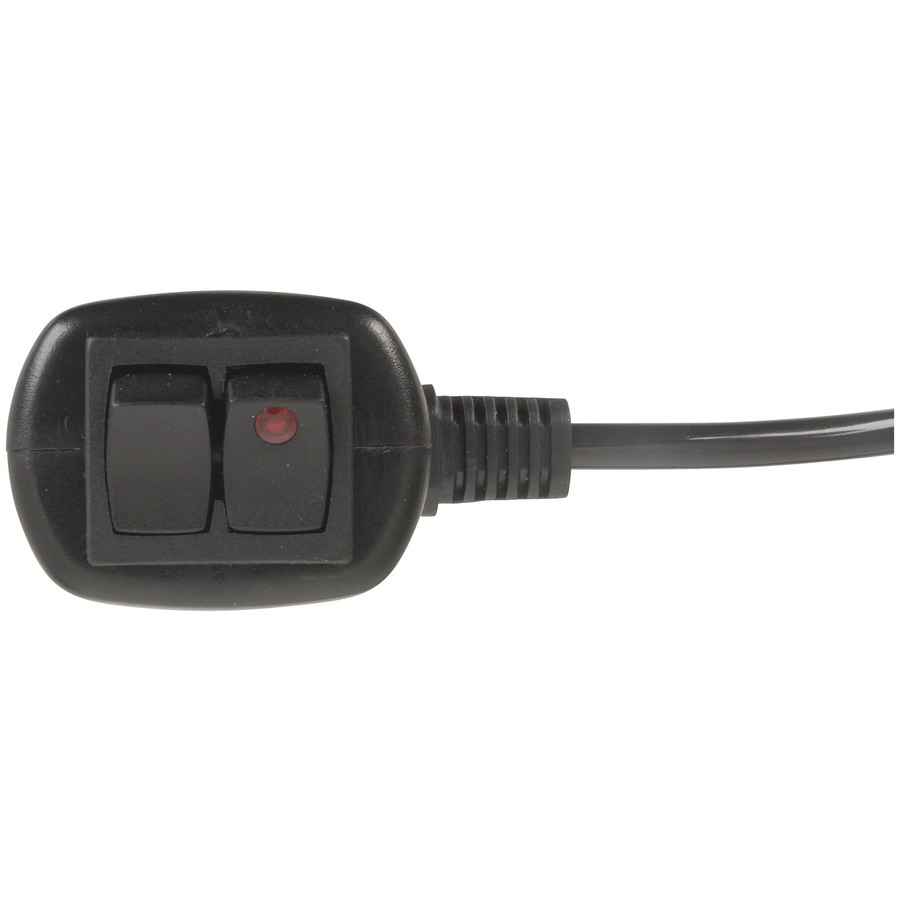

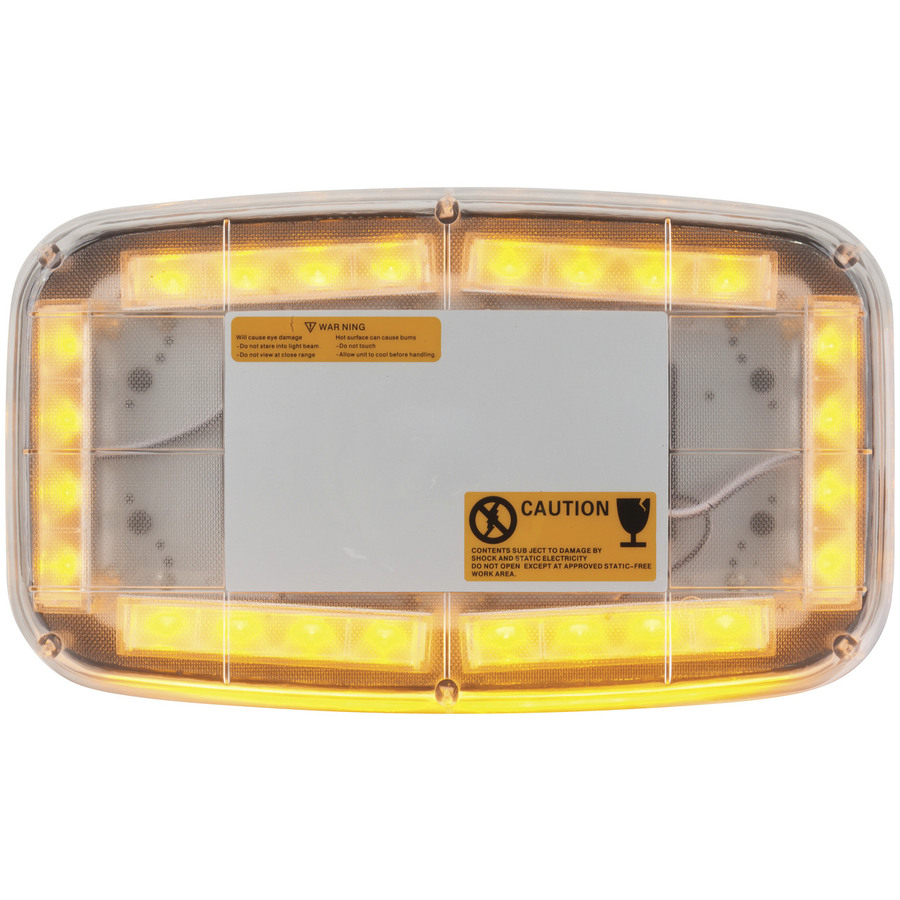

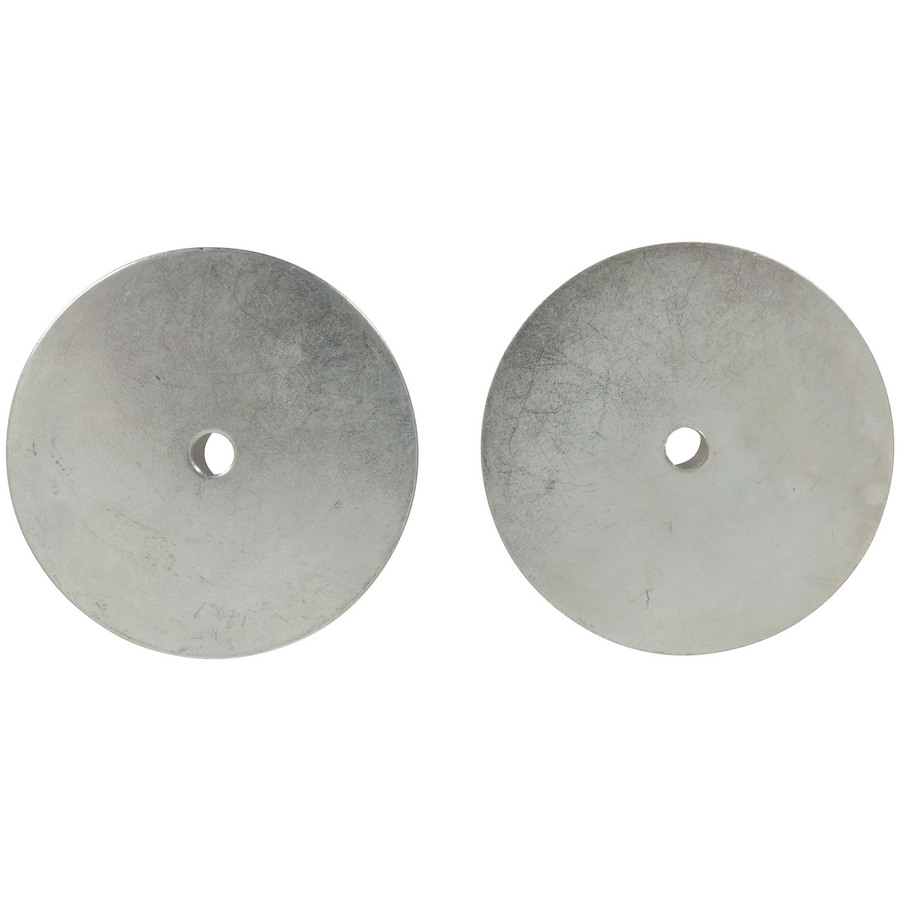

Keeping safe on a worksite, or attracting attention to your vehicle at an event - whatever your purpose - this multi-pattern strobe is versatile and couldn’t be easier to install. Two strong magnets hold it firmly in place on your roof and a curly-cable to cigarette lighter plug means you can power it without any special wiring. Inside the protective plastic case are 24 high power amber LEDs - 6 banks of 4LEDs each to be precise. There are 10 different display patterns, so you can select the most attention-grabbing one for your situation. Modes include clockwise / anticlockwise rotation, side to side, fade in/out, and more. Two rubber feet on the bottom of the unit cover powerful magnets and protect your paintwork. If you prefer to mount it permanently however, they unscrew for a clean, flush mount. The cigarette lighter plug incorporates an on/off switch with LED power indicator, as well as a switch for selecting the display mode. Of course, please make yourself aware of any local laws for using external lighting on vehicles, on and off public roads.

Flash Patterns:

There are 10 available flash patterns.

Flash Pattern Description
1 Rotating
2 Burst, Fade In-Out/Solid, Fade In-Out
3 Random
4 Burst, Alternating (Side to Side)
5 Burst, Alternating, Diagonal (Front to Back)
6 Burst, Dual Rotating
7 Burst Hold / Burst Side to Side
8 Burst Hold / Single Hold
9 Burst, Single Rotating
10 Burst, Single Rotating

Note: Press pattern button 0.5 seconds for next pattern.




    Specifications

    Product Dimensions


    Height
    62mm
    Width
    280mm
    Depth
    165mm

    Packaged Dimensions


    Packaged Length
    34.4cm
    Packaged Width
    19cm
    Packaged Weight
    1.22kg
    Packaged Volume
    5.75168l
    Packaged Height
    8.8cm

    Lighting Details


    LED Power
    1W
    LED Quantity
    24pc

    Vehicle Lighting


    Outdoor Light Type
    Emergency Beacon

    Vehicle or Vessel Powered


    Lead Length
    1m
    Required Voltage
    12V-24V
    Vehicle Connection
    Cigarette Lighter
    Lead Included

    Vehicle Mounting


    Mount Method
    Magnetic
    Removable
    Easily Removable
    Mount Location
    Roof

    Ingress Protection Rating


    IP Rating
    IP56
    Dust/Particle Ingress Protection
    5 - Dust protected, protected but some dust may enter
    Liquid/Moisture Ingress Protection
    6 - Powerful water jets

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months

    Downloads
