60°C Thermal Circuit BreakerSwitch

$9.25
Also referred to as a thermostat, this safety device will protect a circuit against overheating by opening at a targeted threshold. It closes again automatically once a specific lower temperature is reached. Rated to 60 degrees celcius.
Available

Description

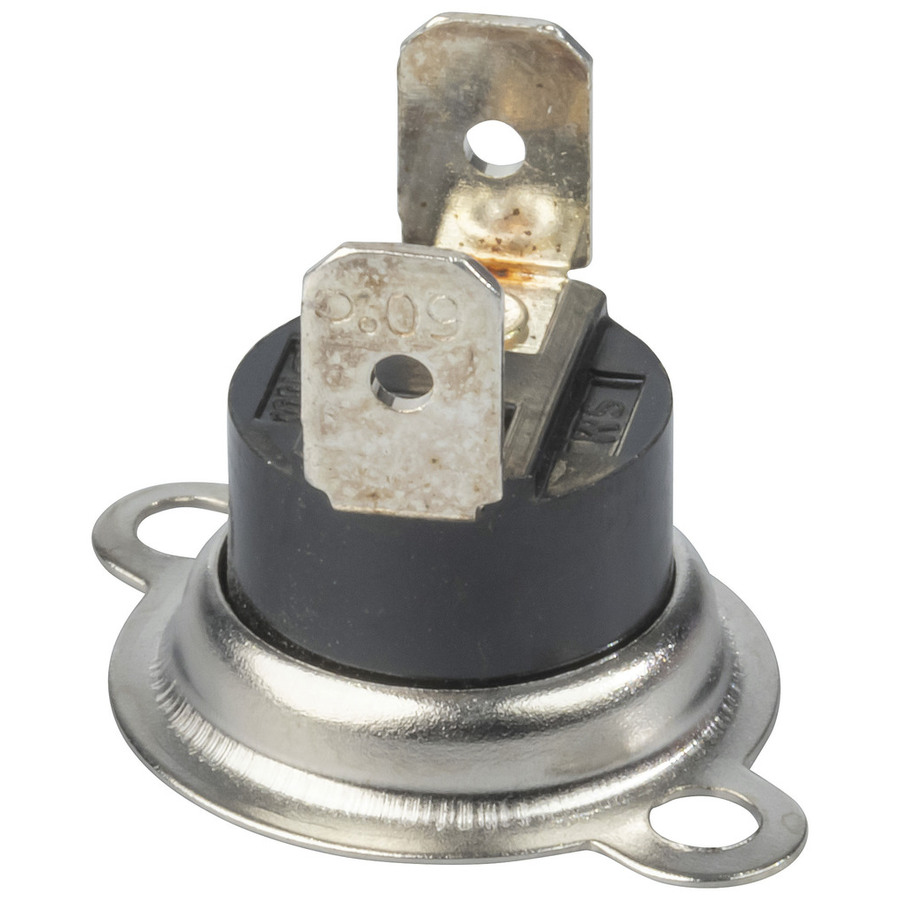

This phenolic-housed thermostat attaches to any metal surface which needs to be heat monitored. When the surface meets or exceeds a certain temperature the SPST bi-metalic element goes open circuit.

    Specifications

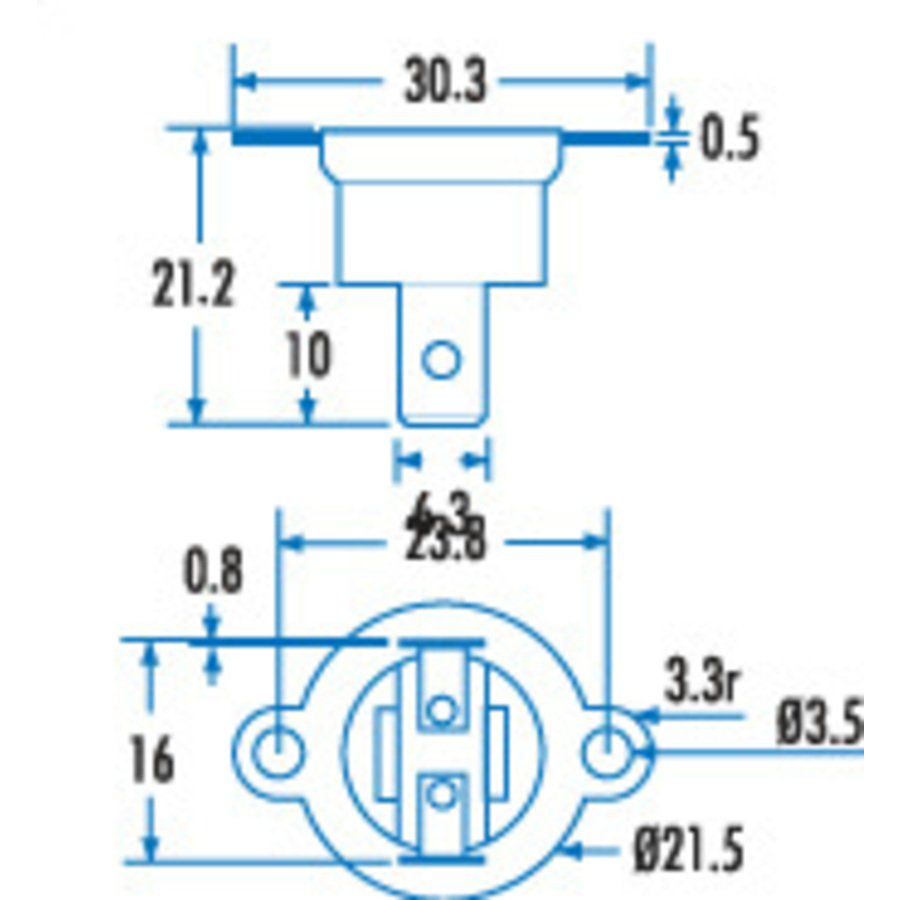

    Product Dimensions

    Height
    		 21.2mm
    Diameter
    		 30.3mm

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.012l
    Packaged Height
    		 2cm

    Thermal Switches and Fuses

    Type of thermal switch or fuse
    		 Thermal circuit breaker
    Normally open or normally closed
    		 Normally closed
    Thermal trip temperature
    		 60°C
    Thermal reset method
    		 Automatic
    Thermal reset temp
    		 40°C
    operation cycles
    		 50000, 100000, 30000
    operating tolerance
    		 +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC)
    reset differential
    		 10°C - 50°C
    contact endurance
    		 32VDC-100mA, 125VAC-10A, 250VAC-6A

    Product Availability

    Availability
    		 Stocked item
