Normally Open Thermostat Switch - 50 Degrees
Normally Open Thermostat Switch - 50 Degrees

CAT. No. ST3831

Normally Open Thermostat Switch - 50 Degrees
product image thumb

Normally Open Thermostat Switch - 50 Degrees

$7.5
This safety device works by activating a circuit when a high heat threshold is detected, thereby powering a cooling system or fan for example. It then deactivates that device upon sensing a different lower temperature. Rated to 50 degrees celcius.
Available

Description

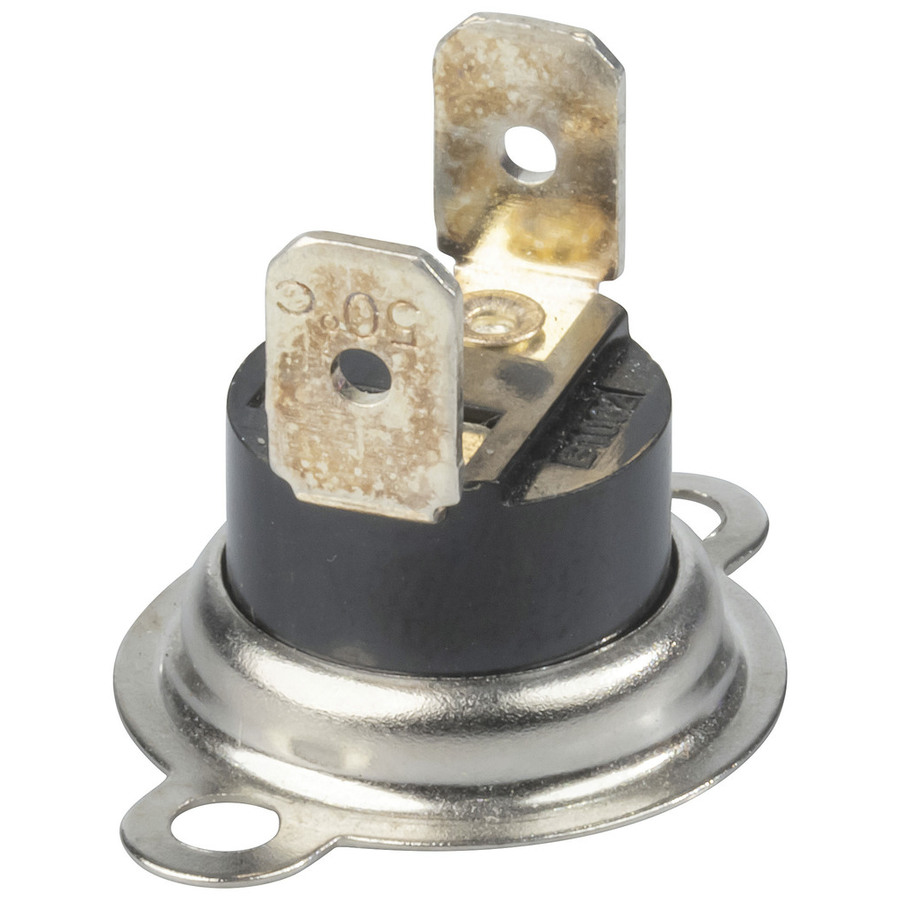

This phenolic-housed unit attaches to any metal surface which needs to be heat monitored. These thermostat switches have normally open contacts. They operate once the temperature reaches a specified limit and automatically reset to their original normally open state once the temperature drops below its rated temperature. These are suitable for power amplifier applications and other temperature sensitive devices where a cooling fan needs to be integrated to cool the device down. Mounting holes are provided, ideal for attachment to a heatsink or any metalic surface.

    Specifications

    Product Dimensions

    Height
    		 21.2mm
    Diameter
    		 30.3mm

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 21cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.1386l
    Packaged Height
    		 2.2cm

    Thermal Switches and Fuses

    Type of thermal switch or fuse
    		 Thermal circuit breaker
    Normally open or normally closed
    		 Normally open
    Thermal trip temperature
    		 50°C
    Thermal reset method
    		 Automatic
    operation cycles
    		 50000, 100000, 30000
    operating tolerance
    		 +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC)
    reset differential
    		 10°C - 50°C
    contact endurance
    		 32VDC-100mA, 125VAC-10A, 250VAC-6A

    Product Availability

    Availability
    		 Stocked item
