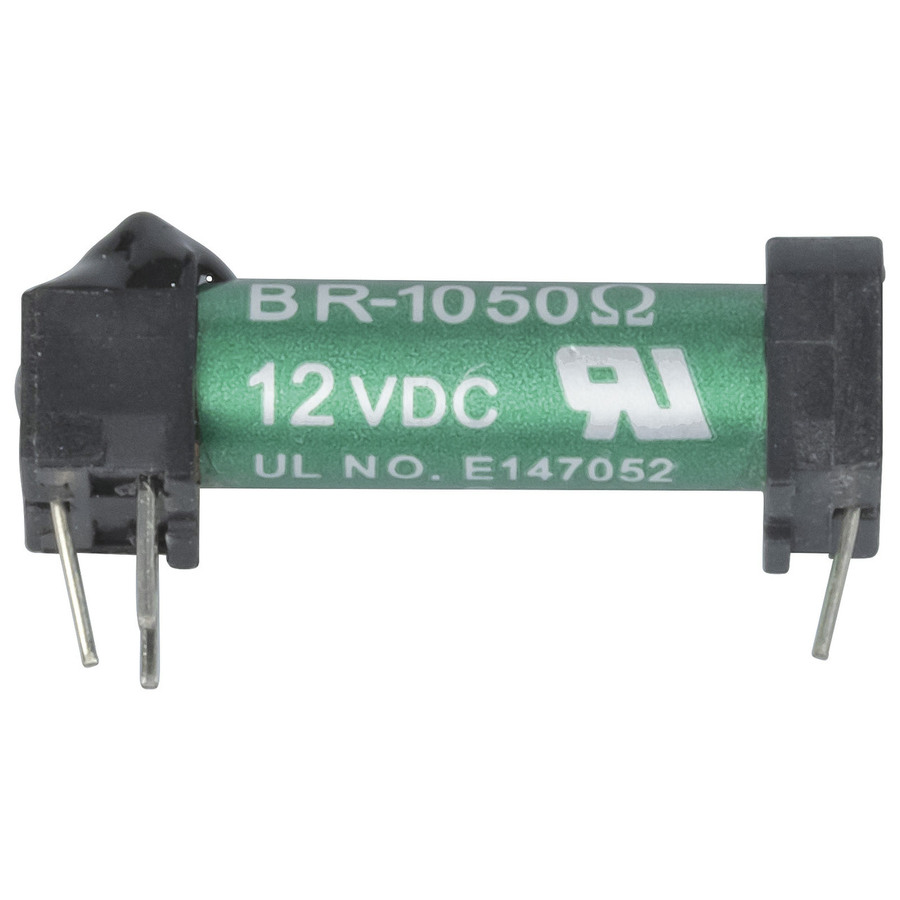

12V SPST Low Cost Reed Relay
12V SPST Low Cost Reed Relay
12V SPST Low Cost Reed Relay

CAT. No. SY4038

12V SPST Low Cost Reed Relay
product image thumb
product image thumb

12V SPST Low Cost Reed Relay

$3.95
Small and light weight.Specifications:- Contact form: SPST normally open- Coil Resistance: 1050ohms- Nom Volts: 12 - Pickup Voltage: 8.4V DC- Rated Cu...

Out of Stock

Description

Small and light weight.Specifications:- Contact form: SPST normally open- Coil Resistance: 1050ohms- Nom Volts: 12 - Pickup Voltage: 8.4V DC- Rated Current: 11.4mA - Allowable Voltage: 160%- Dropout Voltage: 1.2V DC - Carry Current = 500mA.- Power Consumption (W): 0.1 - Contact Rating: 1A- 12 VOLT

    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 11.4mA
    Coil Current
    		 11.4mA
    Nominal Voltage
    		 12V
    Device Type
    		 Reed Relay
    DC Contact Voltage
    		 12V
    Contact format
    		 SPST
    Coil Resistance
    		 1050?
    Power Consumption
    		 0.1W
    Pickup Voltage
    		 8.4V
    Dropout Voltage
    		 1.2V

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 11.4A

    Product Mounting

    Mounting Method
    		 PCB

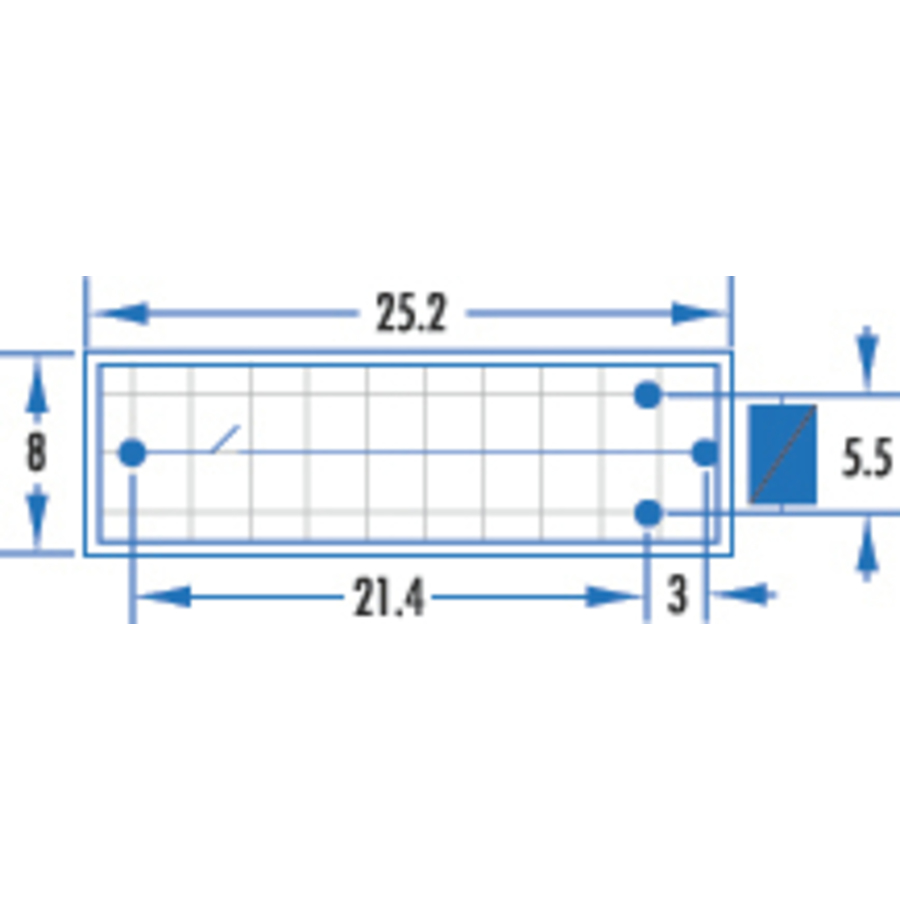

    Packaged Dimensions

    Packaged Length
    		 2.3cm
    Packaged Width
    		 0.7cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.001288l
    Packaged Height
    		 0.8cm

    Product Availability

    Availability
    		 Stocked item
