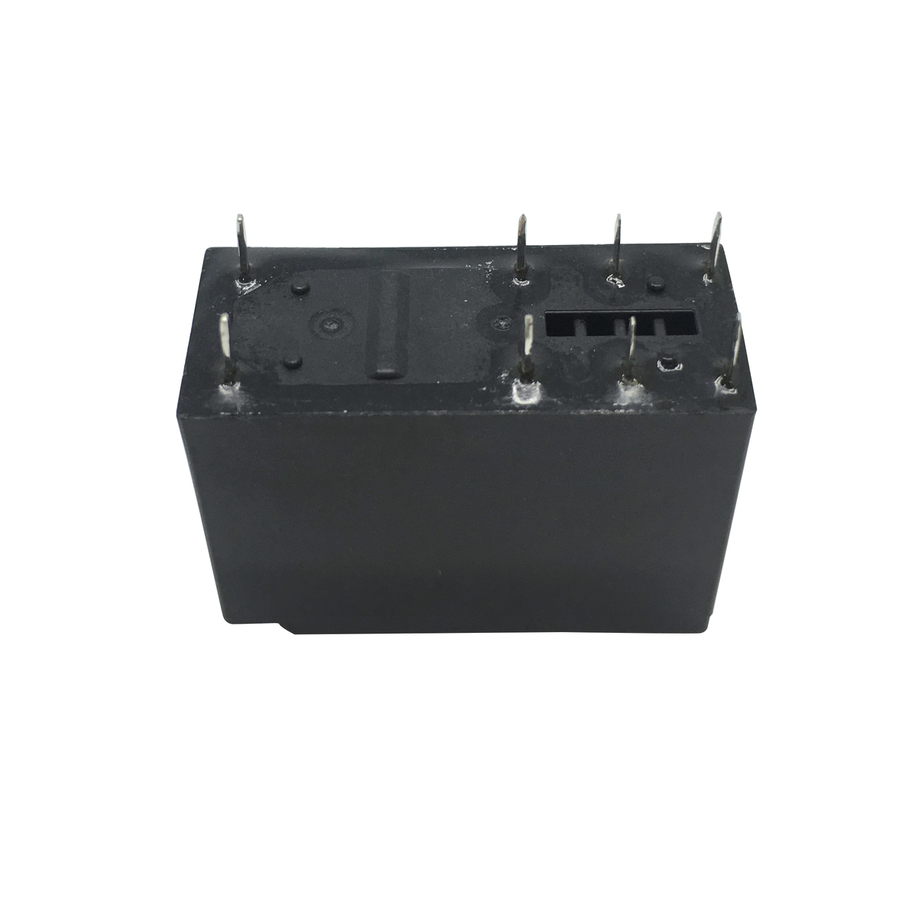

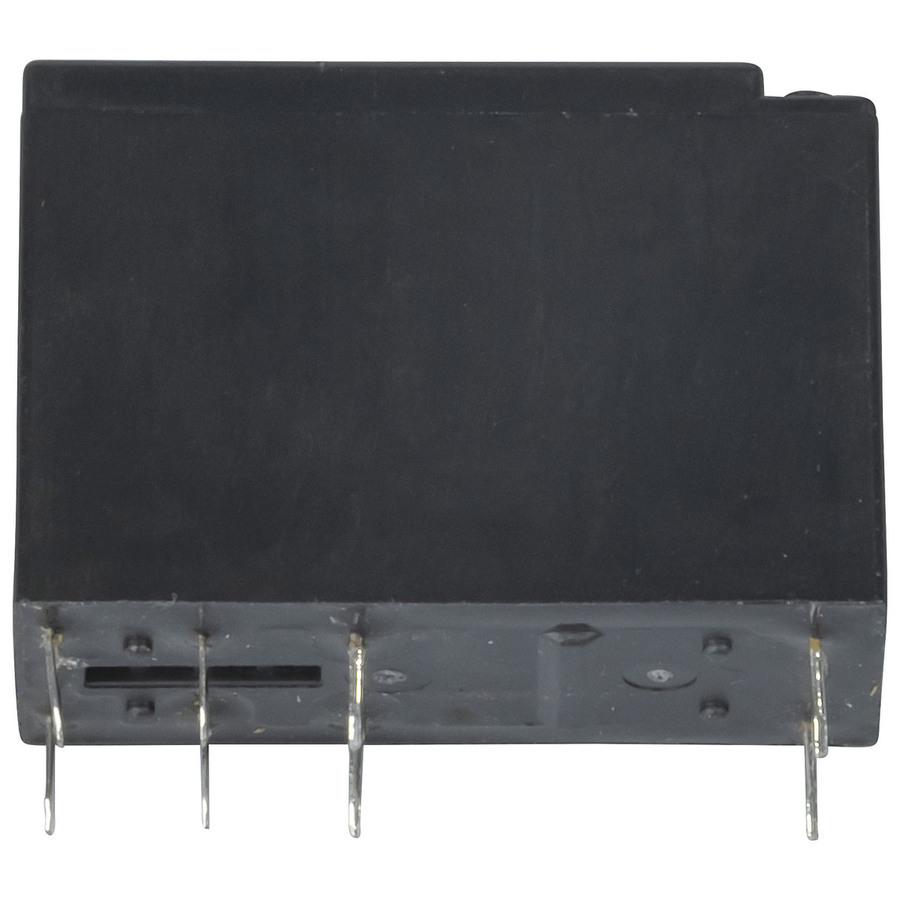

12V DPDT PC Mount Relay - JW Series

$9.95
DPDT- 12V DC. - Coil 285 ohms.- 2 x 5A @ 30V DC or 2 x 5A @ 240V AC contact rating. - Size: 29 x 12 x 29(H)mm...

Out of Stock

Description

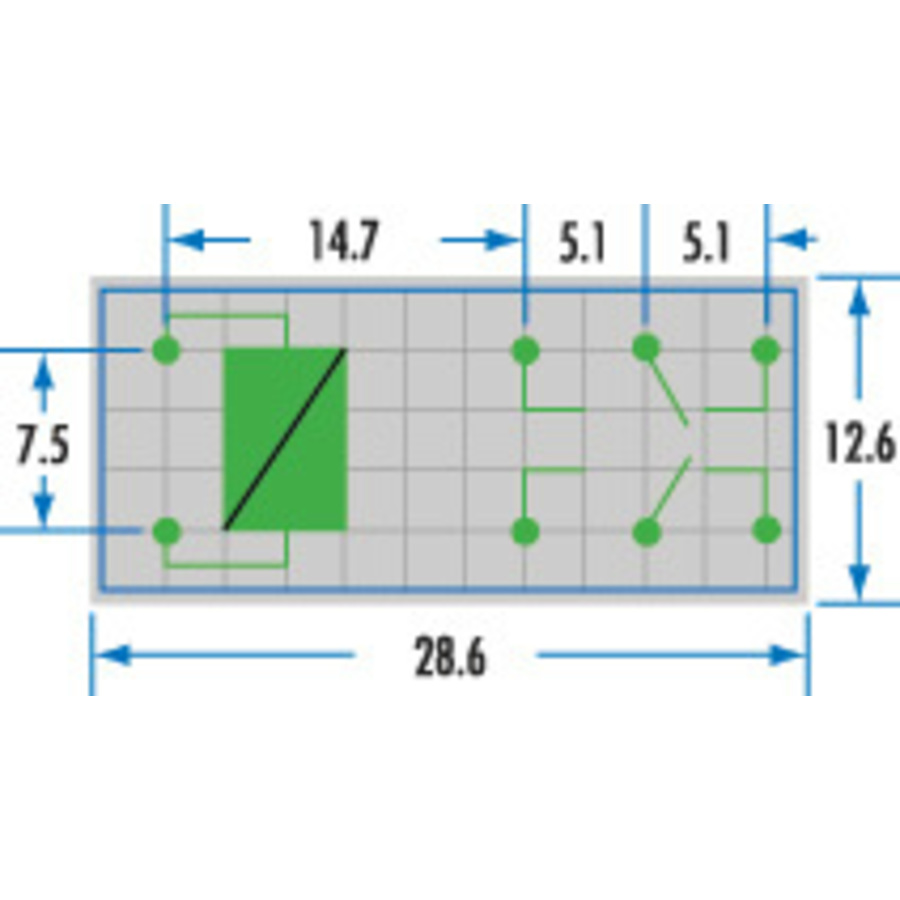

DPDT- 12V DC. - Coil 285 ohms.- 2 x 5A @ 30V DC or 2 x 5A @ 240V AC contact rating. - Size: 29 x 12 x 29(H)mm.

    Specifications

    Relay

    Input
    		 DC or AC Dual Mode
    DC Switching Current (Opening)
    		 5A
    AC Switching Current (Opening)
    		 5A
    DC Contact Voltage
    		 12V
    Contact format
    		 DPDT
    Coil Resistance
    		 270?
    AC Contact Voltage
    		 240V

    Power Source Details

    DC Voltage
    		 12V
    AC Current Draw
    		 5A
    DC Current Draw
    		 5A
    AC Voltage
    		 240V

    Product Mounting

    Mounting Method
    		 PCB

    Product Dimensions

    Height
    		 25mm
    Width
    		 29mm
    Depth
    		 12mm

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1.4cm
    Packaged Weight
    		 0.017kg
    Packaged Volume
    		 0.0105l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item
