24V DPDT PC Mount Relay - JW Series

$9.95
*24V DC*Coil 1100 ohm*2 x 5A @ 30VDC or 2 x 5A @ 250VAC contact rating*Size: 29(W) x 12(D) x 29(H)mm...

Out of Stock

Description

*24V DC
*Coil 1100 ohm
*2 x 5A @ 30VDC or 2 x 5A @ 250VAC contact rating
*Size: 29(W) x 12(D) x 29(H)mm

    Specifications

    Relay

    Input
    		 DC or AC Dual Mode
    DC Switching Current (Opening)
    		 5A
    AC Switching Current (Opening)
    		 5A
    DC Contact Voltage
    		 24V
    Contact format
    		 DPDT
    Coil Resistance
    		 1100?
    AC Contact Voltage
    		 240V

    Power Source Details

    DC Voltage
    		 24V
    AC Current Draw
    		 5A
    DC Current Draw
    		 5A
    AC Voltage
    		 240V

    Product Mounting

    Mounting Method
    		 PCB

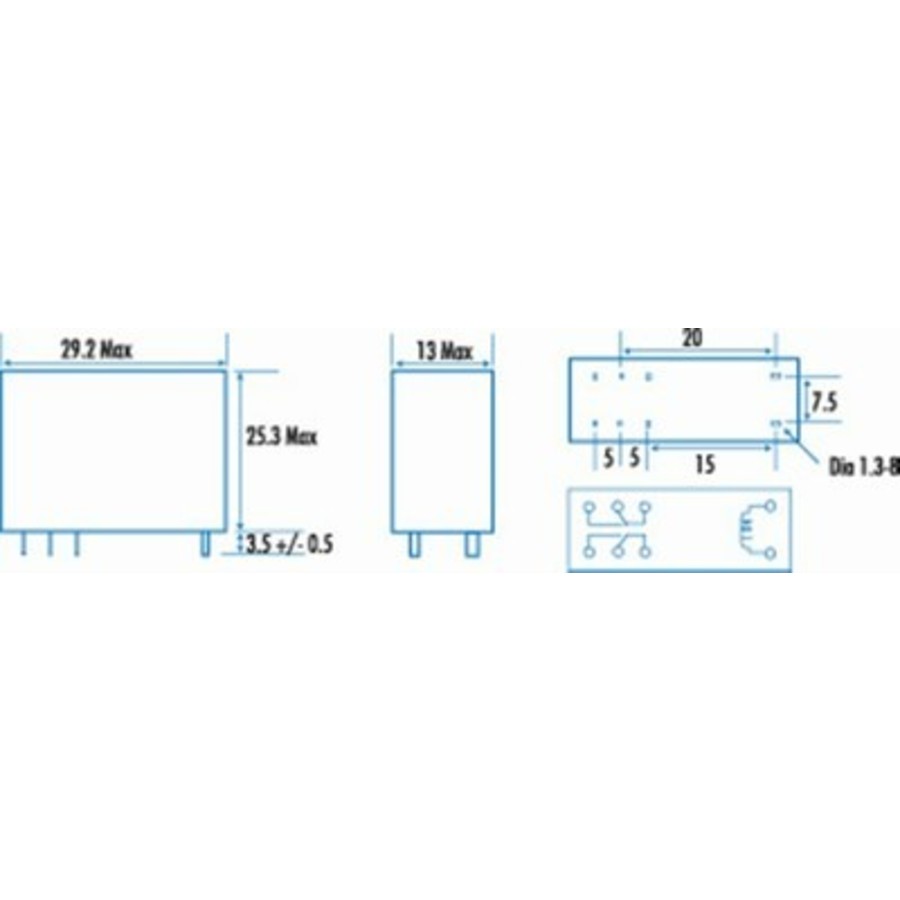

    Product Dimensions

    Height
    		 25mm
    Width
    		 29mm
    Depth
    		 12mm

    Packaged Dimensions

    Packaged Length
    		 2.8cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.018kg
    Packaged Volume
    		 0.0084l
    Packaged Height
    		 3cm

    Product Availability

    Availability
    		 Stocked item
