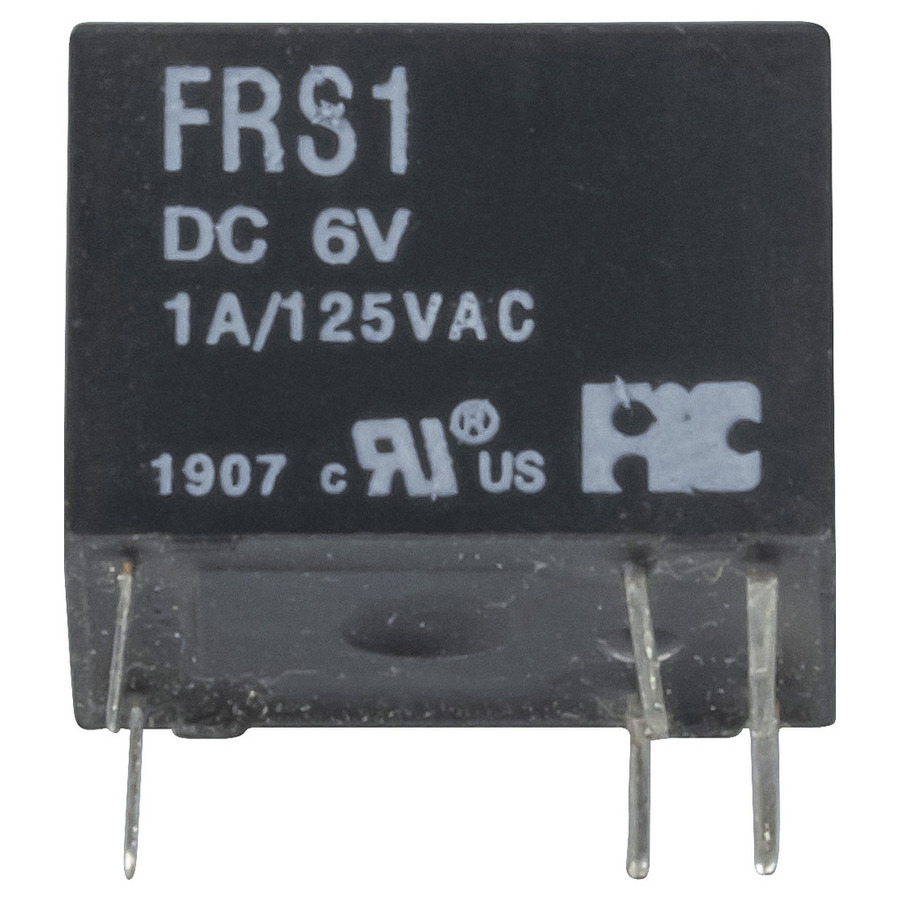

6V DIL SPDT Mini Relay
6V DIL SPDT Mini Relay
6V DIL SPDT Mini Relay

CAT. No. SY4058

6V DIL SPDT Mini Relay
product image thumb
product image thumb

6V DIL SPDT Mini Relay

$7.95
- Extra low profile. 6V DC bobbin- 1A contact rating.- 100 ohm coil resistance- SPDT.- 0.5 amp at 120V AC- Size 15 x 11 x 11(H)mm...
Available

Description

Low profilem, 6V DC bobbin relay

    Specifications

    Relay

    Input
    		 AC
    AC Switching Current (Opening)
    		 1A
    Device Type
    		 Standard Coil Relay
    Contact format
    		 SPDT
    Coil Resistance
    		 100?
    AC Contact Voltage
    		 125V

    Power Source Details

    DC Voltage
    		 6V
    AC Current Draw
    		 1A
    DC Current Draw
    		 1A
    AC Voltage
    		 125V

    Product Mounting

    Mounting Method
    		 PCB

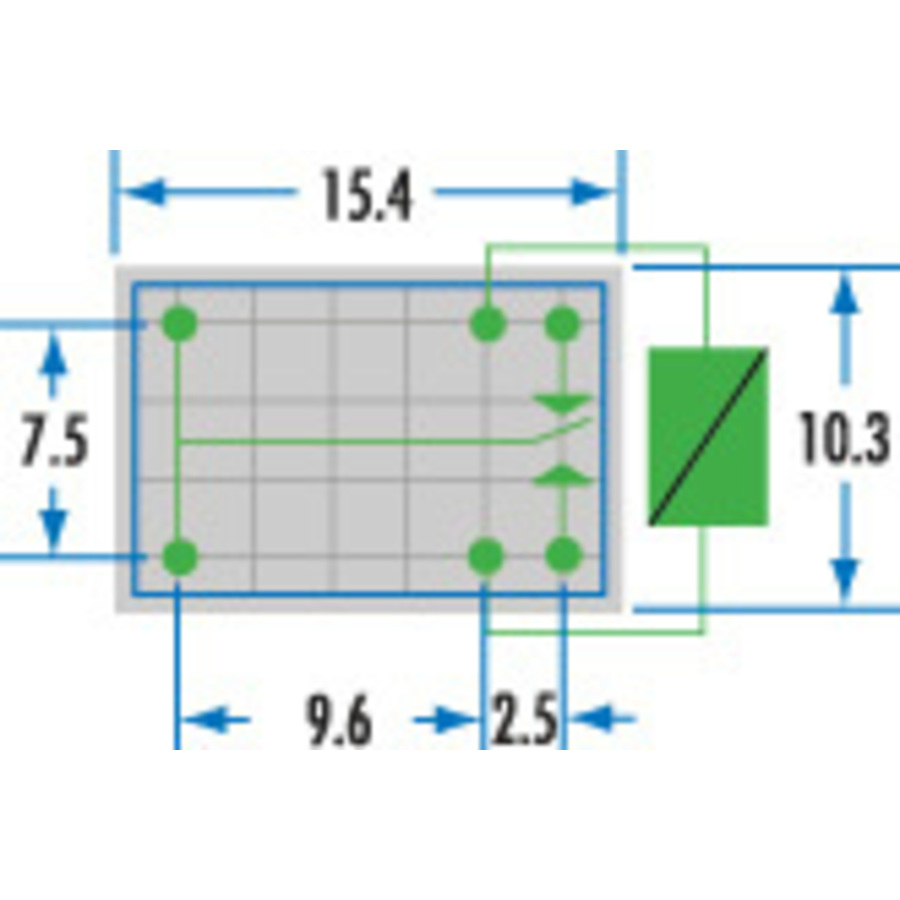

    Product Dimensions

    Height
    		 11mm
    Width
    		 15mm
    Depth
    		 11mm

    Packaged Dimensions

    Packaged Length
    		 1.5cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.00225l
    Packaged Height
    		 1.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4058-dataSheetMain.pdf
