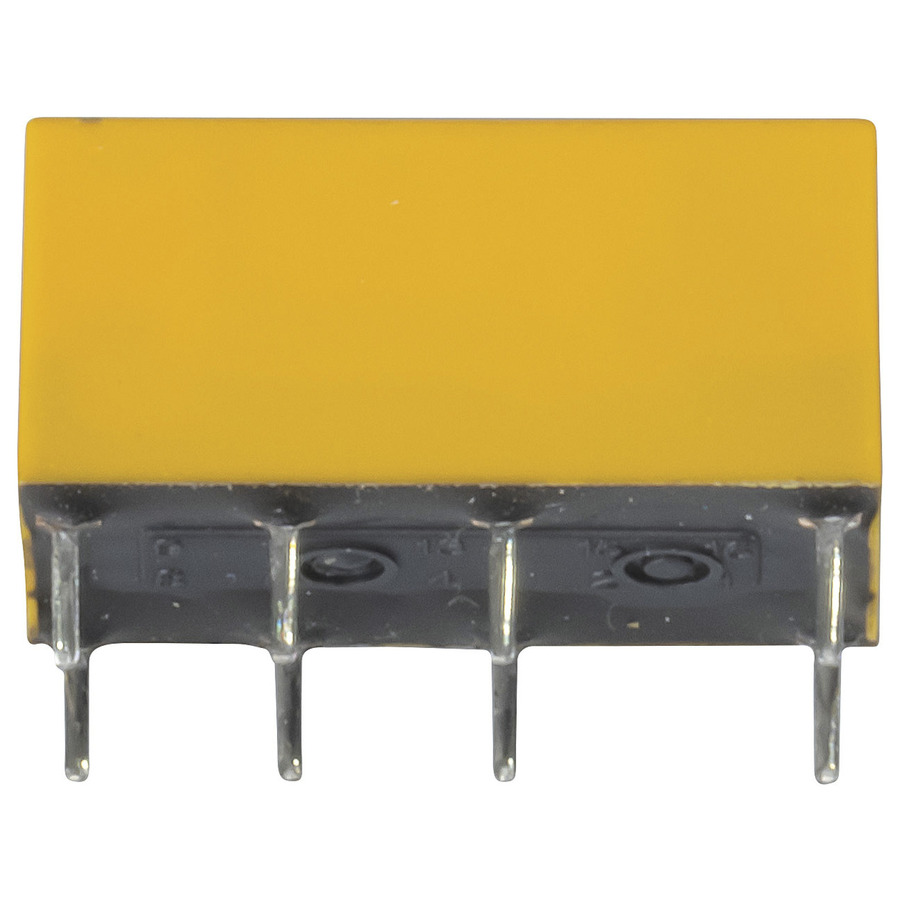

12V DPDT DIL Mini Relay
12V DPDT DIL Mini Relay

CAT. No. SY4059

12V DPDT DIL Mini Relay
product image thumb

12V DPDT DIL Mini Relay

$9.95
- 12 volt DPDT relay.- High sensitivity 200mW pickup power- 12V DC coil.- Coil resistance 360.- Maximum switching power 60W 125VA.- Size 20x10x12(H)mm...
Available

Description

12V DPDT relay DS2E-S-DC12V type
High sensitivity, 200mW pick up power.
Important: Coil is polarised - see datasheet for details and contact ratings.

    Specifications

    Relay

    Input
    		 DC
    Nominal Voltage
    		 12V
    Device Type
    		 Standard Coil Relay
    DC Contact Voltage
    		 12V
    Contact format
    		 DPDT
    Coil Resistance
    		 720?

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 5A

    Power Rating

    Continuous Power
    		 200mW
    Maximum Power
    		 60W

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.005kg
    Packaged Volume
    		 0.003l
    Packaged Height
    		 1.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4059-dataSheetMain.pdf
