12V DIL Latching Mini Relay
12V DIL Latching Mini Relay
12V DIL Latching Mini Relay

CAT. No. SY4060

12V DIL Latching Mini Relay
product image thumb
product image thumb

12V DIL Latching Mini Relay

$12.95
DIP style - will plug into 16 pin IC socket. Low profile mini 12V 2 coil latching relay. Highly sensitive - 180mW nominal power consumption.Specificat...
Available

Description

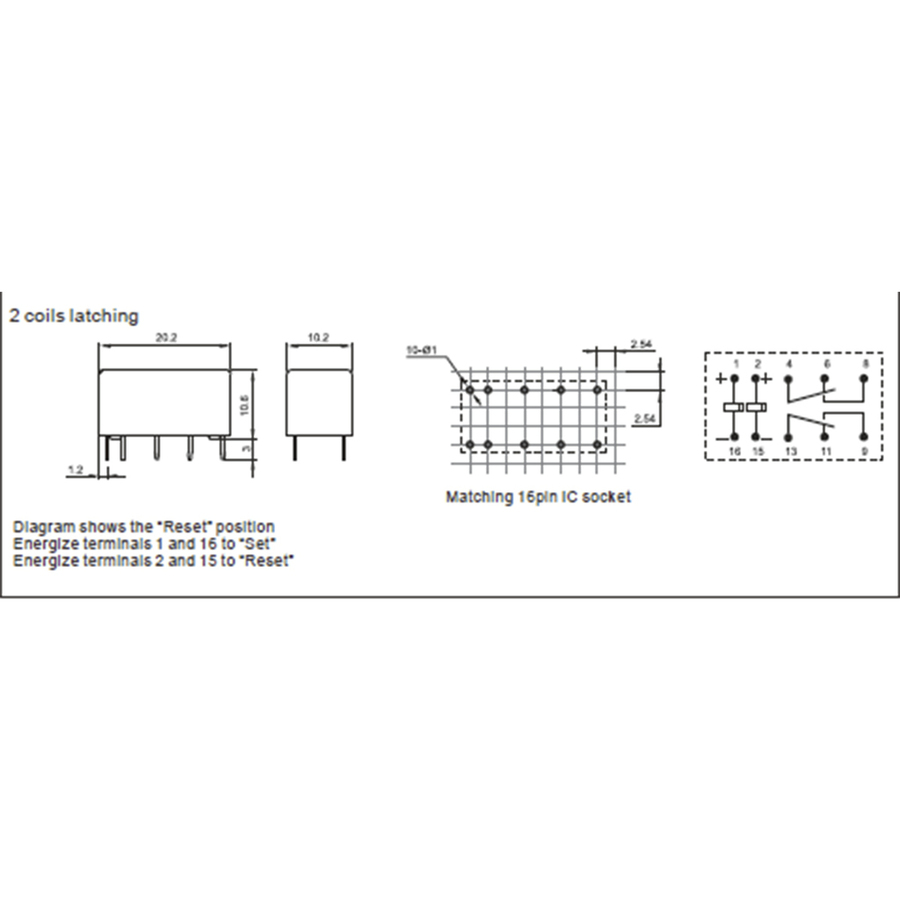

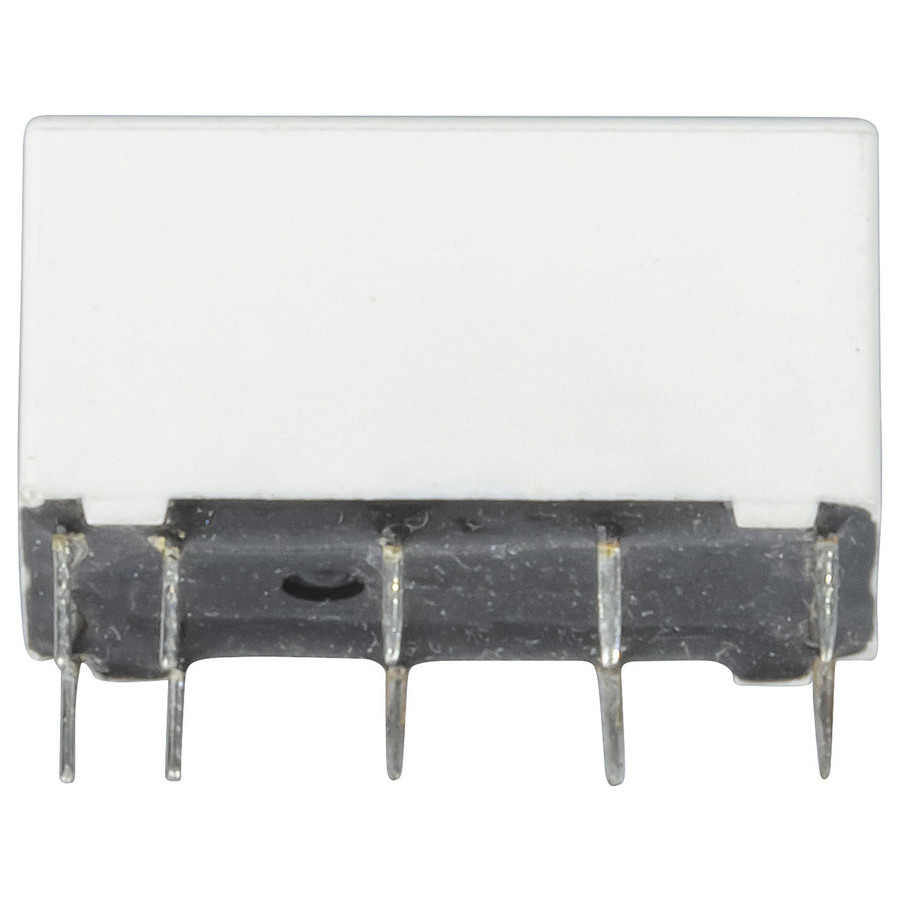

DIP style - will plug into 16 pin IC socket. Low profile mini 12V 2 coil latching relay. Highly sensitive - 180mW nominal power consumption.

    Specifications

    Relay

    Input
    		 DC
    Latching
    Nominal Voltage
    		 12V
    DC Contact Voltage
    		 220V
    Contact format
    		 DPDT
    AC Contact Voltage
    		 250V

    Power Source Details

    DC Voltage
    		 12V
    AC Current Draw
    		 1A
    DC Current Draw
    		 2A
    AC Voltage
    		 250V

    Power Rating

    Maximum Power
    		 60W

    Product Dimensions

    Height
    		 10mm
    Width
    		 20mm
    Depth
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 2cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.0045kg
    Packaged Volume
    		 0.0026l
    Packaged Height
    		 1.3cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4060-dataSheetMain.pdf
