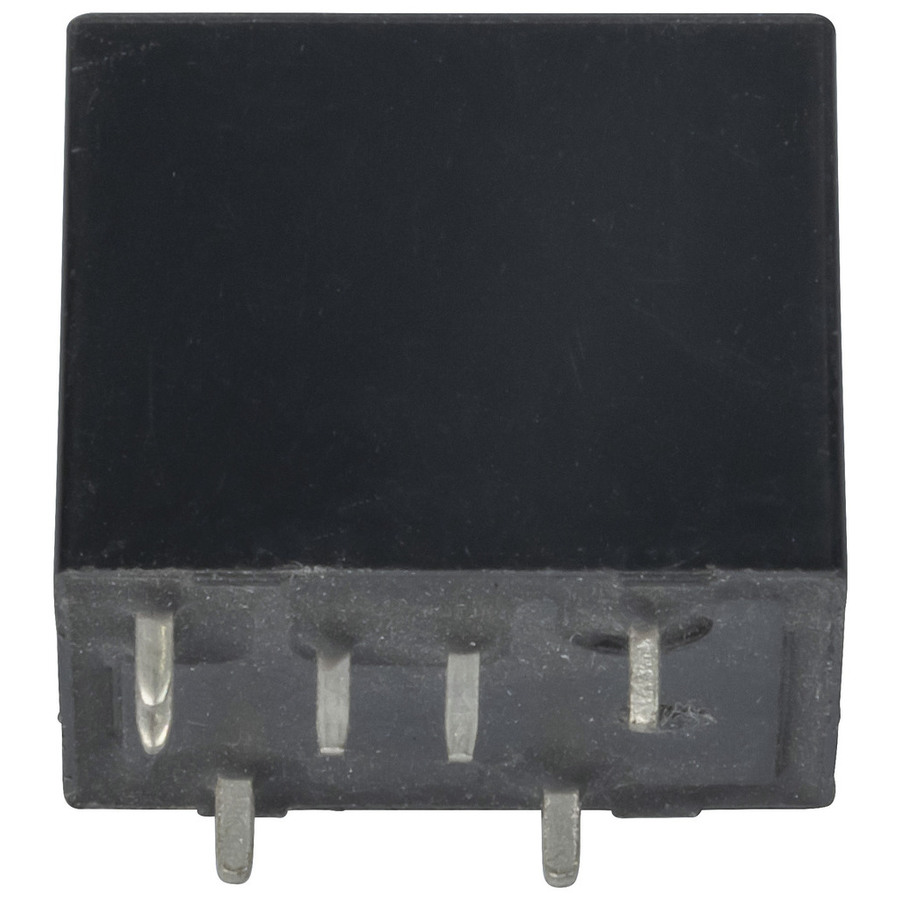

30 Amp SPDT Relay - Standard Size
30 Amp SPDT Relay - Standard Size
30 Amp SPDT Relay - Standard Size

CAT. No. SY4072

30 Amp SPDT Relay - Standard Size
product image thumb
product image thumb

30 Amp SPDT Relay - Standard Size

$7.95
PCB version of standard 30A horn type relay.Whilst designed for auto horns, this relay is ideal for any high current application i.e. burglar alarms, ...
Available

Description

PCB version of standard 30A horn type relay.
Whilst designed for auto horns, this relay is ideal for any high current application i.e. burglar alarms, ignition cutout, transmitters, car spotlights etc.


    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 30A
    Nominal Voltage
    		 12V
    Device Type
    		 Horn Relay
    DC Contact Voltage
    		 12V
    Contact format
    		 SPDT

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 40A

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 2.5cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.017kg
    Packaged Volume
    		 0.01l
    Packaged Height
    		 2cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SY4072-dataSheetMain.pdf
