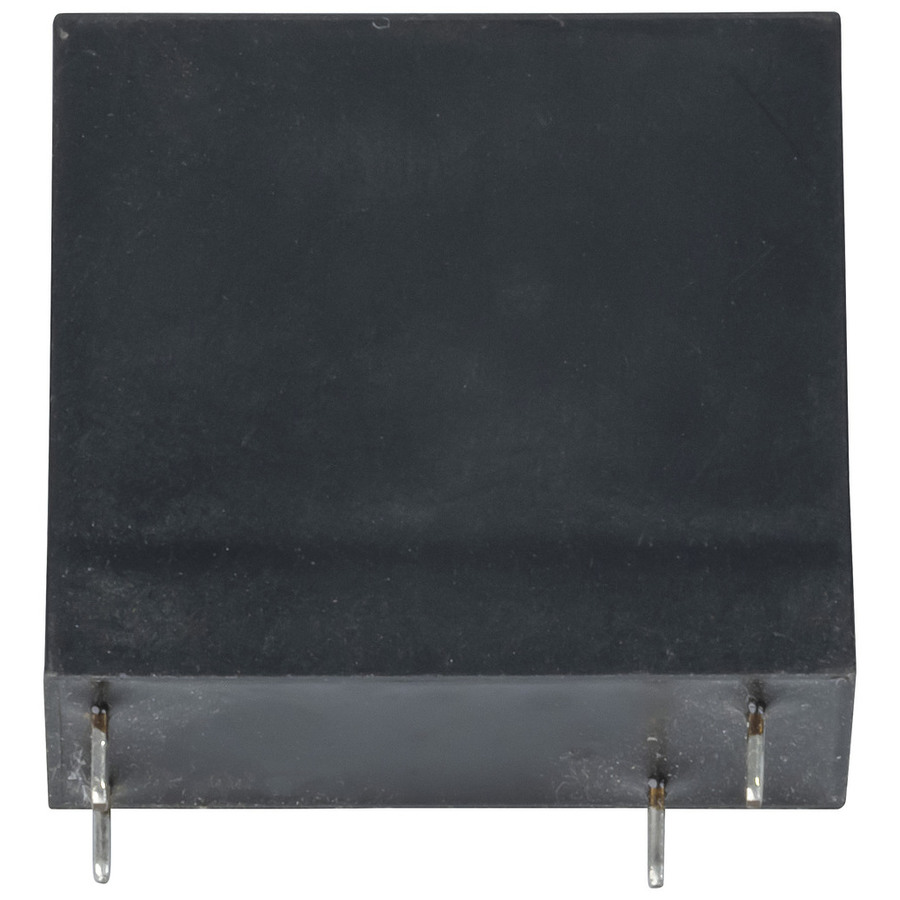

PCB Mount Solid State Relay 12V
PCB Mount Solid State Relay 12V

CAT. No. SY4093

PCB Mount Solid State Relay 12V
product image thumb

PCB Mount Solid State Relay 12V

$16.25
Low profile PCB mounting solid state relays with LED input status indication. Suitable for applications such as I/O interfaces and programmable logic ...
Available

Description

Low profile PCB mounting solid state relays with LED input status indication. Suitable for applications such as I/O interfaces and programmable logic controllers.
Features:
Control voltage range:9.6 - 14.4VDC
Max. input current: 20mA
Load voltage: 3 - 125VDC
Load current: 0.01 - 2A

Four types available:
SY-4092: PCB Mount Solid State Relay 5V
SY-4093: PCB Mount Solid State Relay 12V
SY-4096: PCB Mount Solid State Relay 12V Zero Crossing Turn On
SY-4097: PCB Mount Solid State Relay 12V Random Turn On

Handy Tip Solid state relays

Solid state relays are particularly useful when only low switching currents are available, such as those presented by CMOS or TTL circuits. Optically isolated for optimum safety, these relays use solid-state components rather than mechanical switches. AC types offer safe and easy switching of 230V mains.

    Specifications

    Relay

    Input
    		 DC
    DC Switching Current (Opening)
    		 20mA
    Device Type
    		 Solid State Relay
    DC Contact Voltage
    		 3V-125V

    Power Source Details

    DC Voltage
    		 12V
    DC Current Draw
    		 2A

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 3cm
    Packaged Weight
    		 0.017kg
    Packaged Volume
    		 0.009l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

      Articles

    SY4093-dataSheetMain.pdf
