CAT. No. TS1648

ESD Safe SolderDesolder Rework Station
product image thumb
product image thumb
product image thumb

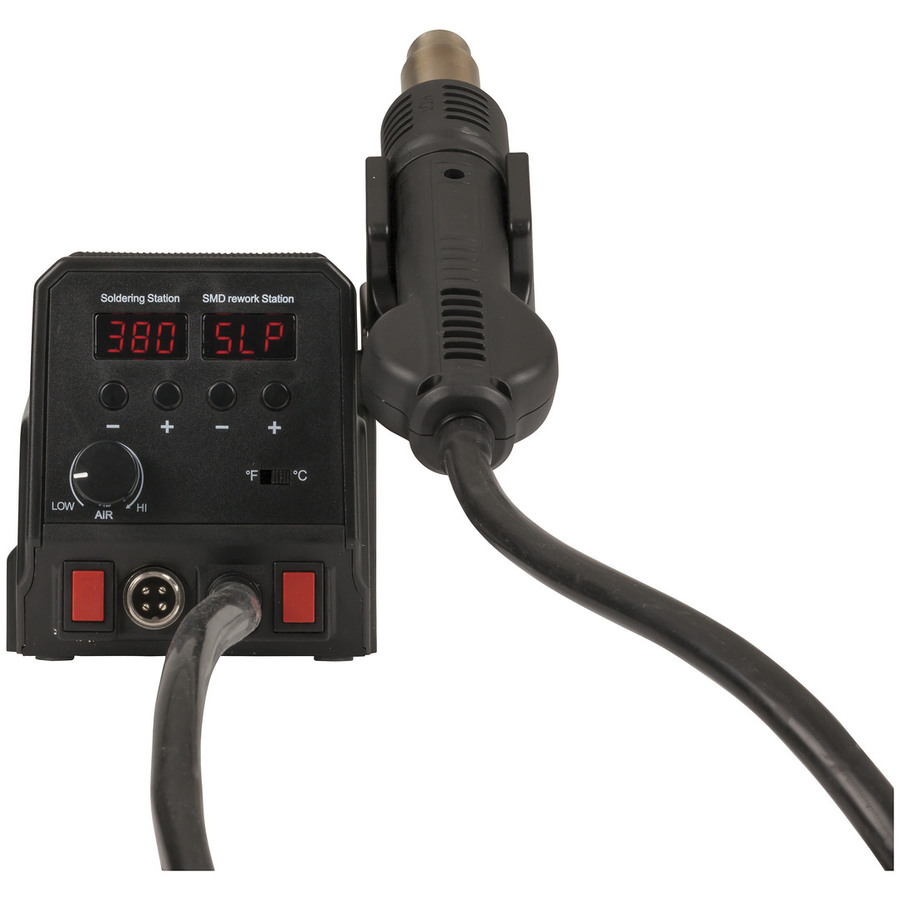

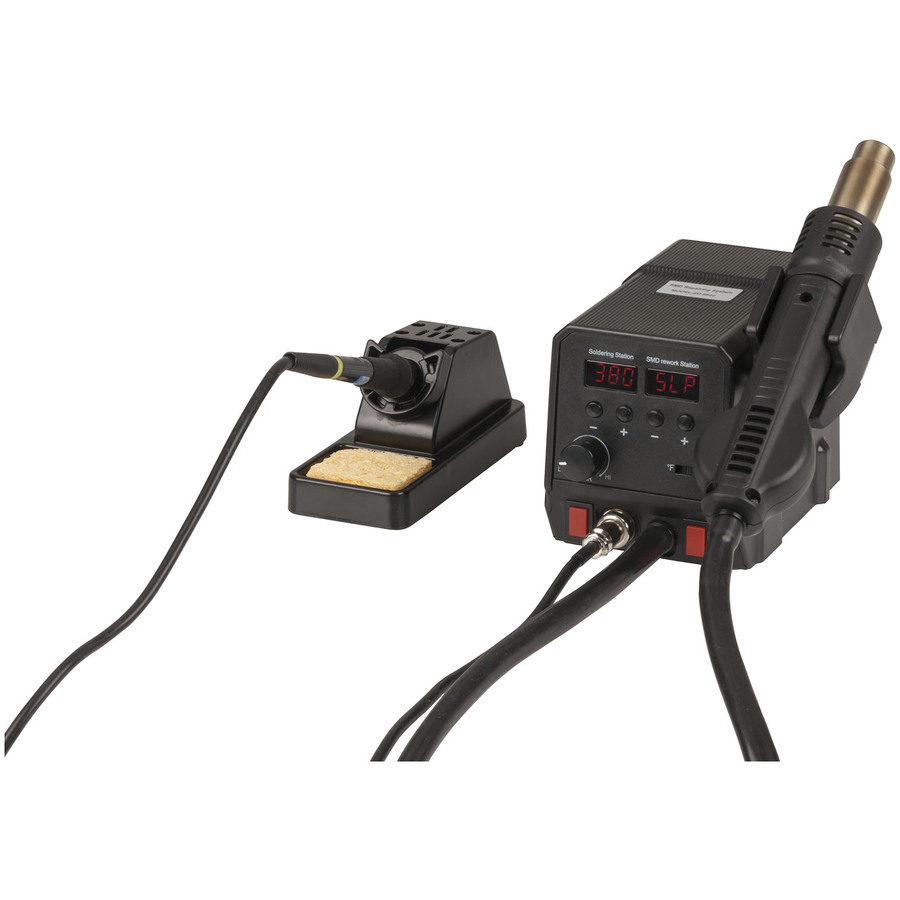

ESD Safe SolderDesolder Rework Station

$379
Complete solder/desolder station for professional and hobbiest use. - innovative heater and sensor - quick heat-up

Out of Stock

Description

Complete solder/desolder station for professional and hobbiest use. Designed for soldering and desoldering all types of surface mounted IC, PCB, or components, and features an innovative heater and sensor that provides a quick heat-up and rapid temperature recovery. The unit will immediately enter into Working Mode when you pick up the handle, and return to Standby Mode when you put the handle back into the holder. The control unit has two LED displays with controls to the set temperature and the actual tip or nozzle temperature in Celsius and Fahrenheit. The soldering/rework functions can be operated independently of each other. The heat gun can be calibrated from 3L/min to 24L/min and is supplied with 3 extra heat-gun attachments for different size components and jobs. Spare soldering iron tips are available separately.

Features:
- 2-in-1 Rework and Soldering Station
- 60W Soldering Pencil and 300W Rework Blower
- Dual digital display to show precise temperature
- Adjustable temperature with 1 degree increments
- Standby Mode

Spares:
- Soldering Iron Pencil (TS1641)

    Specifications

    Soldering Station


    Temp selection method
    Push button
    Temperature display
    LED
    Pencil Voltage
    24V

    Soldering Iron


    Soldering Power Rating
    60W
    Temperature
    50°C-480°C
    Temperature Regulated
    Soldering iron type
    Soldering Station
    Special Functions
    Hot Air Blower
    ESD Iron

    Product Dimensions


    Length
    155mm
    Height
    125mm
    Width
    110mm
    Weight
    6kg

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    27.7cm
    Packaged Width
    21.5cm
    Packaged Weight
    2.728kg
    Packaged Volume
    7.98037l
    Packaged Height
    13.4cm
    Warranty: 12 Months
