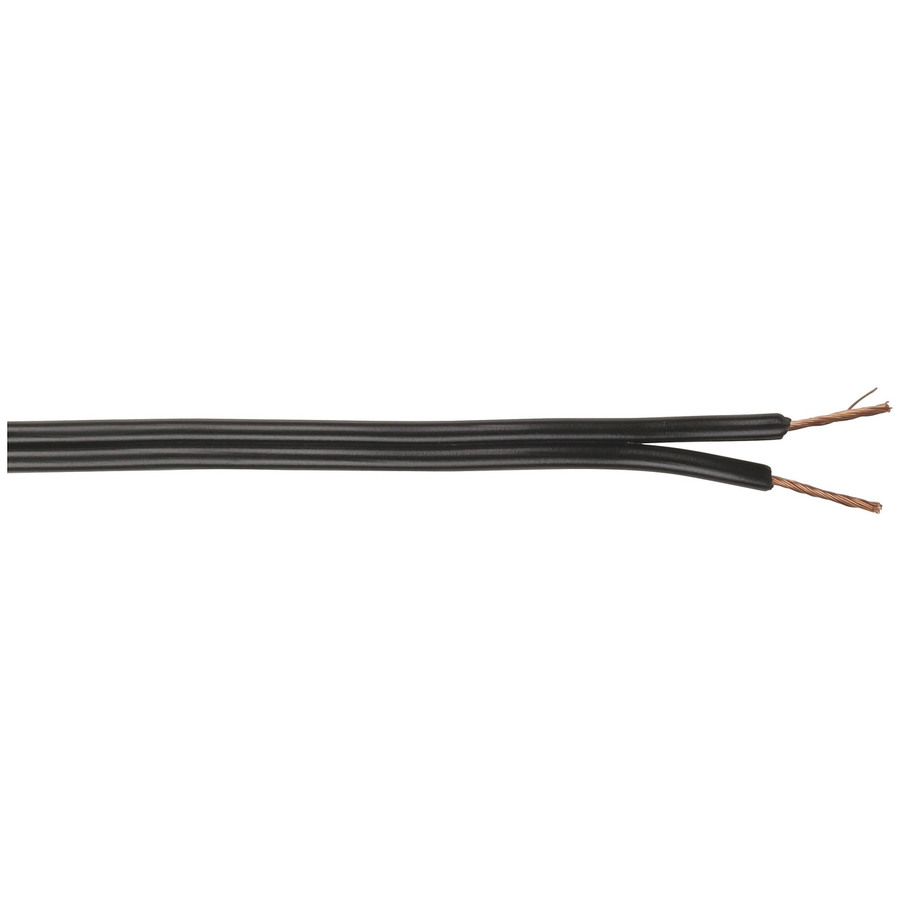

Medium Duty Fig.8 Speaker Cable - Sold per metre - Sold per metre
Medium Duty Fig.8 Speaker Cable - Sold per metre - Sold per metre

CAT. No. WB1706

Medium Duty Fig.8 Speaker Cable - Sold per metre - Sold per metre
product image thumb

Medium Duty Fig.8 Speaker Cable - Sold per metre - Sold per metre

$1
Medium duty speaker cable for audio equipment up to 150WRMS - 5.2x2.6mm cross section - Black with white trace. AWG: 20x2
Available

Description

Medium duty speaker cable for audio equipment up to 150WRMS. Black outer insulation with white trace for polarity identification.


    Specifications

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 0.52cm
    Packaged Weight
    		 0.024kg
    Packaged Volume
    		 0.01352l
    Packaged Height
    		 0.26cm

    Wire and Cable

    Individual Conductor Strand Diameter
    		 0.18mm
    Conductor Overall Diameter
    		 0.8mm
    Shielding
    		 none
    Number of Conductor Strands
    		 19pc
    Outer Diameter
    		 5.2mm
    AWG
    		 20x2
    Core Material
    		 Copper
    Number of Conductor Cores
    		 2pc
    Roll Length
    		 100m
    Wire Category
    		 Figure 8 / composite
    Retail Sales Unit
    		 Metre
    Cross Sectional Area
    		 0.483mm²

    Product Availability

    Availability
    		 Stocked item
