Light Duty Silicone Hook Up Wire 8m Handy Pack Black
Light Duty Silicone Hook Up Wire 8m Handy Pack Black

CAT. No. WH3036

Light Duty Silicone Hook Up Wire 8m Handy Pack Black
product image thumb

Light Duty Silicone Hook Up Wire 8m Handy Pack Black

$11.95

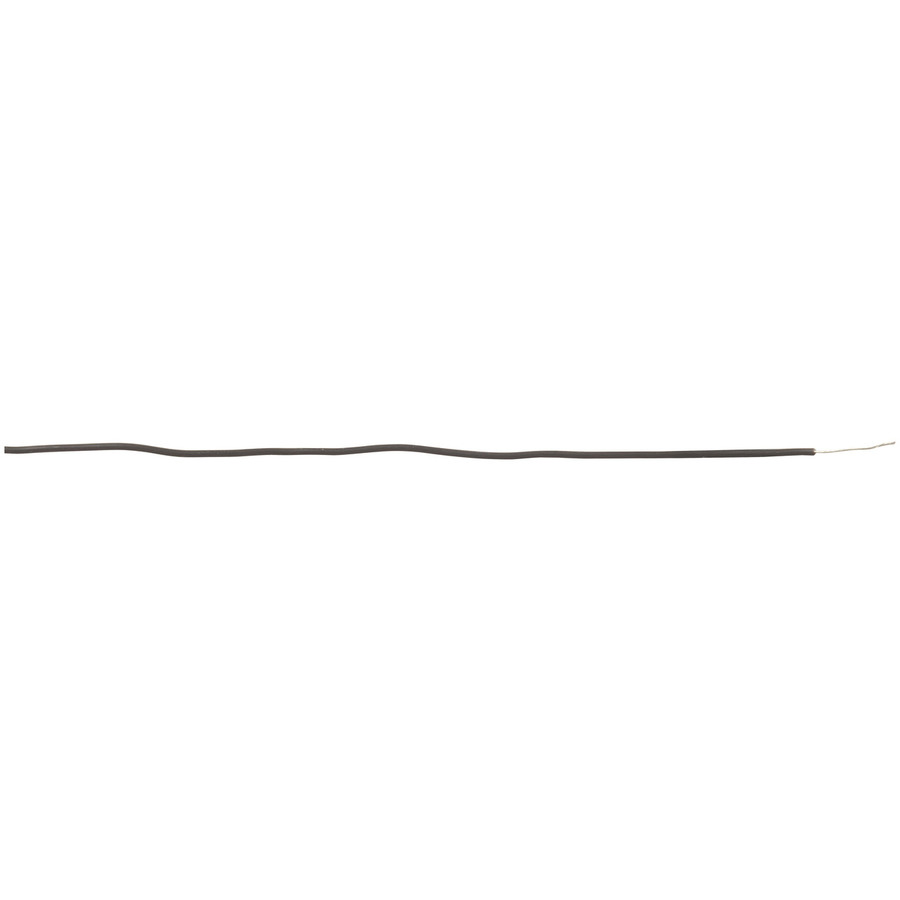

Black silicone rubber insulated hook-up wire

Out of Stock

Description

This hook-up wire has silicone rubber insulation, which makes it extremely flexible and capable to withstand temperatures from -60°C up to 150°C. Supplied on a handy 8m roll and available with red or black insulation.

Red: WH3034
Black: WH3036

Specifications:
OD Tolerance: 1.1±0.1mm
Testing Voltage: 1500V/2000V
Insulation: Silicone Rubber


    Specifications

    Wire and Cable

    AWG
    		 28
    Individual Conductor Strand Diameter
    		 0.1mm
    Roll Length
    		 8m
    Wire Category
    		 hook up / power
    Number of Conductor Strands
    		 7pc
    Retail Sales Unit
    		 Roll

    Product colour

    Colour
    		 Black

    AC Voltage Rating

    AC Voltage rating
    		 300V

    AC Current Rating

    AC current rating
    		 1A

    DC Current Rating

    DC current rating
    		 1A

    Operating Temperature

    Operating Temperature
    		 -60°C-150°C

    Internal or Sub-part Dimensions

    Dimension details
    		 Strand Diameter x 7
    Width
    		 0.1mm

    Product Dimensions

    Cable length
    		 8m
    Weight
    		 28g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 5cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.026kg
    Packaged Volume
    		 0.1l
    Packaged Height
    		 4cm
