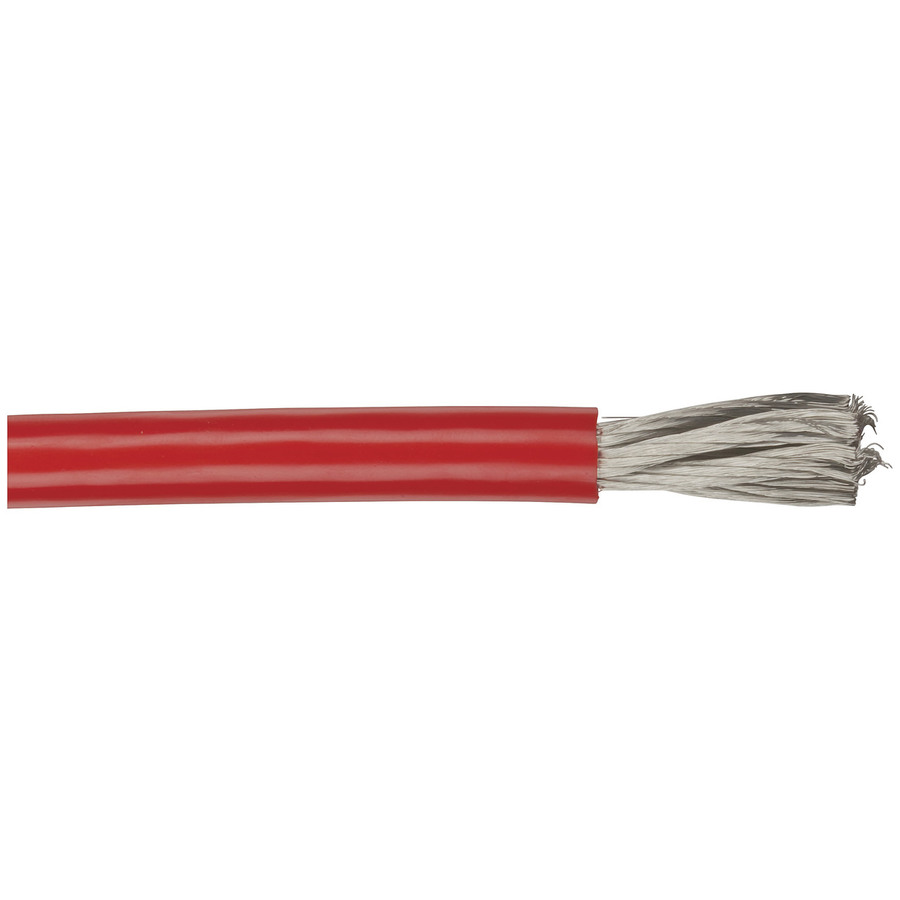

RED 4GA OFC Super High Current Power Cable - Sold per metre
RED 4GA OFC Super High Current Power Cable - Sold per metre

CAT. No. WH3064

RED 4GA OFC Super High Current Power Cable - Sold per metre
product image thumb

RED 4GA OFC Super High Current Power Cable - Sold per metre

$17.95
Run this from your battery to distribution boxes and then the 8GA to amps etc.- Conductor Material: OFC- Insulation Material: PVC- Stranding: 7 x 7 x ...
Available

Description

Run this from your battery to distribution boxes and then the 8GA to amps etc.
- Conductor Material: OFC
- Insulation Material: PVC
- Conductivity: 98% up


    Specifications

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.26152kg
    Packaged Volume
    		 0.1l
    Packaged Height
    		 1cm

    Wire and Cable

    Individual Conductor Strand Diameter
    		 0.127mm
    Resistance per Linear Metre
    		 0.97m?
    UV Resistant Cable
    Conductor Overall Diameter
    		 7.7mm
    Oil Resistant Wire
    Strand Weave Configuration
    		 7 x 7 x 34
    Number of Conductor Strands
    		 1666pc
    Outer Diameter
    		 10mm
    AWG
    		 4
    Halogen Free Wire
    Core Material
    		 Tin Plated Copper
    Number of Conductor Cores
    		 1pc
    Roll Length
    		 50m
    Wire Category
    		 hook up / power
    OFC wire
    Retail Sales Unit
    		 Metre
    Cross Sectional Area
    		 21mm²
    Twisted Cores

    Product colour

    Alternates available
    Colour
    		 Red

    DC Current Rating

    DC current rating
    		 100A

    Product Availability

    Availability
    		 Stocked item

    Downloads

    N/A
