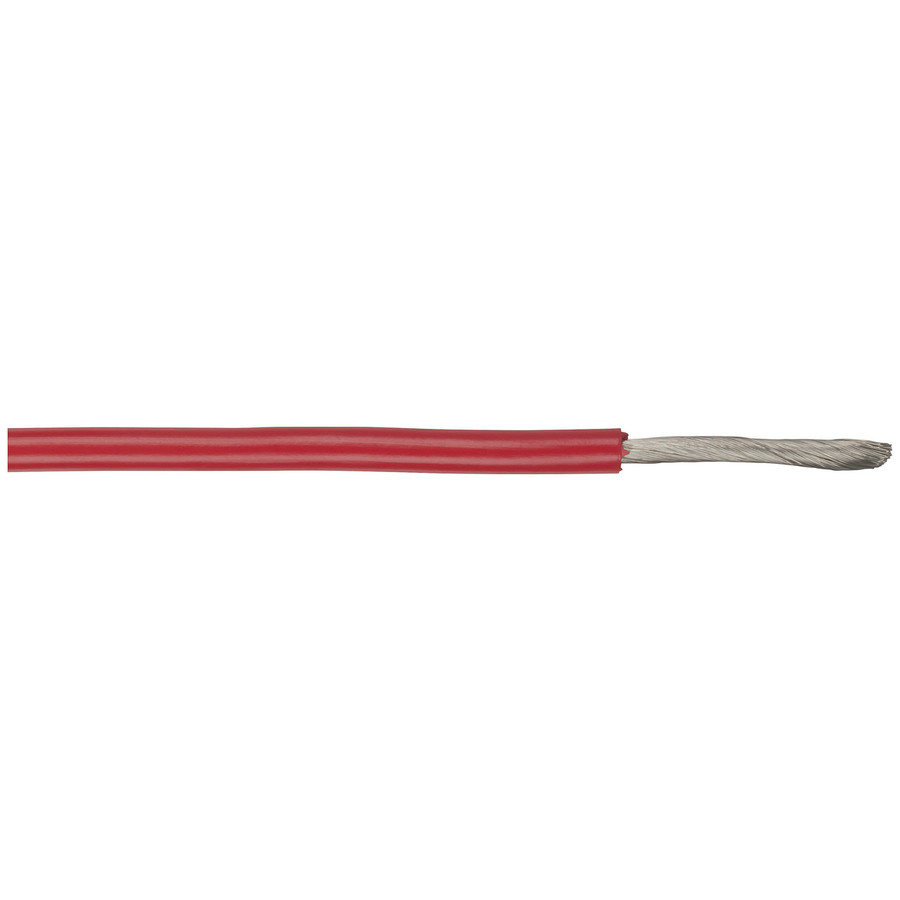

Red 25AAutomotive DC Power Cable - Sold per metre - Sold per metre
Red 25AAutomotive DC Power Cable - Sold per metre - Sold per metre

CAT. No. WH3080

Red 25AAutomotive DC Power Cable - Sold per metre - Sold per metre
product image thumb

Red 25AAutomotive DC Power Cable - Sold per metre - Sold per metre

$4.45
High quality flexible power cable for automotive and marine applications - 25A rating - Tinned copper cable. AWG: 12
Available

Description

High quality flexible power cable for automotive and marine applications. Tinned copper cable suitable for up to 25A.


    Specifications

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 0.35cm
    Packaged Weight
    		 0.039kg
    Packaged Volume
    		 0.01225l
    Packaged Height
    		 0.35cm

    Wire and Cable

    Individual Conductor Strand Diameter
    		 0.3mm
    Resistance per Linear Metre
    		 5.9m?
    Conductor Overall Diameter
    		 1.99mm
    Number of Conductor Strands
    		 41pc
    Outer Diameter
    		 3.35mm
    AWG
    		 12
    Core Material
    		 Tin Plated Copper
    Number of Conductor Cores
    		 1pc
    Roll Length
    		 100m
    Wire Category
    		 hook up / power
    Retail Sales Unit
    		 Metre
    Cross Sectional Area
    		 2.9mm²

    Product colour

    Colour
    		 Red

    DC Current Rating

    DC current rating
    		 25A

    Product Availability

    Availability
    		 Stocked item
