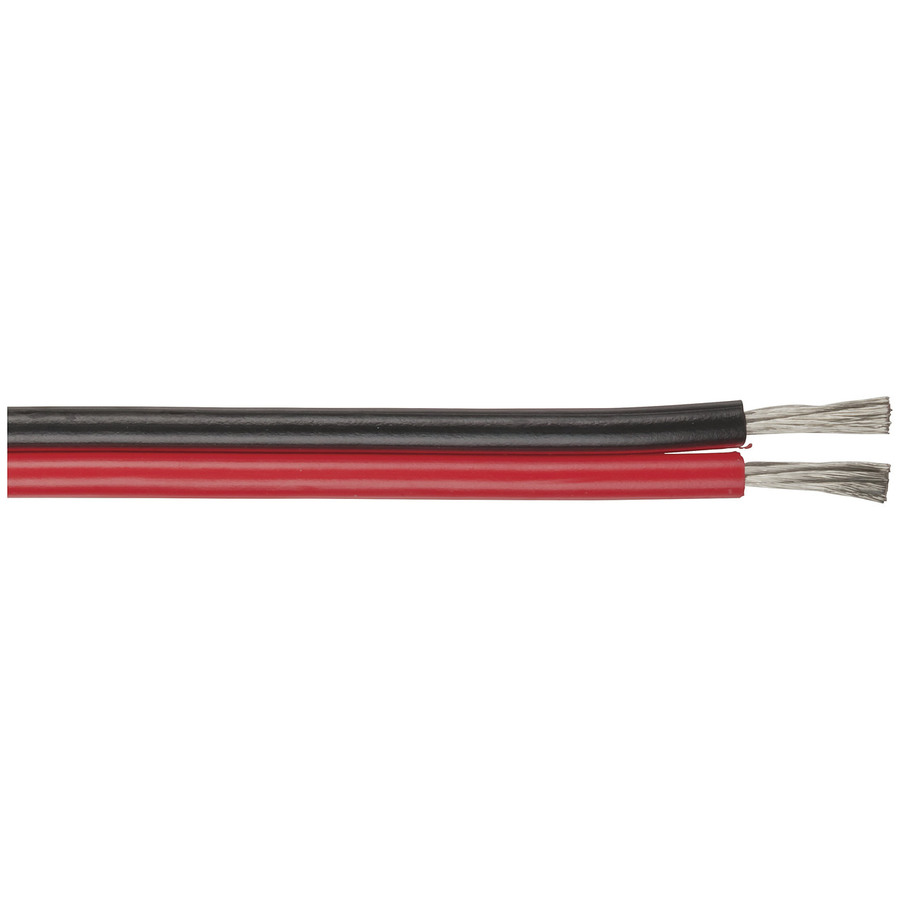

25A 2 Core Tinned DC Power Cable - Sold per metre - Sold per metre
25A 2 Core Tinned DC Power Cable - Sold per metre - Sold per metre

CAT. No. WH3087

25A 2 Core Tinned DC Power Cable - Sold per metre - Sold per metre
product image thumb

25A 2 Core Tinned DC Power Cable - Sold per metre - Sold per metre

$6.95
Ideal for most automotive, marine, or general purpose wiring. Twin core for positive and negative connections. - Outside Dia 3.5mm - Conductor 2.90mm2. AWG: 12
Available

Description

Ideal for most automotive, marine, or general purpose wiring. Twin core for positive and negative connections.

* Conductor area 2.90mm2
* Insulation: PVC
* Stranding: 41/0.30mm (per conductor)

Handy Tip Why our wire is tinned

We now supply all multi-strand power cable with the copper conductors tinned. When you put a coating of pure tin over the copper, you prevent the copper from oxidising. This oxidising can prevent you from achieving a good, tinned solder connection to thewier. This is particularly important in marine and car installations. We have not increased our price to you for this step up in quality.

    Specifications

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 0.7cm
    Packaged Weight
    		 0.099kg
    Packaged Volume
    		 0.0245l
    Packaged Height
    		 0.35cm

    Wire and Cable

    Outer Diameter
    		 3.5mm
    AWG
    		 12
    Core Material
    		 Tin Plated Copper
    Resistance per Linear Metre
    		 5.3m?
    Roll Length
    		 100m
    Wire Category
    		 hook up / power
    Retail Sales Unit
    		 Metre

    Product colour

    Sub-section colour
    		 Red
    Colour
    		 Black

    DC Current Rating

    DC current rating
    		 25A

    Product Availability

    Availability
    		 Stocked item
