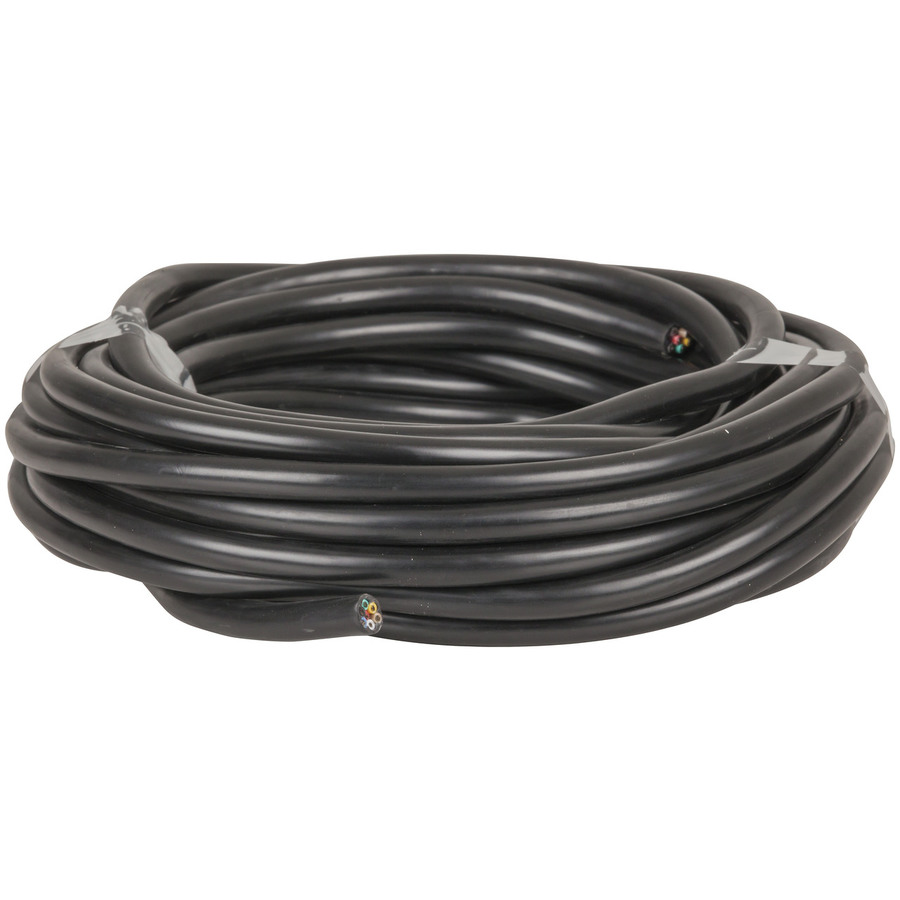

7 Core Trailer Wiring Loom - 10m
7 Core Trailer Wiring Loom - 10m

CAT. No. WH3090

7 Core Trailer Wiring Loom - 10m
product image thumb

7 Core Trailer Wiring Loom - 10m

$46.95
A 10 metre length of the standard 7 conductors sheathed in a tough black PVC jacket. Conductor colours are listed below. Makes wiring easy.
Available

Description

A 10 metre length of the standard 7 conductors sheathed in a tough black PVC jacket. Conductor colours are listed below. Makes wiring easy. 10mt accommodates even up to quite large boat trailers.

• Yellow (Left indicator)
• Black (Aux/reversing)
• White (Earth)
• Green (Right indicator)
• Blue (Electric brakes)
• Red (Stop light)
• Brown (Tail light, no. plate & clearance)

Features:

• No connectors fitted
• Bare wire ends

    Specifications

    Packaged Dimensions

    Packaged Length
    		 18.4cm
    Packaged Width
    		 19.3cm
    Packaged Weight
    		 1.14kg
    Packaged Volume
    		 2.095208l
    Packaged Height
    		 5.9cm

    Wire and Cable

    Outer Diameter
    		 8.2mm
    Core Material
    		 Copper
    Number of Conductor Cores
    		 7pc
    Roll Length
    		 10m
    Wire Category
    		 hook up / power
    Retail Sales Unit
    		 Roll

    Product colour

    Colour
    		 Black

    DC Current Rating

    DC current rating
    		 5A

    Product Availability

    Availability
    		 Stocked item
