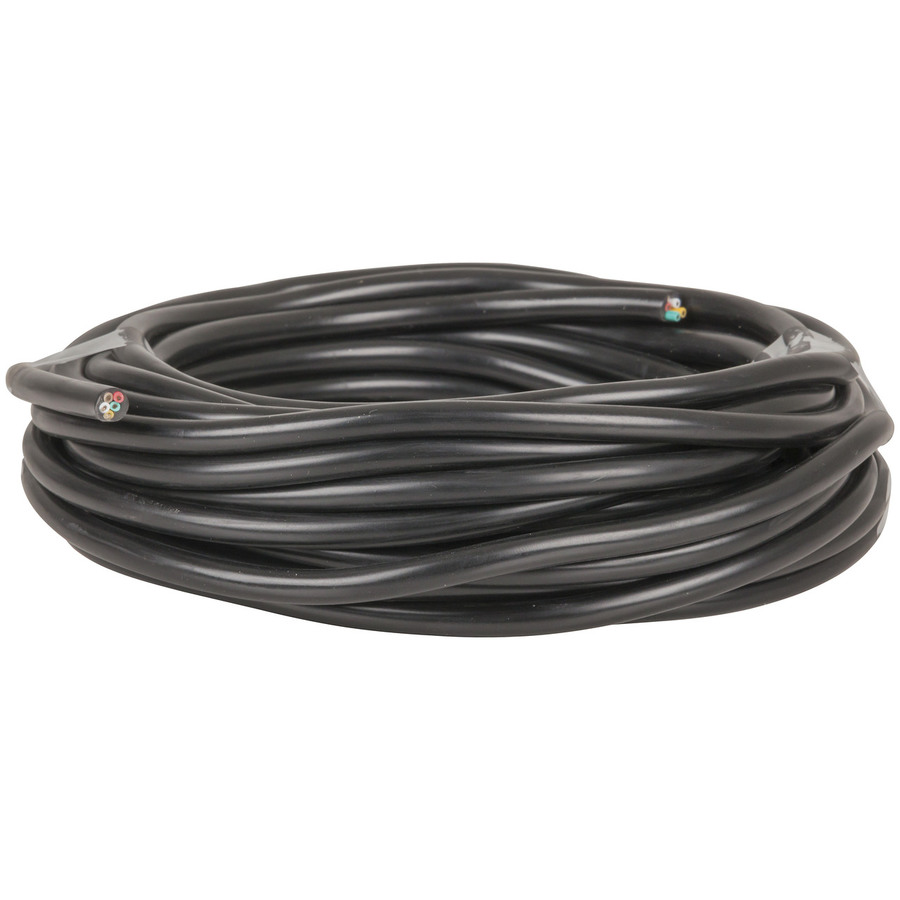

5 Core Trailer Cable - 10m
5 Core Trailer Cable - 10m

CAT. No. WH3091

5 Core Trailer Cable - 10m
product image thumb

5 Core Trailer Cable - 10m

$42.95
A 10 metre length of the standard 5 conductors sheathed in a tough black PVC jacket. Conductor colours are listed below. Makes wiring easy.
Available

Description

A 10 metre length of the standard 5 conductors sheathed in a tough black PVC jacket. Conductor colours are listed below. Makes wiring easy. 10mt accommodates even up to quite large boat trailers.

• Yellow (Left indicator)
• White (Earth)
• Green (Right indicator)
• Red (Stop light)
• Brown (Tail light, no. plate & clearance)

Features:

• Bare wire ends
•No connectors fitted

    Specifications

    Packaged Dimensions

    Packaged Length
    		 17.2cm
    Packaged Width
    		 17.6cm
    Packaged Weight
    		 0.674kg
    Packaged Volume
    		 1.453056l
    Packaged Height
    		 4.8cm

    Wire and Cable

    Outer Diameter
    		 6.3mm
    Core Material
    		 Tin Plated Copper
    Number of Conductor Cores
    		 5pc
    Roll Length
    		 10m
    Wire Category
    		 hook up / power
    Retail Sales Unit
    		 Roll

    Product colour

    Colour
    		 Black

    DC Current Rating

    DC current rating
    		 5A

    Product Availability

    Availability
    		 Stocked item
