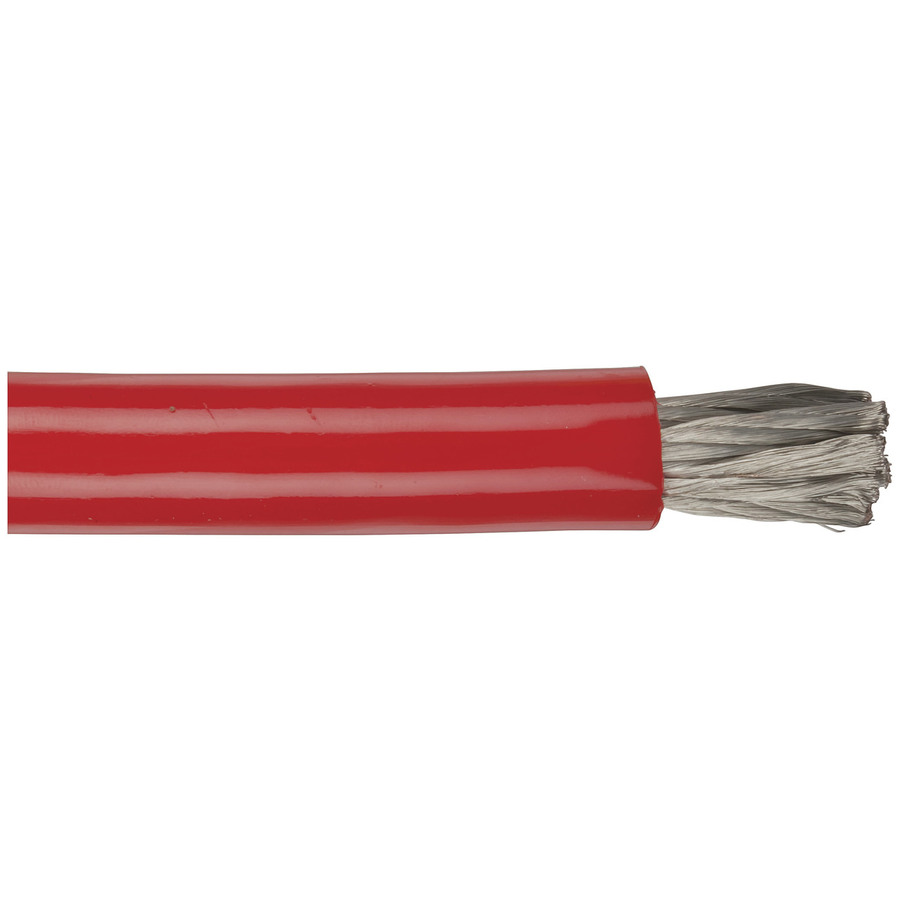

OFC Ultra High Current Power cable - Sold per metre
OFC Ultra High Current Power cable - Sold per metre

CAT. No. WH3092

OFC Ultra High Current Power cable - Sold per metre
product image thumb

OFC Ultra High Current Power cable - Sold per metre

$36.95
Run from your battery to distribution blocks and then 2GA, 4GA or 8GA to your amplifiers or other power equipment for seriously high current applicati...
Available

Description

Run from your battery to distribution blocks and then 2GA, 4GA or 8GA to your amplifiers or other power equipment for seriously high current applications.

• Conductor material: OFC
• Insulation material: PVC


Red 0GA cable Cat No. WH-3092
Black 0GA cable Cat No. WH-3094

    Specifications

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 1.6cm
    Packaged Weight
    		 0.58176kg
    Packaged Volume
    		 0.256l
    Packaged Height
    		 1.6cm

    Wire and Cable

    Individual Conductor Strand Diameter
    		 0.12mm
    Resistance per Linear Metre
    		 0.35m?
    UV Resistant Cable
    Conductor Overall Diameter
    		 12.2mm
    Oil Resistant Wire
    Strand Weave Configuration
    		 7 x 7 x 81
    Number of Conductor Strands
    		 3969pc
    Outer Diameter
    		 15mm
    AWG
    		 0
    Halogen Free Wire
    Core Material
    		 Tin Plated Copper
    Number of Conductor Cores
    		 1pc
    Roll Length
    		 25m
    Wire Category
    		 hook up / power
    OFC wire
    Retail Sales Unit
    		 Metre
    Cross Sectional Area
    		 44mm²
    Twisted Cores

    Product colour

    Alternates available
    Colour
    		 Red

    DC Current Rating

    DC current rating
    		 200A

    Product Availability

    Availability
    		 Stocked item

N/A
