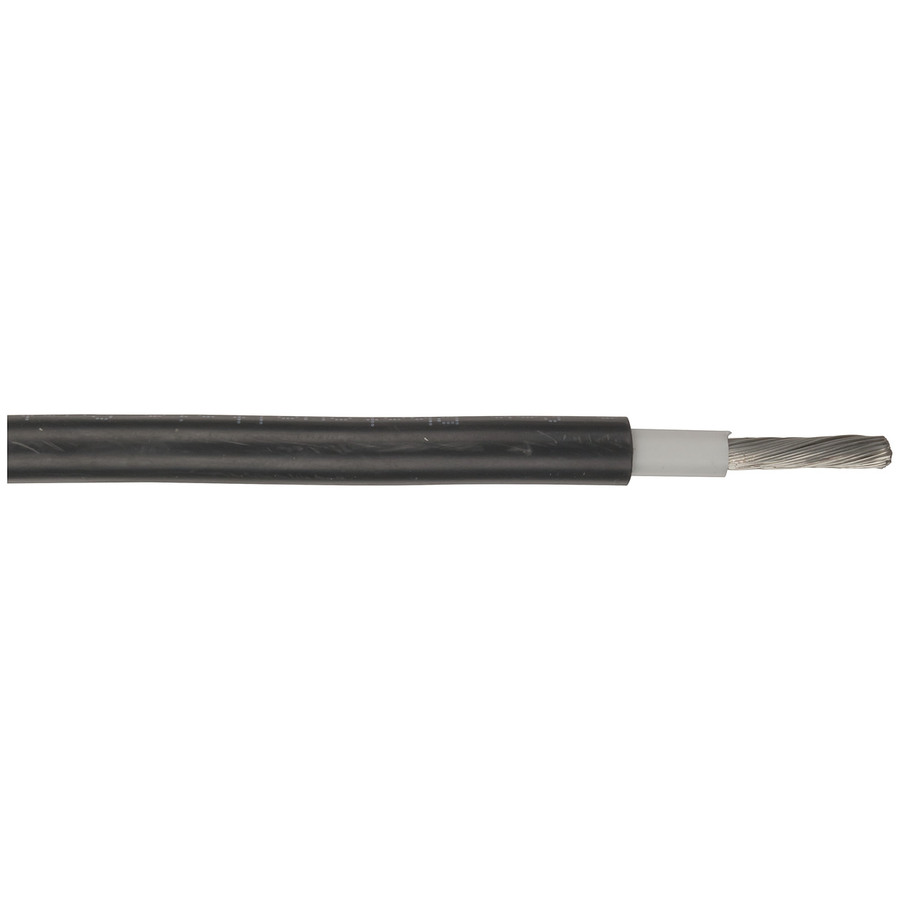

70A Solar Panel (PV) Power Cable - Sold per metre
70A Solar Panel (PV) Power Cable - Sold per metre

CAT. No. WH3122

70A Solar Panel (PV) Power Cable - Sold per metre
product image thumb

70A Solar Panel (PV) Power Cable - Sold per metre

$6.5
Highly durable black power cable designed specifically for the rigours of outdoor solar panel installations - 70A 1000VDC rated - Commonly referred to as 6mm solar cable - Tinned copper conductors - UV resistant
Available

Description

Very tough cable, specifically for the rigours of outdoor use in solar panel installations. Dust, age and UV resistant, tinned copper conductors to minimise corrosion. Use with our PV connectors for complete environmental protection.

Features:
• Insulation material: Double Layer XLPE
• TUV certification: 2 PfG 1169
• Commonly referred to as 6mm solar cable






    Specifications

    Packaged Dimensions

    Packaged Length
    		 100cm
    Packaged Width
    		 0.6cm
    Packaged Weight
    		 0.11kg
    Packaged Volume
    		 0.036l
    Packaged Height
    		 0.6cm

    Wire and Cable

    Outer Diameter
    		 7.1mm
    Core Material
    		 Tin Plated Copper
    Individual Conductor Strand Diameter
    		 0.3mm
    Resistance per Linear Metre
    		 3.52m?
    UV Resistant Cable
    Roll Length
    		 100m
    Wire Category
    		 Solar system cable
    Conductor Overall Diameter
    		 3.2mm
    Number of Conductor Strands
    		 81pc
    Retail Sales Unit
    		 Metre
    Cross Sectional Area
    		 5.7mm²

    Product colour

    Alternates available
    Colour
    		 Black

    DC Voltage Rating

    DC Voltage
    		 1000V

    DC Current Rating

    DC current rating
    		 70A

    Operating Temperature

    Operating Temperature
    		 -40°C-90°C

    Product Availability

    Availability
    		 Stocked item
