CAT. No. WH5622

Braided Heatshrink Sleeve 20mm x 1.2m
product image thumb

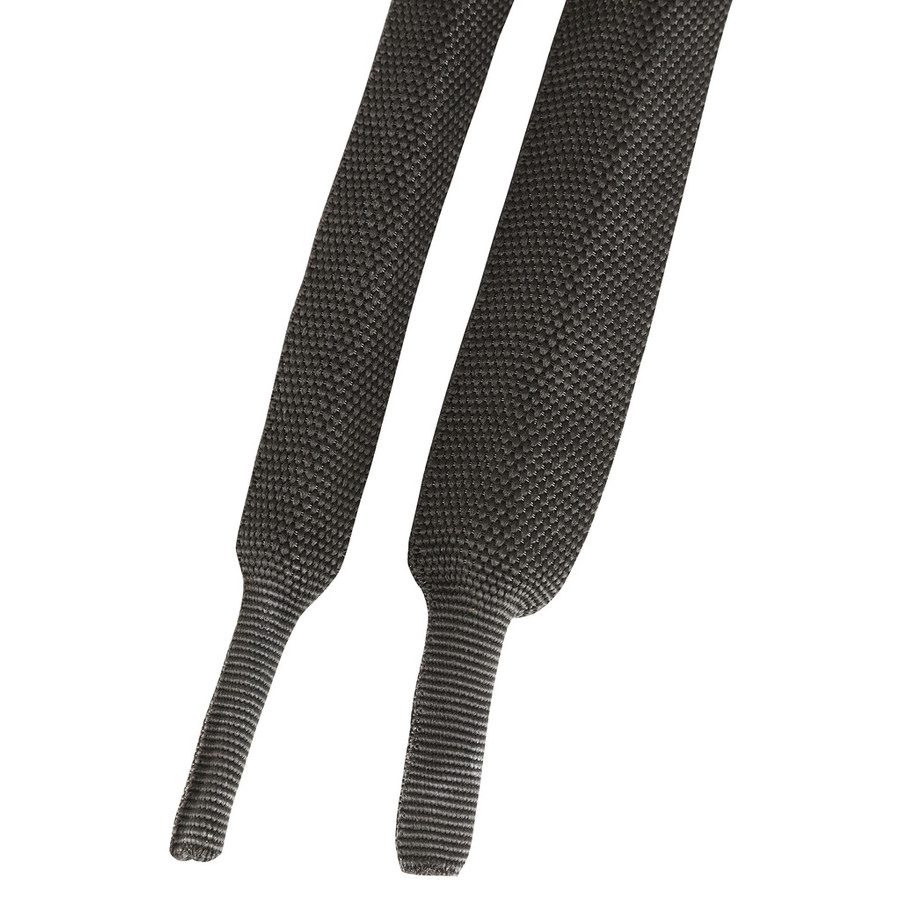

Braided Heatshrink Sleeve 20mm x 1.2m

$6.25
Used to provide added protection to cables against flames and abrasion. Consists of polyester multifilament and special modified polyolefin filament, ...

Out of Stock

Description

Used to provide added protection to cables against flames and abrasion. Consists of polyester multifilament and special modified polyolefin filament, which will shrink when exposed to a heat source (Heat gun recommended). The unique woven construction makes it extremely flexible and easy to install on the hoses with irregular shapes.

Features:

• Flammability: self-extinguishing
• Approved : RoHS , Halogen Free


Also available:
10mm - WH5620
25mm - WH5624
30mm - WH5626


    Specifications

    Heatshrink Tubing


    Minimum Shrink Temperature
    80°C
    Shrink Ratio
    2:1
    Full Shrink Temperature
    120°C
    Heatshrink Tube Diameter
    20mm
    Heatshrink Length
    1.2m

    Operating Temperature


    Operating Temperature
    -40°C-125°C

    Packaged Dimensions


    Packaged Length
    120cm
    Packaged Width
    4cm
    Packaged Weight
    0.027kg
    Packaged Volume
    0.048l
    Packaged Height
    0.1cm

    Product Availability


    Availability
    Stocked item
