6.0mm Solder Splice Heatshrink - Pack of 100
6.0mm Solder Splice Heatshrink - Pack of 100

CAT. No. WH5699

6.0mm Solder Splice Heatshrink - Pack of 100
product image thumb

6.0mm Solder Splice Heatshrink - Pack of 100

$69.95

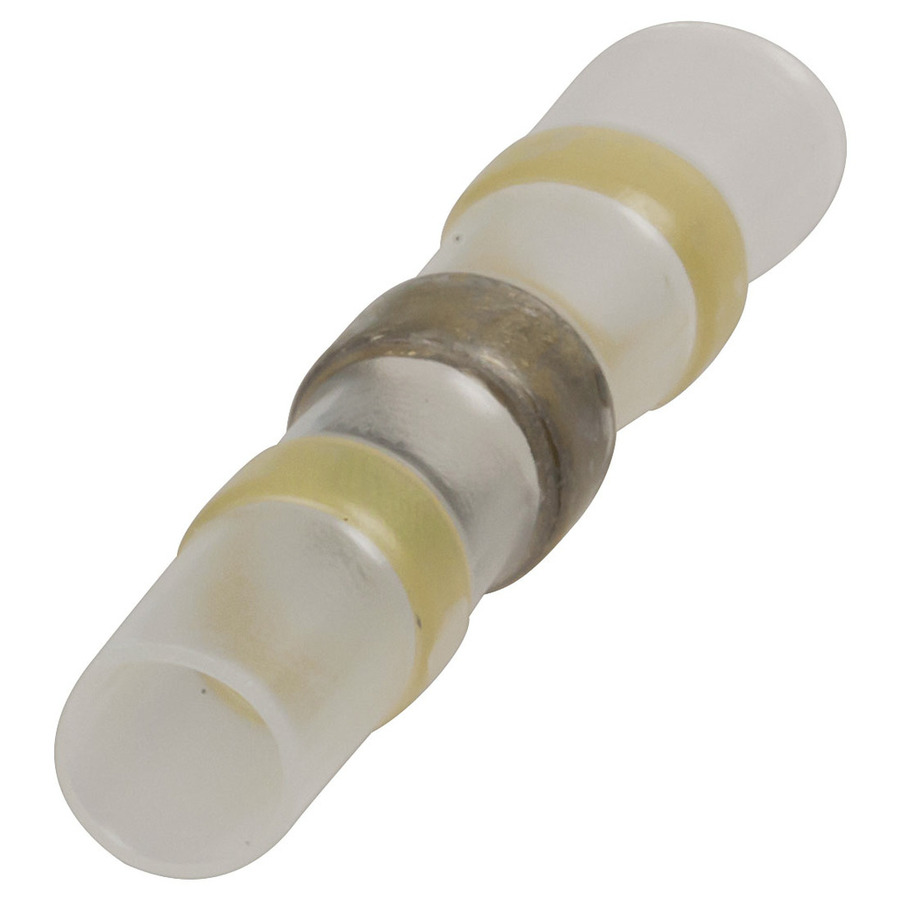

Solder splice heatshrink tubes allow you to quickly join two cables thanks to the small section of solder in the middle of the tube.

Out of Stock

Description

Solder splice heatshrink tubes allow you to quickly join two cables thanks to the small section of solder in the middle of the tube. Simply slide a tube over the join in two cables and heat as you would any other shrink tube. As the tube shrinks the solder melts to electrically connect the wires resulting in a join which is reliable and well insulated.

    Specifications

    Internal or Sub-part Dimensions

    Length
    		 40mm, 112mm
    Dimension details
    		 Individual Item, Pack of 100
    Diameter
    		 6mm

    Heatshrink Tubing

    Minimum Shrink Temperature
    		 85°C
    Pack Quantity
    		 100pc
    Shrink Ratio
    		 2:1
    Heatshrink Tube Diameter
    		 6mm
    Heatshrink Length
    		 40mm

    Product colour

    Colour
    		 Yellow

    Product Availability

    Availability
    		 Stocked item

    Product Dimensions

    Length
    		 40mm, 112mm
    Height
    		 120mm
    Width
    		 30mm
    Dimension details
    		 Individual Item, Pack of 100
    Weight
    		 94g

    Packaged Dimensions

    Packaged Length
    		 20cm
    Packaged Width
    		 12.5cm
    Packaged Weight
    		 0.096kg
    Packaged Volume
    		 1.075l
    Packaged Height
    		 4.3cm
