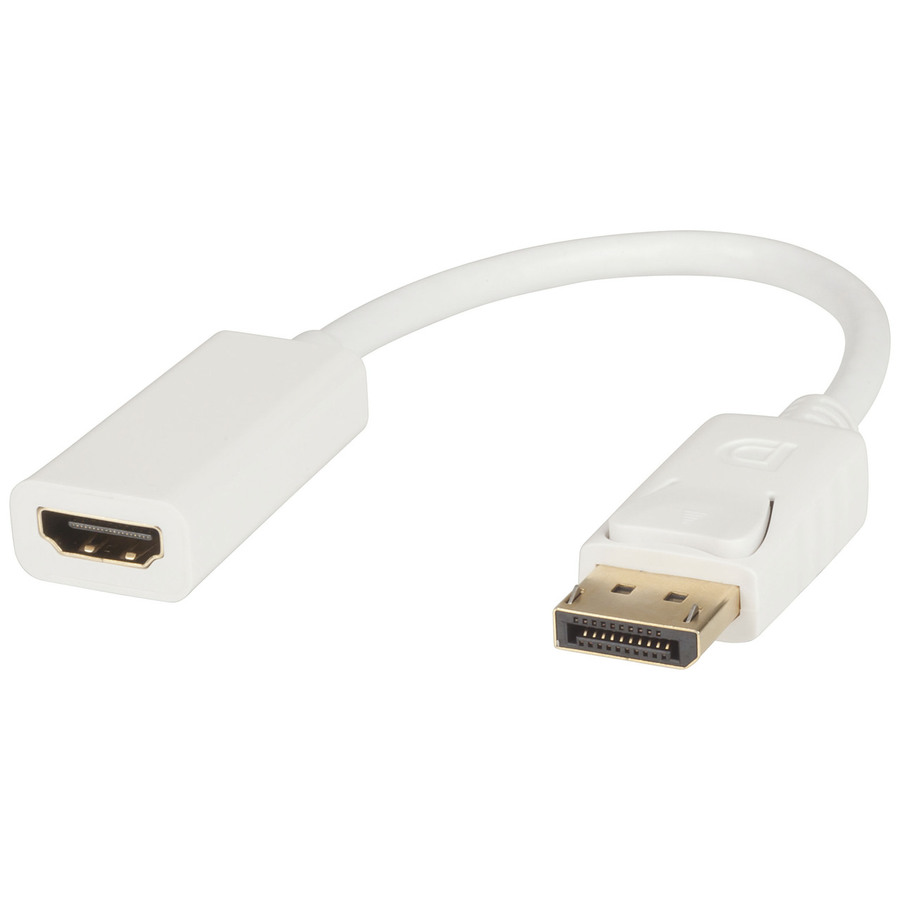

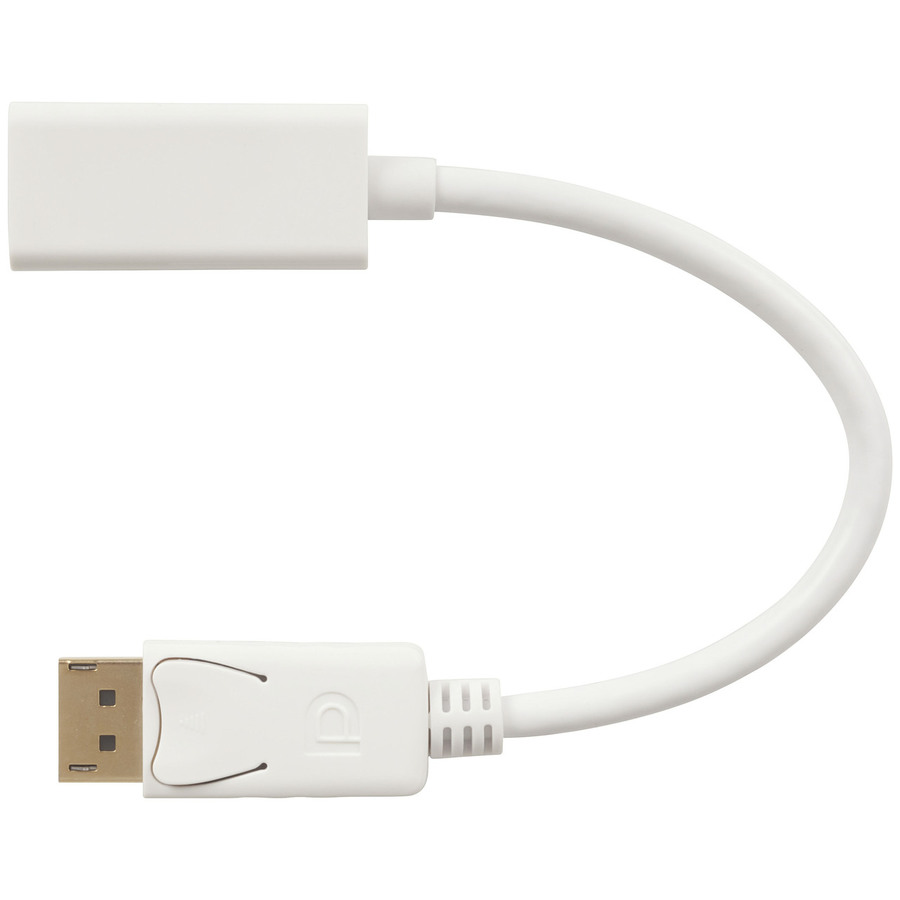

ConverterCable Display Port Plug to HDMI Socket 150mm
ConverterCable Display Port Plug to HDMI Socket 150mm
ConverterCable Display Port Plug to HDMI Socket 150mm

CAT. No. WQ7422

ConverterCable Display Port Plug to HDMI Socket 150mm
product image thumb
product image thumb

ConverterCable Display Port Plug to HDMI Socket 150mm

$37.95
Connects from a display port plug to a HDMI socket for connecting to a high definition TV or monitor. 150mm long...
Available

Description

Connects between the DisplayPort on a computer or video souce and a high definition TV or monitor with HDMI.

Features:
• Display Port Version 1.1a
• Video Output up to 1920 x 1200 @ 60Hz
• Data Rate up to 2.25Gbps
• Supports uncompressed audio such as LPCM
• Supports compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)



For More info on HDMI.


    Specifications

    Product Dimensions

    Cable length
    		 150mm

    Packaged Dimensions

    Packaged Length
    		 25.7cm
    Packaged Width
    		 16.1cm
    Packaged Weight
    		 0.046kg
    Packaged Volume
    		 0.703409l
    Packaged Height
    		 1.7cm

    Computer / IT Lead

    Input Connection
    		 Plug
    Input Type
    		 Display Port
    Output Type
    		 HDMI Type-A
    Output Connection
    		 Socket
    Lead Type
    		 Digital Video
    Length of Lead
    		 150mm
    Quality of lead
    		 Standard

    Video Resolution

    Maximum Vertical Resolution
    		 1200Pixel
    HDMI Version
    		 1.3a
    Maximum Horizontal Resolution
    		 1920Pixel
    Resolution Frequency
    		 60Hz
    Supported Display Resolution
    		 1080p (1920 x 1080)
    HDMI Maximum Data Rate
    		 2.2Gb/s

    Product Availability

    Availability
    		 Stocked item

    Downloads

    WQ7422-dataSheetMain.pdf
