I2C Port Expander Module for LCD
I2C Port Expander Module for LCD
I2C Port Expander Module for LCD

CAT. No. XC3706

I2C Port Expander Module for LCD
product image thumb
product image thumb

I2C Port Expander Module for LCD

$10.25
Control LCD (Liquid Crystal Displays) using just 2 pins via I2C protocol in this useful module. Known as an 'I2C backpack', it solders easily onto your LCD and frees up space by needing fewer leads from your microcontroller.
Available

Description

Raspberry Pi Compatible
Arduino? Compatible

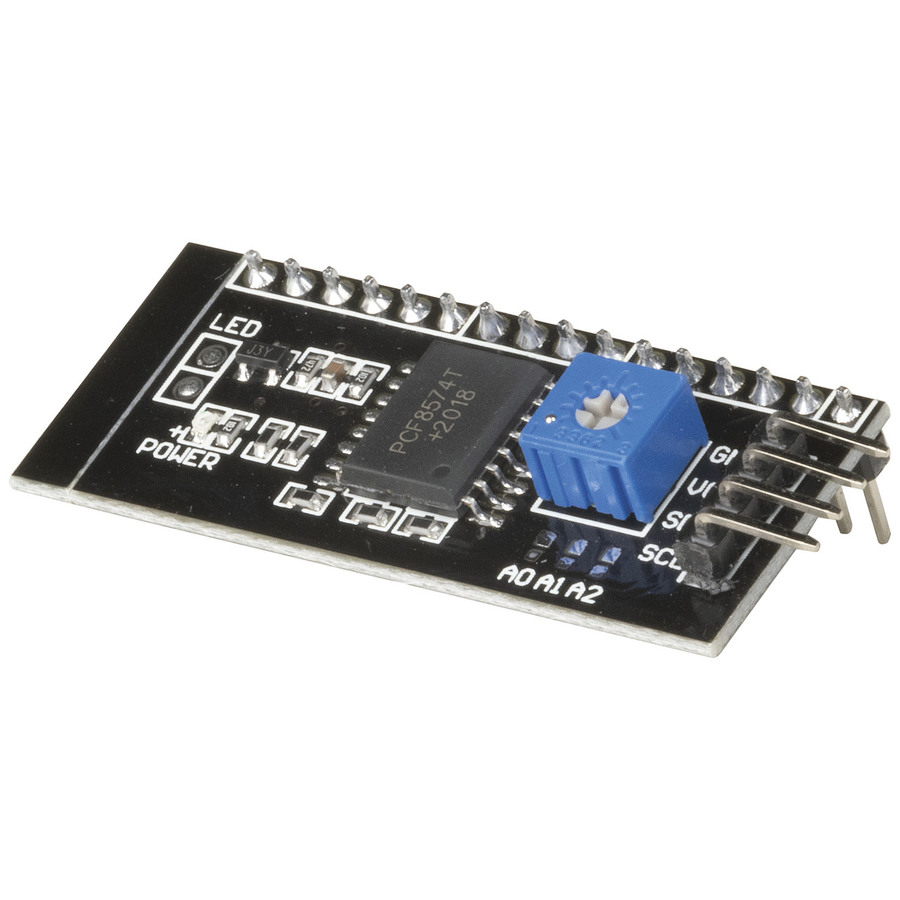

The HD44780 compatible LCDs are great for displaying text and simple graphics, but quickly use up your available microcontroller pins. Using the PCF8574 port expander IC, you can control these LCDs using just 2 pins via I2C. The breakout board offers pin multiplexing, contrast control pot, LED backlight jumper control, and up to 8 unique addresses via solderable jumpers.

Features:

 - Designed to solder directly to 16pin SIL headers
 - Mounts behind LCD panel, taking up minimal space
 - Arduino libraries offer direct LCD control
