CAT. No. XC3710

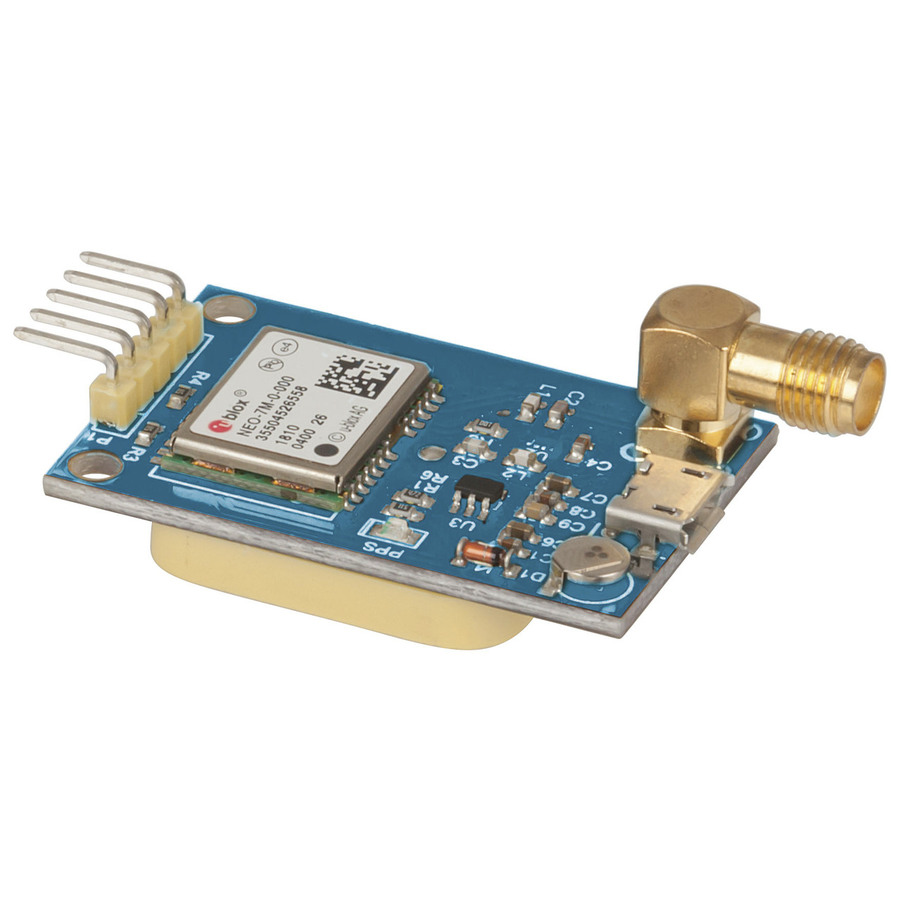

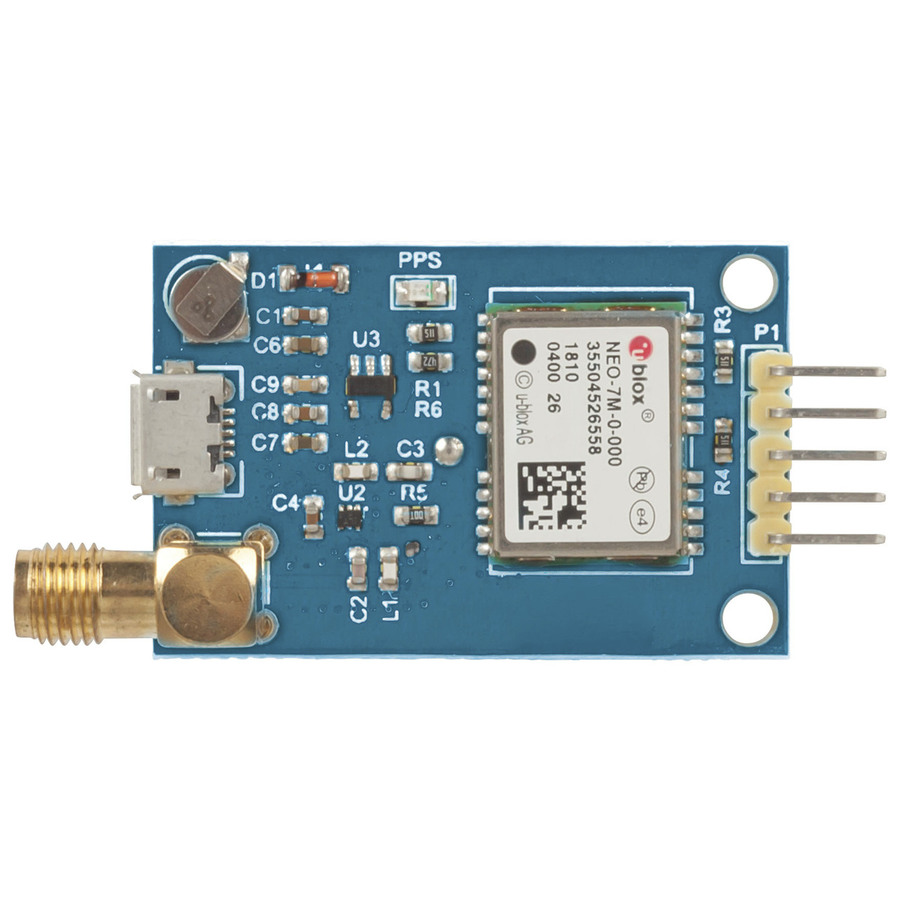

Duinotech GPS Receiver Module with On-Board Antenna
$36.5
Add GPS positioning down to 2.5m accuracy to your next Arduino project using this compact GPS module with on-board antenna. Based on the NEO-7M, supports NMEA standard protocol output and features built-in flash to save settings after power-off.
Available
Description
Arduino? CompatibleAdd GPS positioning down to a 2.5m accuracy to your next project with this compact GPS module. Based on the NEO-7M that supports the NMEA standard protocol output, and features built-in flash to save settings after power-off, without an external EEPROM. An onboard ceramic antenna means you don’t need an external one, however, an SMA connector is also attached if you wish to attach your own antenna to improve reception. The micro USB interface enables you to debug the GPS module via a data cable, and a reserved serial port interface for USB-to-serial port modules or external MCU enables you to easily receive the GPS data.
Features:
- On-board signal LED indicator
- 3.3V or 5V operation
- Onboard & external antenna options
- 9600 Baud Rate
- 9600 Baud Rate
- 1Hz Output Frequency
Please note:
• When connecting an external antenna the C2 capacitor on the module needs to be removed. If the internal and external antennas are used together they will interfere with each other, affecting positioning.
• The on-board battery needs to be charged for around about an hour before usage.
• Use TinyGPS++ Library for this GPS Module.
