CAT. No. XC3715

Quad 14 Segment Alphanumeric Display Module
product image thumb
product image thumb

Quad 14 Segment Alphanumeric Display Module

$9.95
Quad 14 Segment Alphanumeric Display

Out of Stock

Description

LED

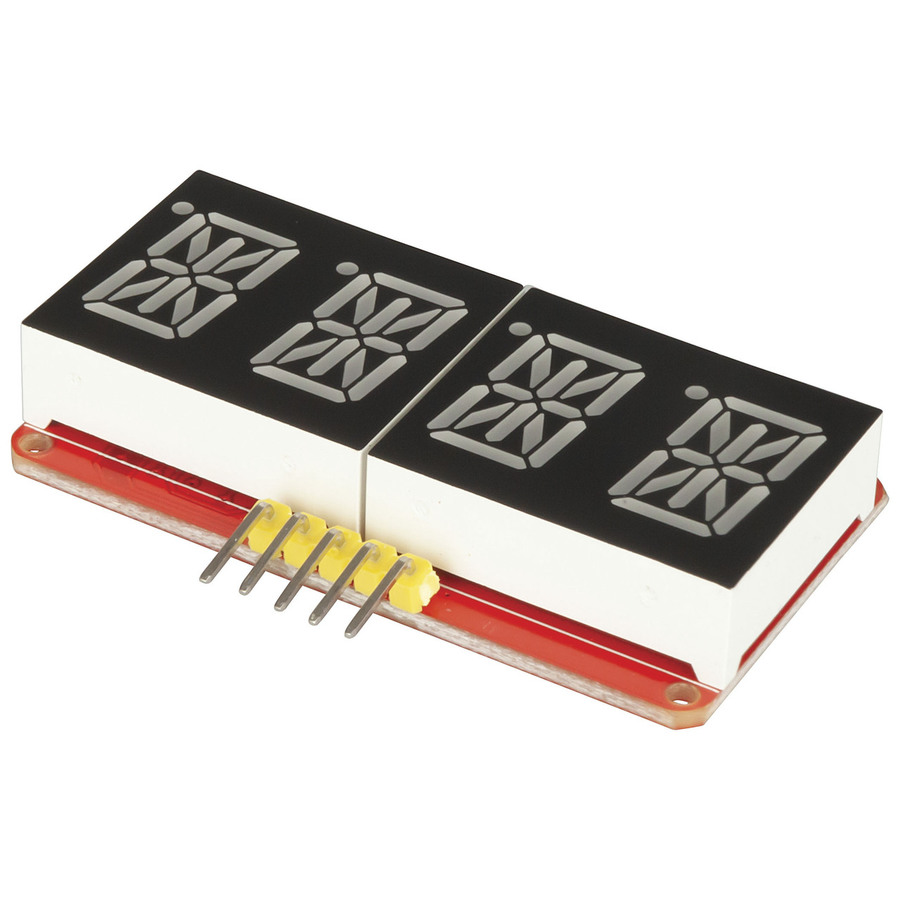

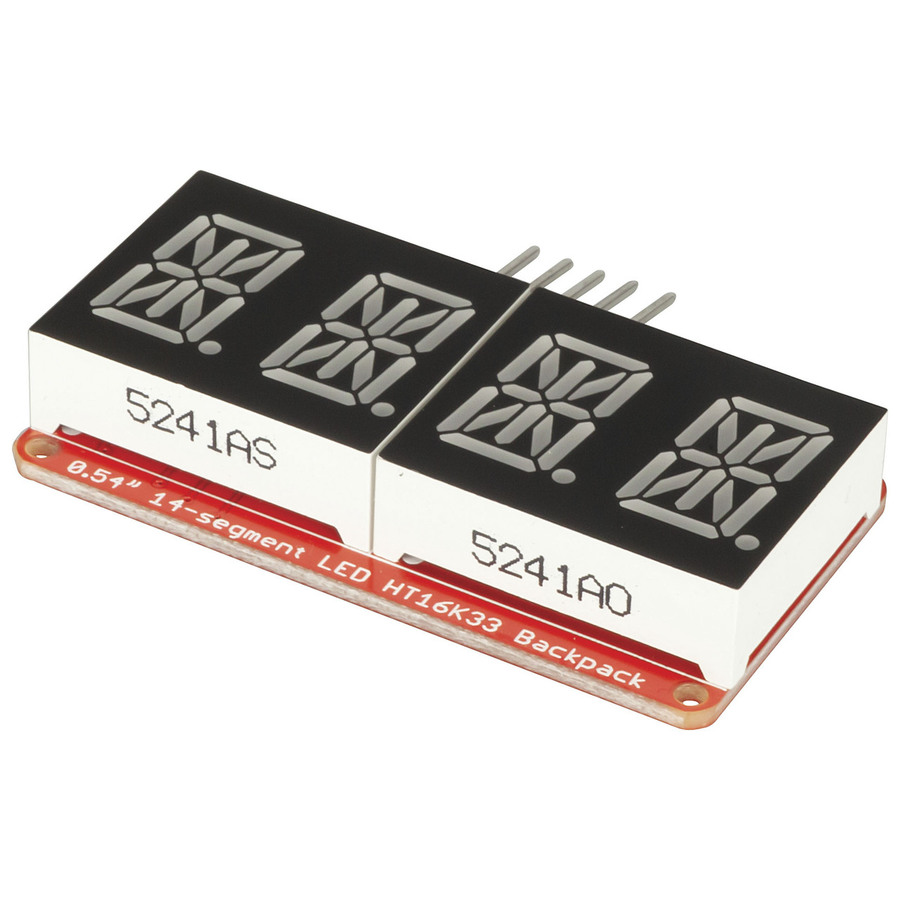

This unit, which measures only 50l x 28w x 10h features an impressive 0.54inch (14mm) character height enabling you to display all alphanumerics in either red or yellow. 4 x 20mm mounting holes are provided, enabling you to fix the unit behind a panel with a suitable red or yellow perspex filter for a very professional display. It is quite bright but is capable of being dimmed.

Specifications:
Power: 5V D.C.
Interface: Up to 12V D.C.

    Specifications

    LED Components

    Light Colour
    		 Red, Yellow
    Illumination Type
    		 Bi Colour
    LED Type
    		 14 Segment

    Product Dimensions

    Length
    		 50mm
    Height
    		 10mm
    Width
    		 28mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 13cm
    Packaged Width
    		 11cm
    Packaged Weight
    		 0.024kg
    Packaged Volume
    		 0.286l
    Packaged Height
    		 2cm

    Downloads

    XC3715-dataSheetMain.pdf
