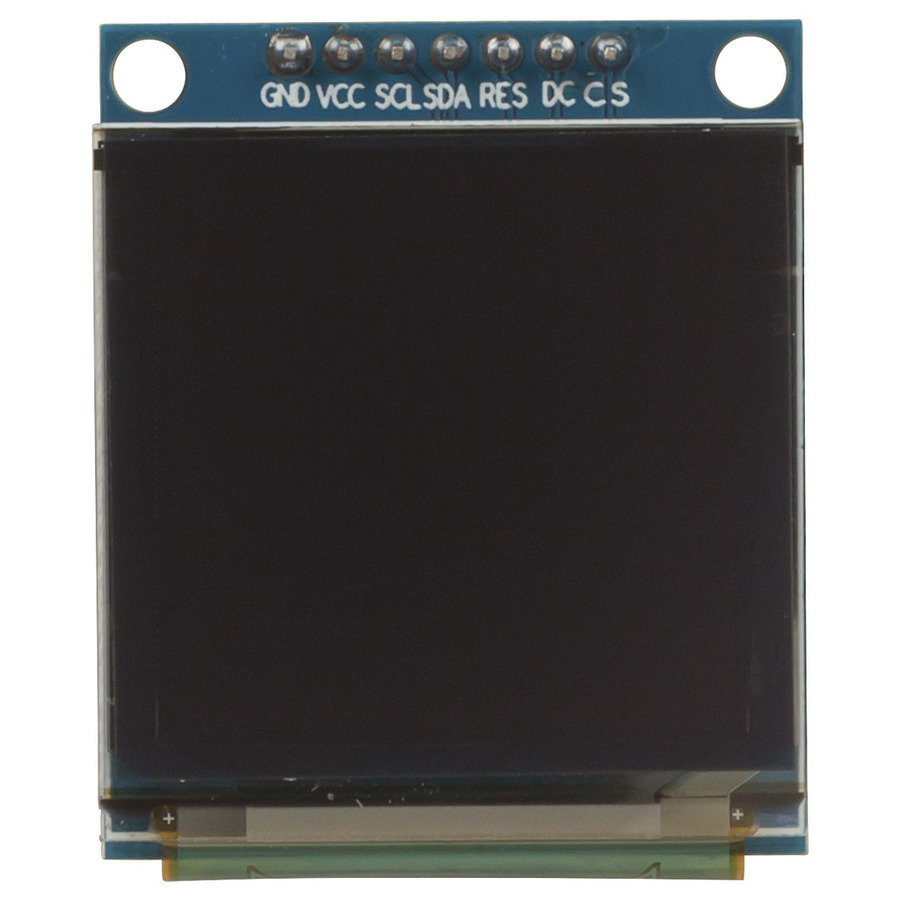

Duinotech 1.5in 128x128 OLED Colour Display Module
Duinotech 1.5in 128x128 OLED Colour Display Module
Duinotech 1.5in 128x128 OLED Colour Display Module

CAT. No. XC3726

Duinotech 1.5in 128x128 OLED Colour Display Module
product image thumb
product image thumb

Duinotech 1.5in 128x128 OLED Colour Display Module

$49.95
Upgrade from basic black and white displays to rainbow by incorporating this compact, high contrast full-colour RGB display screen into your next Arduino build. Module uses SPI protocol (Serial Peripheral Interface).
Available

Description

Arduino? Compatible
LED

This 1.5” OLED display features 128 x 128 RGB pixels to provide an attrActive colour display for your next project.

Features:
- RGB 128 x 128 pixels
- SSD1351 chipset
- Passive Matrix Display
- 262,144 Colours
- 1/128 Drive Duty

    Specifications

    Additional Dimensions

    Height
    		 26.8mm
    Dimensions details
    		 Display Area
    Width
    		 26.8mm, 34mm

    Arduino Modules

    Required Supply Voltage
    		 5V

    Display Screen

    Diagonal Screen Size
    		 38in
    Colours Displayed
    		 Full Colour
    LCD Screen Technology
    		 Thin Film Transistor (TFT)
    Horizontal Screen Resolution
    		 128Pixel
    Screen Width
    		 26.8mm
    Vertical Screen Resolution
    		 128Pixel
    Screen Type
    		 Flat Panel Screen (OLED)
    Screen Height
    		 26.8mm
    Aspect Ratio
    		 1:1

    Product Dimensions

    Length
    		 34mm
    Width
    		 26.8mm, 34mm
    Depth
    		 2mm
    Weight
    		 3.8g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 15cm
    Packaged Width
    		 9cm
    Packaged Weight
    		 0.03kg
    Packaged Volume
    		 0.54l
    Packaged Height
    		 4cm
