8x16 Matrix LED Display Module for Arduino
8x16 Matrix LED Display Module for Arduino
8x16 Matrix LED Display Module for Arduino

CAT. No. XC3746

8x16 Matrix LED Display Module for Arduino
product image thumb
product image thumb

8x16 Matrix LED Display Module for Arduino

$19.95
Create amazing patterns or messages with this LED matrix module on your next electronics project. Compatible with your favourite micrcontroller such as Arduino or Raspberry Pi.

Out of Stock

Description

LED
Arduino? Compatible

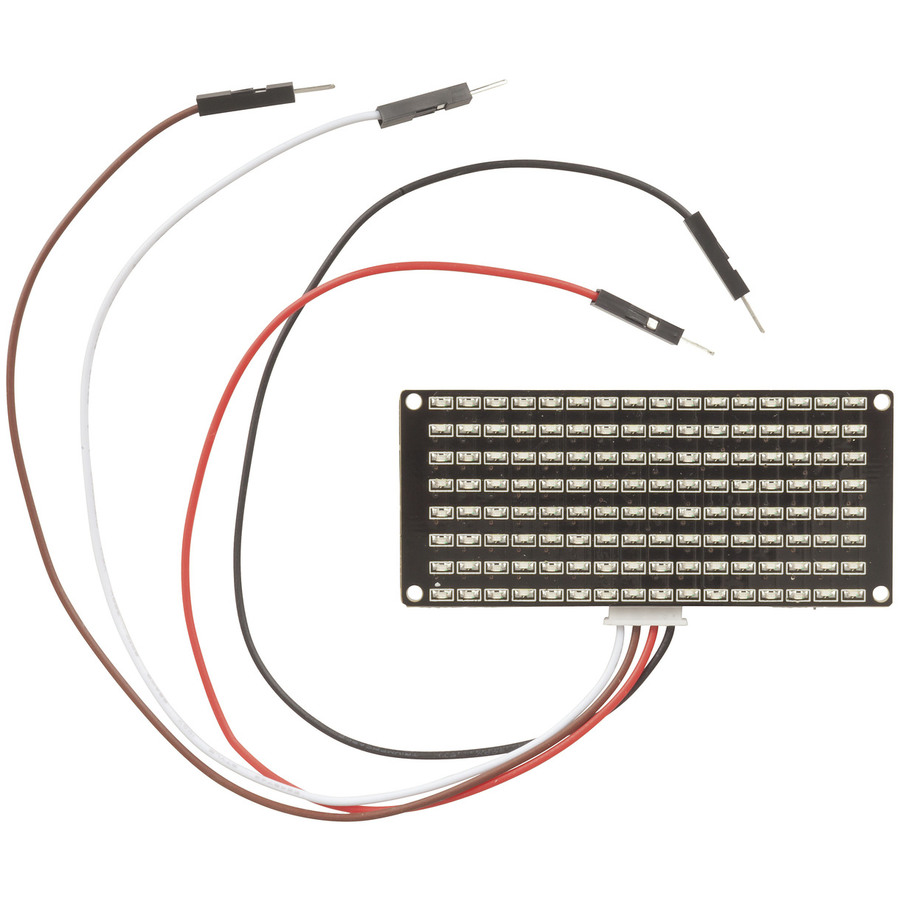

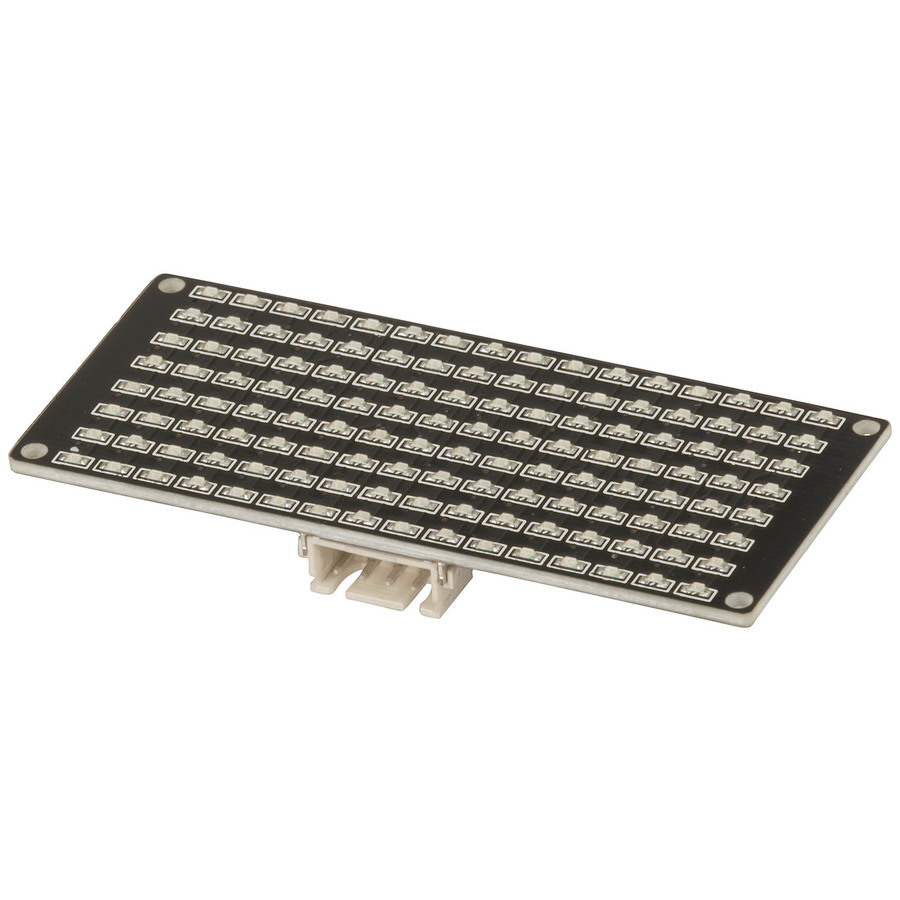

Create amazing patterns or messages with this LED matrix module. It features 128 bright blue LEDs arranged in an 8 x 16 grid, brightness control, and communicates to your microcontroller via I2C. It can be powered from 3.3V or 5V, and connects to your controller board using the supplied 220mm long 4-pin cable.

Features:
- 128 LEDs
- AIP1640 chip
- 4 pin interface (GND, VCC, SDA, SCL)
- I2C Communication Protocol
- 450kHz Oscillation Frequency
?- 400mW Power Consumption


    Specifications

    Arduino Modules

    Required Supply Voltage
    		 3.3V-5V

    Display Screen

    Horizontal Screen Resolution
    		 16Pixel
    Vertical Screen Resolution
    		 8Pixel

    Internal or Sub-part Dimensions

    Dimension details
    		 LED Pitch
    Width
    		 4mm, 32mm

    DC Current Rating

    DC current rating
    		 200mA

    Product Dimensions

    Length
    		 72mm
    Height
    		 8mm
    Width
    		 4mm, 32mm
    Weight
    		 12.2g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 8cm
    Packaged Width
    		 8cm
    Packaged Weight
    		 0.016kg
    Packaged Volume
    		 0.064l
    Packaged Height
    		 1cm

    Downloads

      Articles
      Articles

    XC3746-manualMain.pdf
