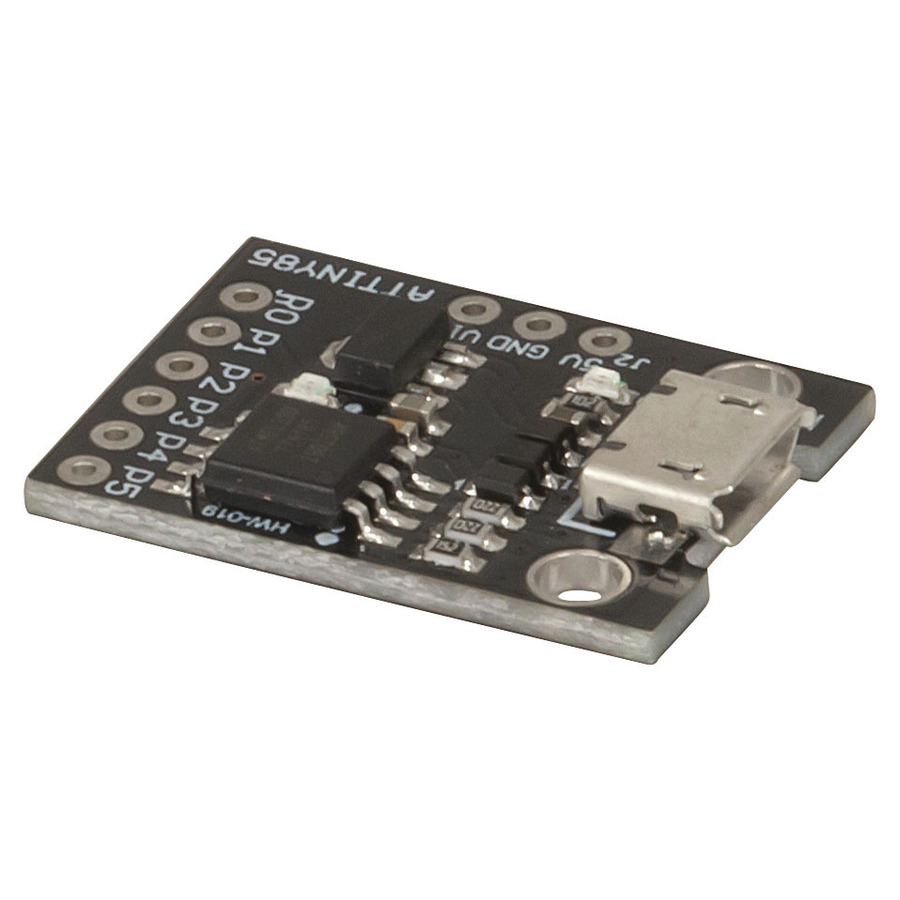

Duinotech ATTINY85 Micro USB Development Board
Duinotech ATTINY85 Micro USB Development Board

CAT. No. XC3940

Duinotech ATTINY85 Micro USB Development Board
product image thumb

Duinotech ATTINY85 Micro USB Development Board

$14.95
An 8-bit microcontroller development board that you can program using the Arduino IDE without the need for a custom built separate programming device. One of the smallest Arduino compatible main boards you'll see!

Out of Stock

Description

Arduino? Compatible
USB 2.0

This tiny development board features an ATtiny85 8-bit microcontroller that you can program using the Arduino IDE to make projects that don’t need all the performance of larger development boards such as the Arduino Nano or Uno. It has an onboard micro USB socket for programming and power, and 6 x I/O connections. Power can also be provided directly via 5V, or by using the integrated 5V voltage regulator from a 7-35VDC supply (12V or less recommended).

Features:
• Integrated 5V Regulator
• Low power
• 8k Flash Memory (about 6k after bootloader)


    Specifications

    Arduino Boards

    Program memory
    		 8KB
    Microcontroller
    		 ATtiny85 8-bit microcontroller
    Board Inputs
    		 6
    Board Outputs
    		 6

    USB Powered

    USB Voltage Input
    		 5V
    USB Item Connection
    		 Micro USB

    Arduino Modules

    Required Supply Voltage
    		 7V-35V

    Product Dimensions

    Height
    		 5mm
    Width
    		 24mm
    Depth
    		 18mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 10.8cm
    Packaged Width
    		 7cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.0378l
    Packaged Height
    		 0.5cm

    Downloads

      Articles
      Articles

    XC3940-manualMain.pdf
