Duinotech BBC Micro:bit Sensor Shield
Duinotech BBC Micro:bit Sensor Shield
Duinotech BBC Micro:bit Sensor Shield

CAT. No. XC4336

Duinotech BBC Micro:bit Sensor Shield
product image thumb
product image thumb

Duinotech BBC Micro:bit Sensor Shield

$9.95
Connect multiple sensor modules to your micro:bit development board with this purpose built adapter.

Out of Stock

Description

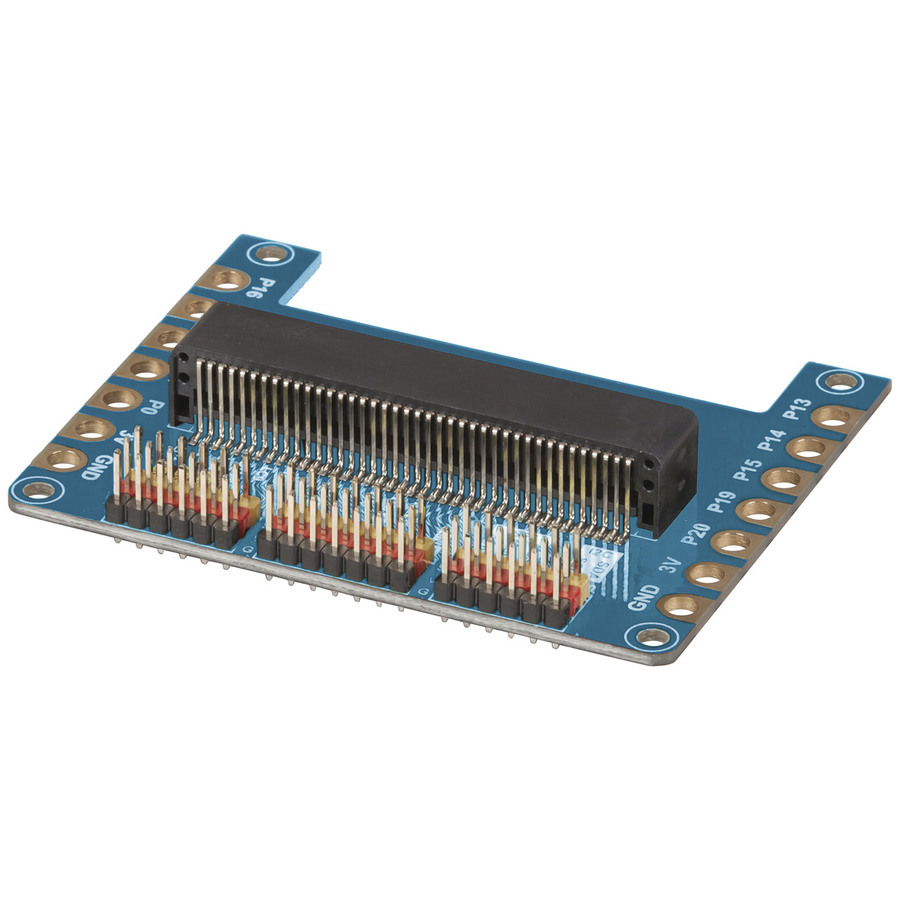

Enables you to connect multiple sensor modules to your micro:bit. Breaks out all IO pins on the edge of the micro:bit main board for you to connect alligator clips or jumper wires. Power can be provided from the battery pack connected to the micro:bit from the alligator clip terminals or by using the pin headers. Four mounting holes are provided so you can mount the shield to a panel.

- 2.54mm Pin Pitch


    Specifications

    Additional Dimensions

    Length
    		 76mm, 78mm
    Height
    		 12mm, 12mm
    Width
    		 63mm, 63mm
    Weight
    		 23g, 20g

    Arduino Modules

    Sensor Outputs
    		 Sensor Shield
    Required Supply Voltage
    		 3.3V-5V

    Product Dimensions

    Length
    		 76mm, 78mm
    Height
    		 12mm, 12mm
    Width
    		 63mm, 63mm
    Weight
    		 23g, 20g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 10cm
    Packaged Width
    		 6.5cm
    Packaged Weight
    		 0.028kg
    Packaged Volume
    		 0.0845l
    Packaged Height
    		 1.3cm

    Downloads

      Articles
      Articles

    XC4336-manualMain.pdf
