CAT. No. XC4419

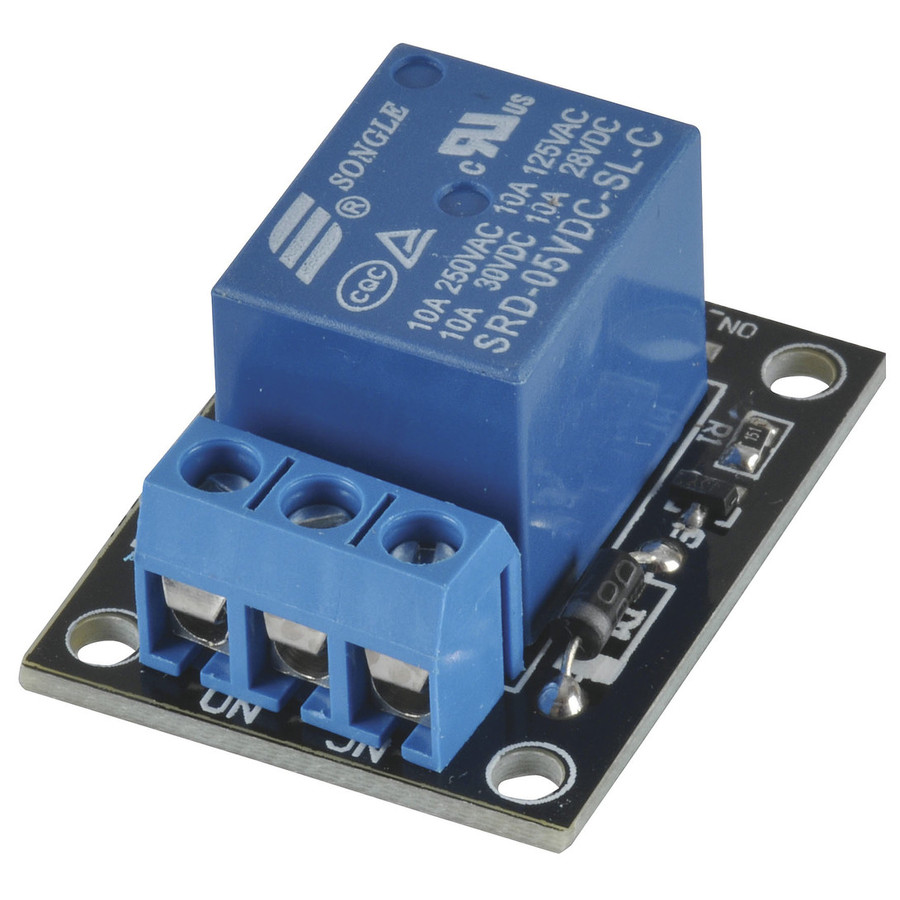

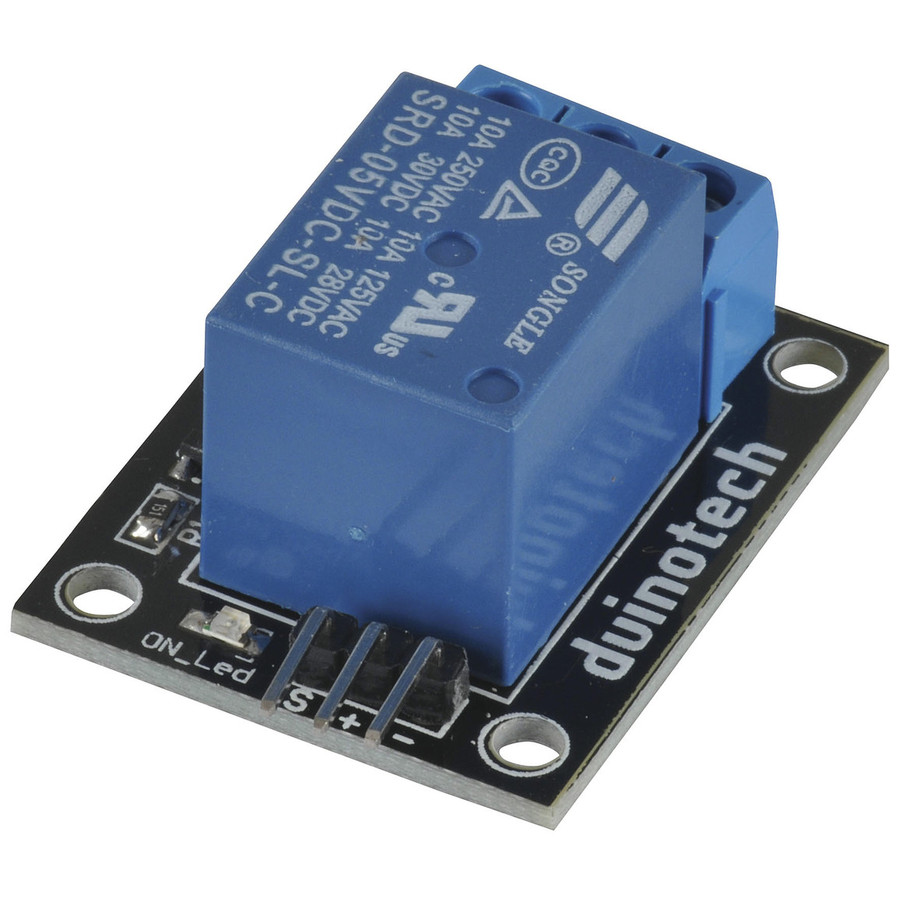

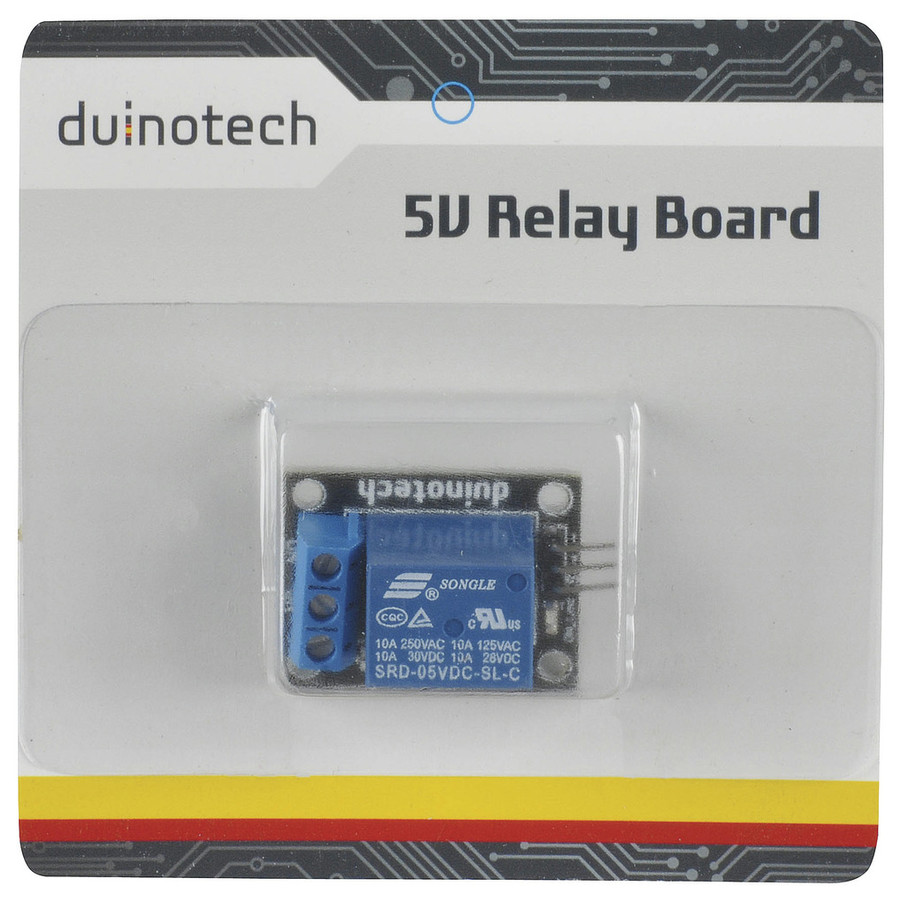

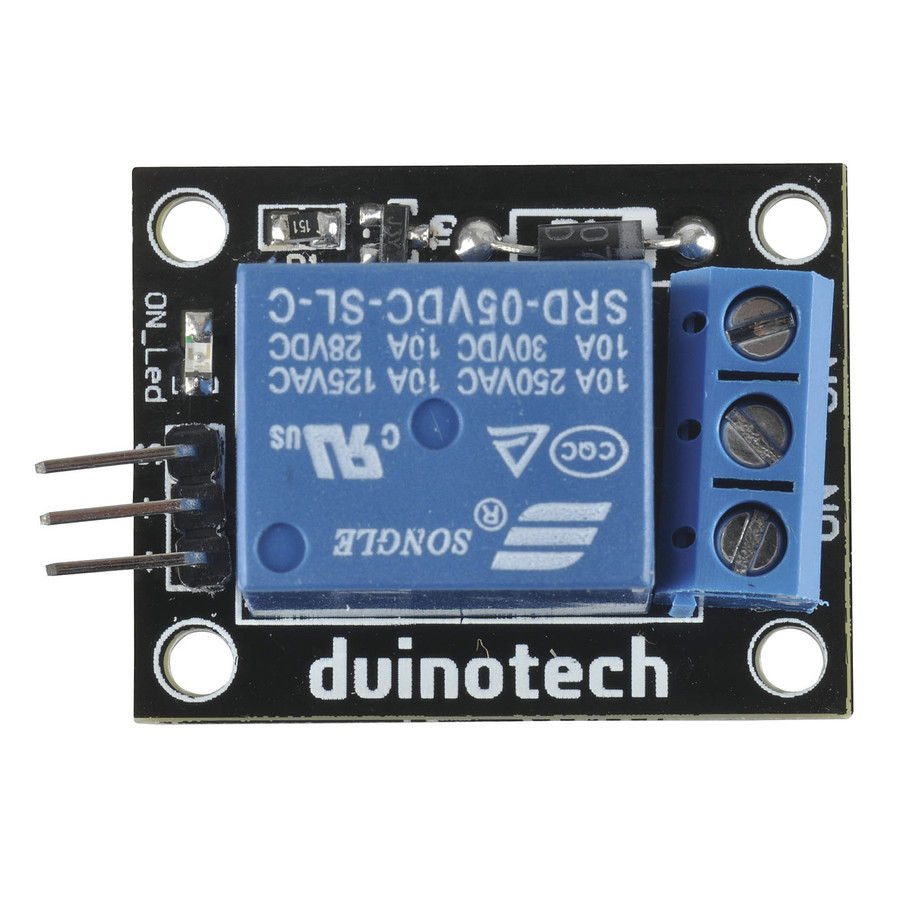

Duinotech Arduino Compatible 5V Relay
$8.25
These handy relay modules provide the easiest way to use your Duinotech development board to control switching of real world devices.
Available
Description
Arduino® CompatibleAvailable in one, four and eight channel versions, these modules can switch up to 10A per channel. Includes back-EMF (ElecroMagnetic Frequency) protection and LEDs so you can easily see the state of the outputs. The four and eight channel versions even have optical isolation to protect your main board. The one channel version operates directly from 5V.
Features:
• Status LEDs show channel status
• Active High logic
• Screw terminals for easy connection to relay contact.
• SPDT Relays
• Current Ratings:
10A @ 250VAC
10A @ 30VDC
• Four mounting holes on each module
| Cat No. | Channels | Supply Voltage | Optical Isolation | Dimensions |
| XC4419 | 1 | 5VDC | NO | 40(W) x 27(D) x 18(H)mm |
| XC4440 | 4 | 12VDC | YES | 77(W) x 55(D) x 17(H)mm |
| XC4418 | 8 | 12VDC | YES | 135(W) x 50(D) x 19(H)mm |
