CAT. No. XC4431

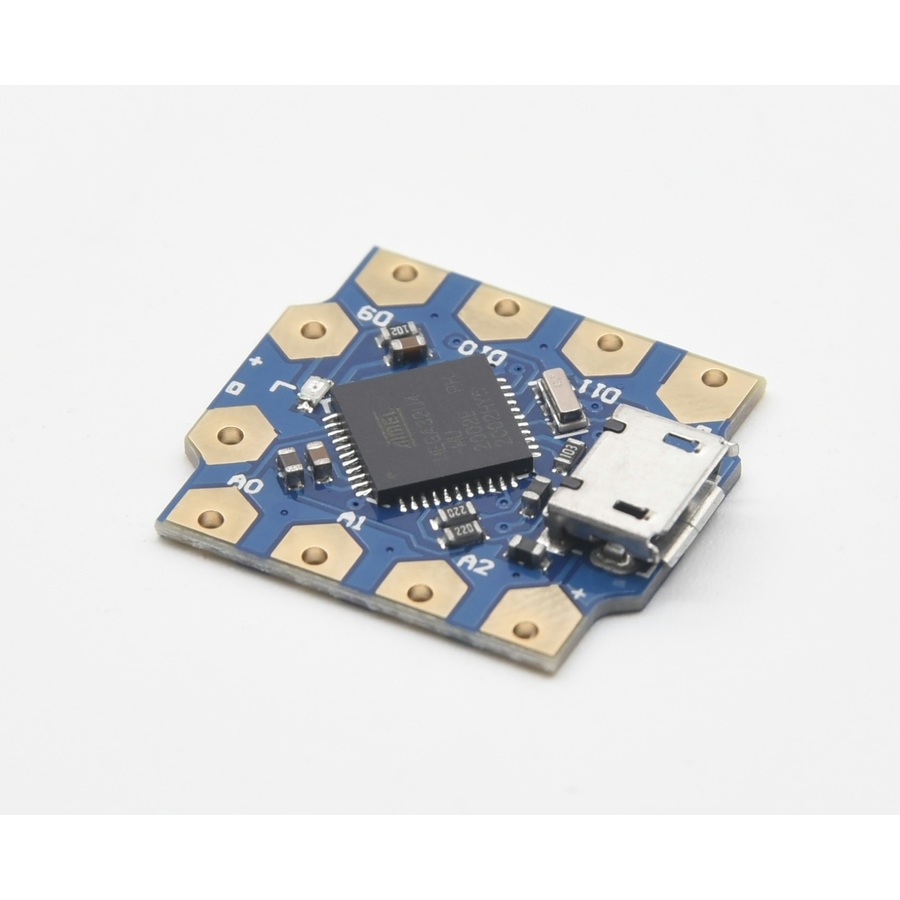

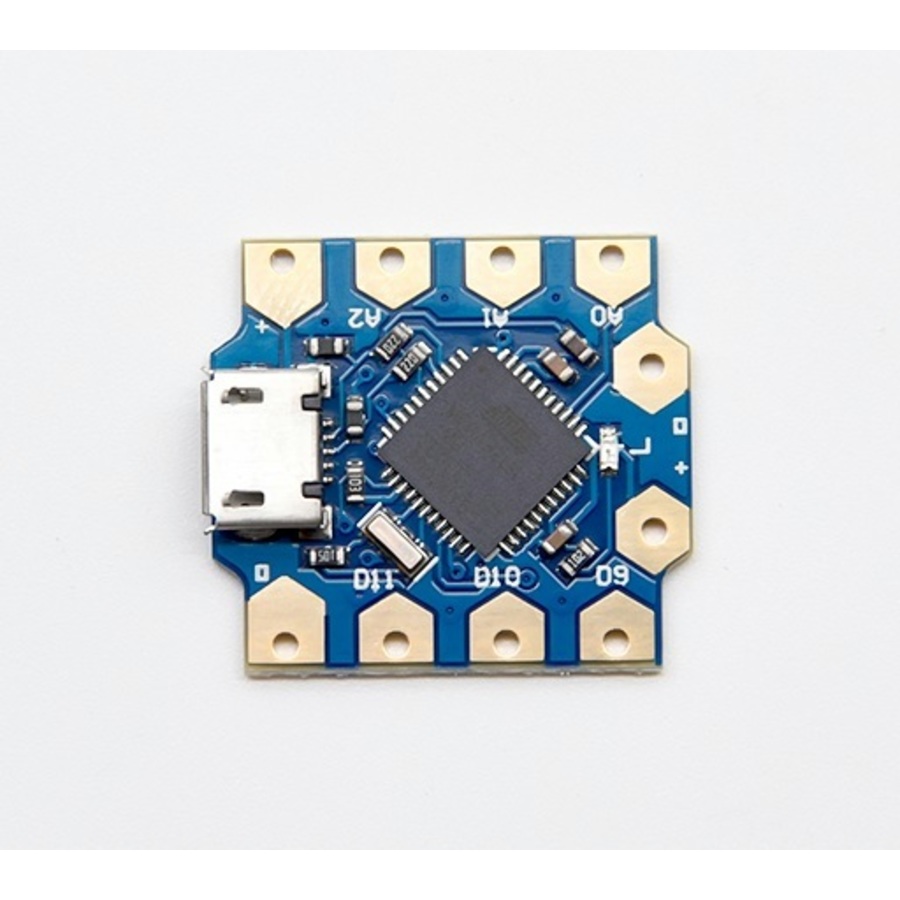

Duinotech Leonardo Tiny Atmega32U4 Development Board
product image thumb
product image thumb

Duinotech Leonardo Tiny Atmega32U4 Development Board

$21.95
This mighty mouse of the Arduino world boasts the popular Leonardo processor on a tiny form factor for shrinking those projects you d like to be more compact.

Out of Stock

Description

This Arduino-compatible development board is a smaller version of the popular Leonardo. It measures just 23 x 20mm and is a great choice when you need a low-cost and compact Arduino project. The power and three of its analogue and digital pins go to large gold-plated tabs, making them suitable to connect alligator clips or for sewing onto clothing with conductive thread (sold separately). The board features a 32u4 ATMEL processor with a 16MHz clock, 10 x pins, consisting of  4 x  Power, 3 x analogue I/O pins, and 3 x Digital I/O pins.

Specifications:
• 16MHz Clock Speed
• 32kB Flash Memory (4kB used by bootloader)
• 1kB EEPROM Memory
• Power in 5VDC via Power In Pins
• Power Out 5VDC via Power Out Pins
• Digital Output x 3
• Analogue Output x 3


    Specifications

    Arduino Boards


    Program memory
    32KB
    Microcontroller
    ATmega32u4
    Fully arduino compatible

    USB Powered


    USB Voltage Input
    5V

    Computer Specifications


    Flash Memory
    1kB
    RAM
    32kB

    Product Dimensions


    Height
    4mm
    Width
    23mm
    Depth
    20mm

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    10cm
    Packaged Width
    10cm
    Packaged Weight
    0.01kg
    Packaged Volume
    0.15l
    Packaged Height
    1.5cm
