CAT. No. XC4440

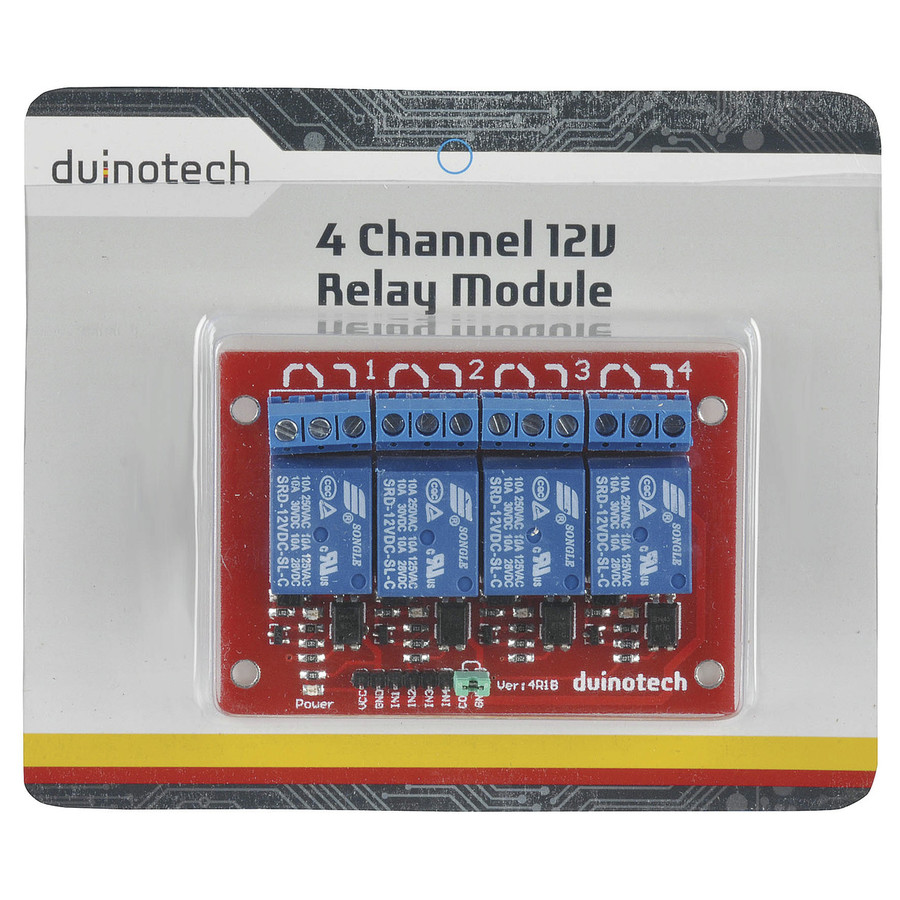

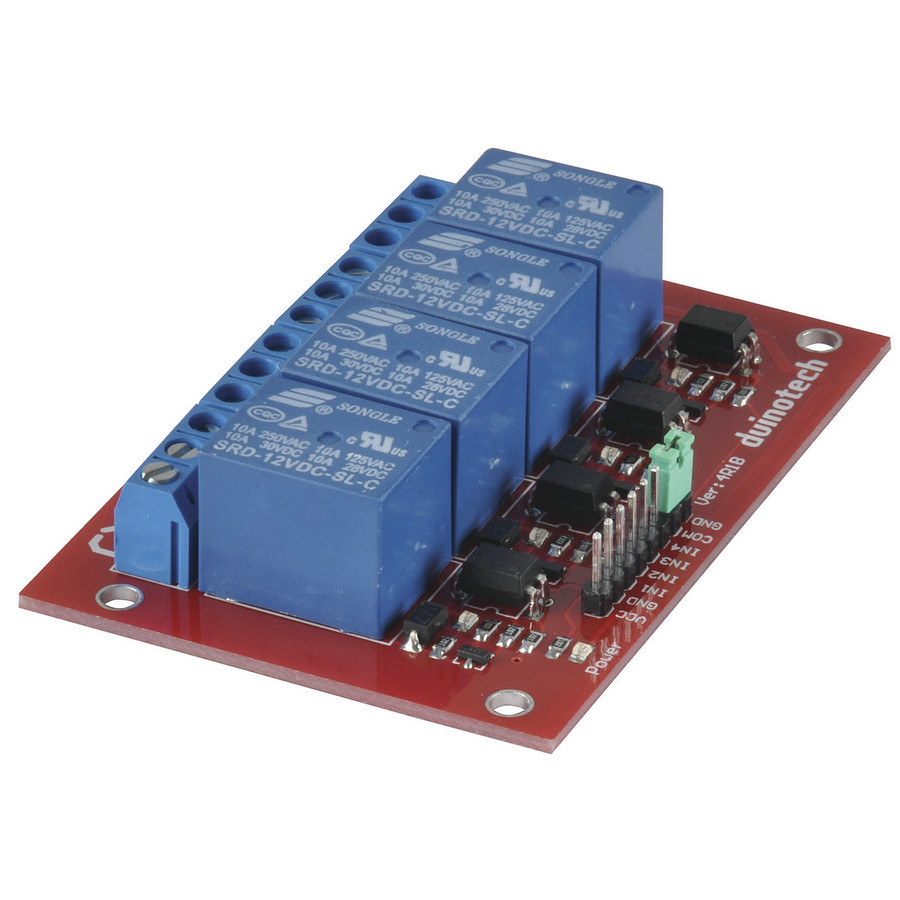

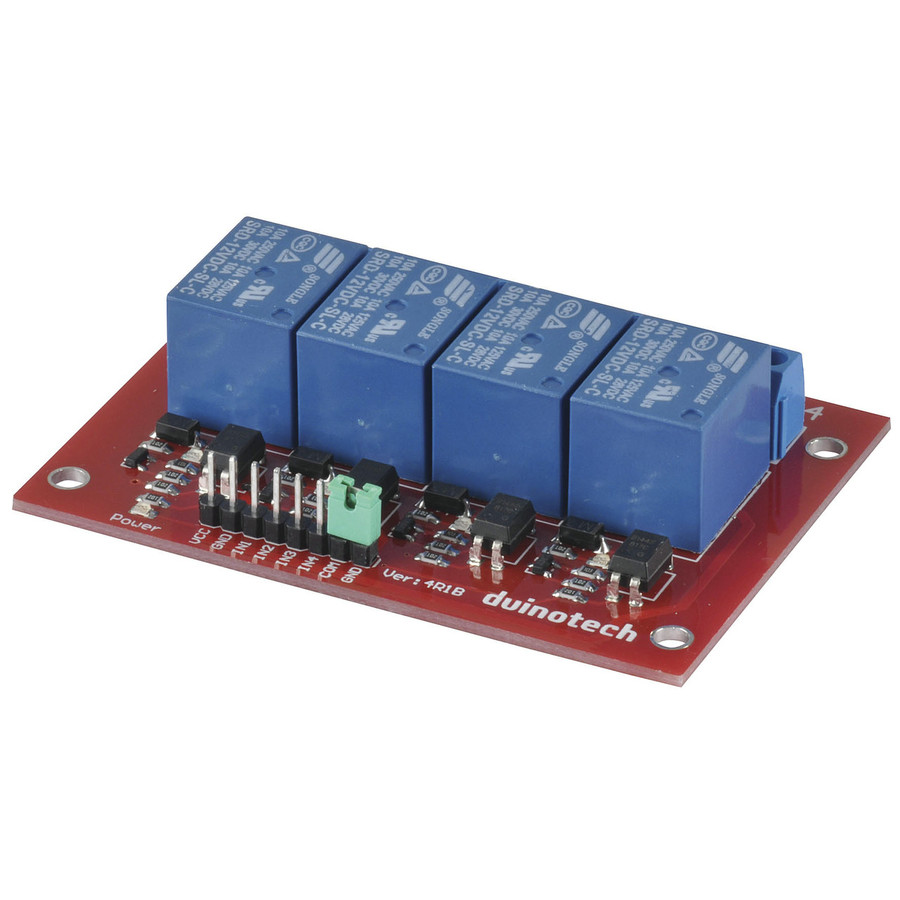

Arduino Compatible 4 Channel 12V Relay Module
$15.5
These handy relay modules provide the easiest way to use your Duinotech development board to control switching of real world devices.
Out of Stock
Description
Arduino® CompatibleThese handy relay modules provide the easiest way to use your DuinoTECH to switch real world devices. Available in one, four and eight channel versions, these modules can switch up to 10A per channel. Includes back-EMF protection and LEDs so you can easily see the state of the outputs. The four and eight channel versions even have optical isolation to protect your DuinoTECH. While the one channel version operates directly from 5V.

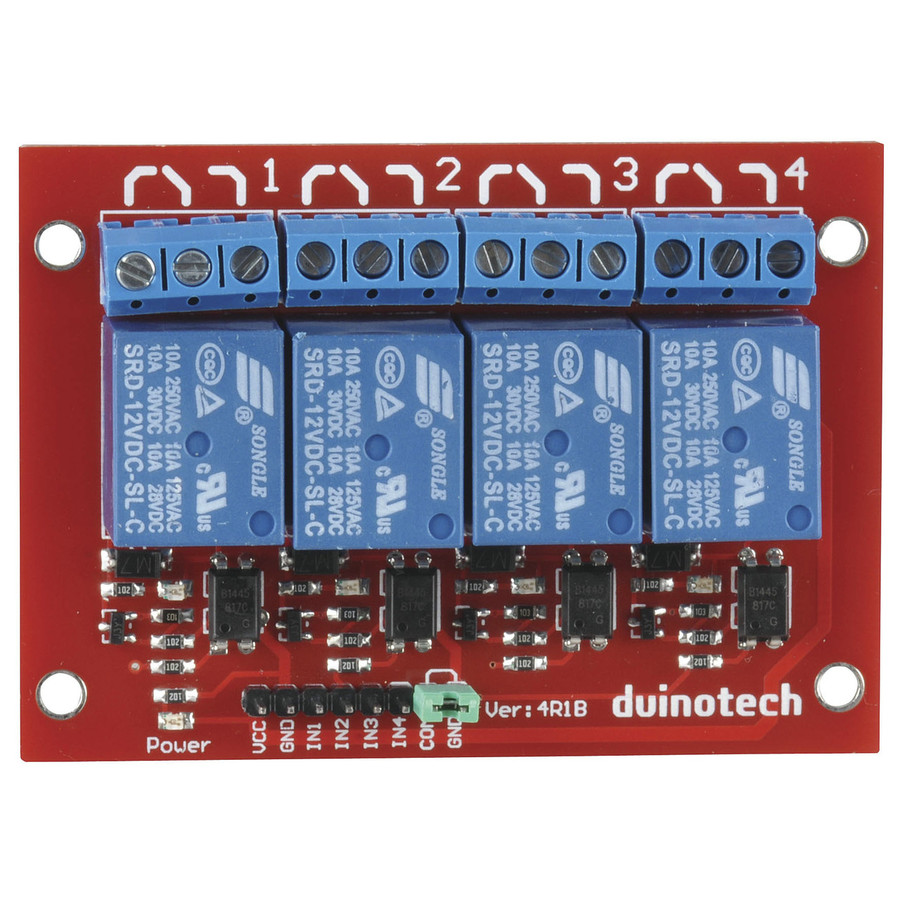

• Status LEDs show channel status
• Active High logic

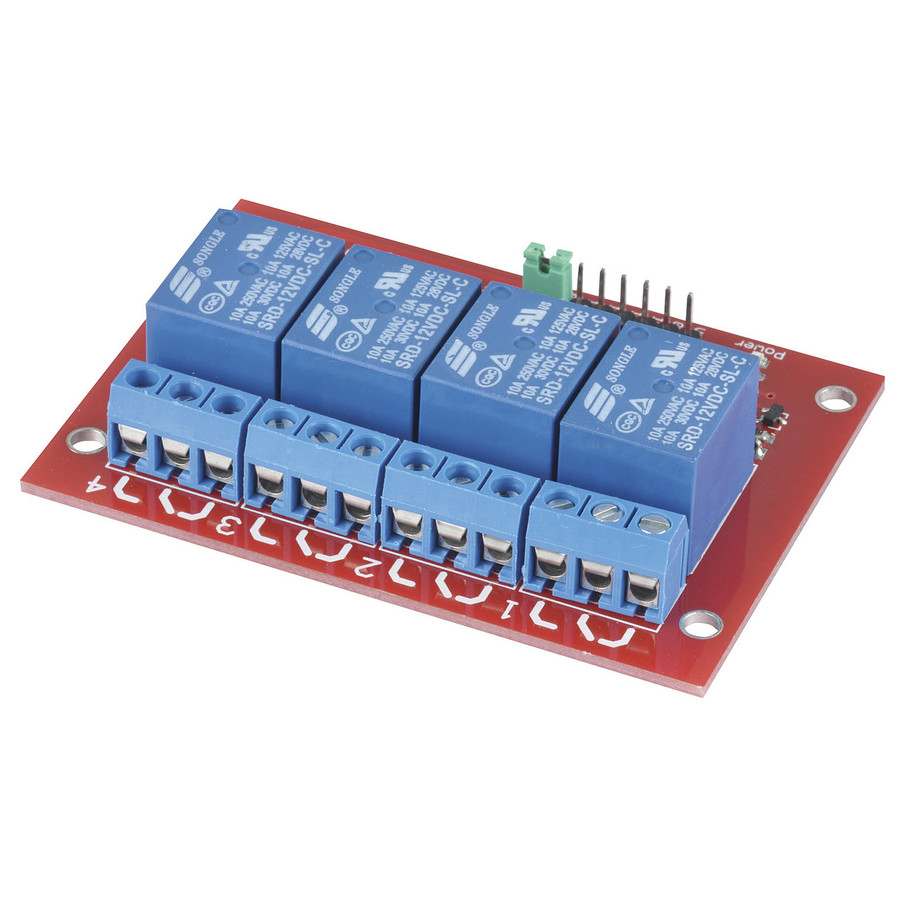

• Screw terminals for easy connection to relay contact.
• SPDT Relays
• Current Ratings:
o 10A @ 250VAC
o 10A @ 30VDC
• Four mounting holes on each module
| Cat No. | Channels | Supply Voltage | Optical Isolation | Dimensions |
| XC-4419 | 1 | 5VDC | NO | 40(W) x 27(D) x 18(H)mm |
| XC-4440 | 4 | 12VDC | YES | 77(W) x 55(D) x 17(H)mm |
| XC-4418 | 8 | 12VDC | YES | 135(W) x 50(D) x 19(H)mm |
