Arduino Compatible Line Trace Sensor Module

$7.95

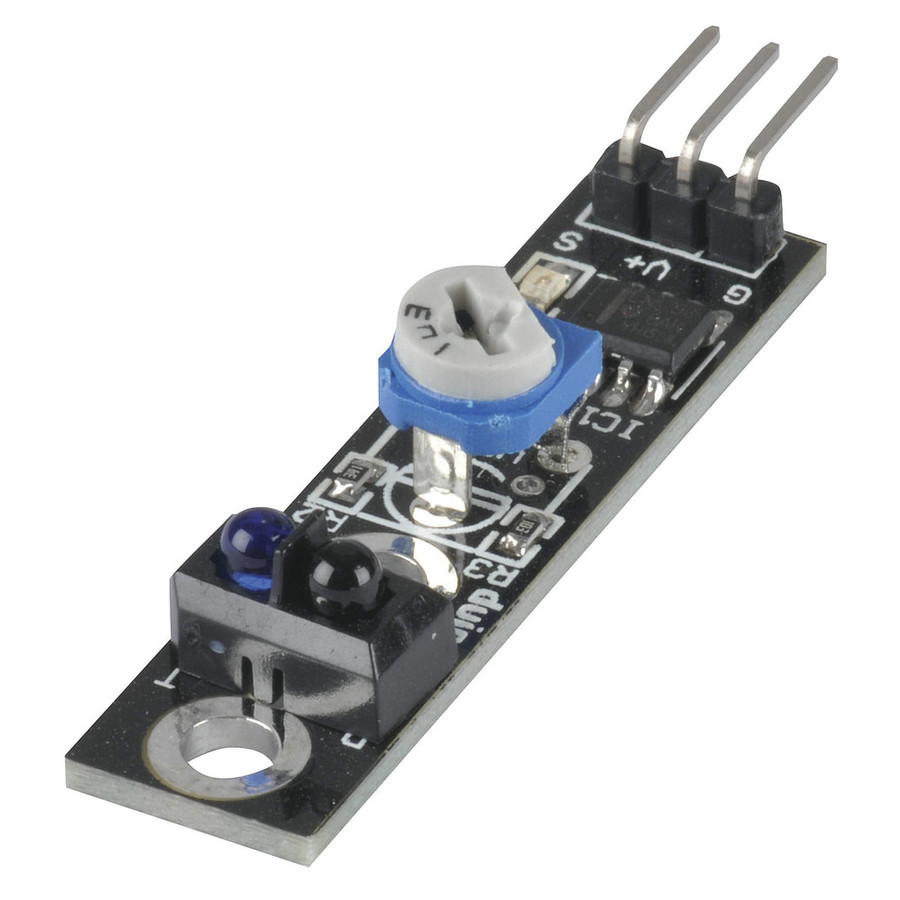

This module measures the reflectivity of a surface with an infrared emitter/detector pair. Popular in robotics projects to make your robot follow a path!
Available

Description

Arduino® Compatible

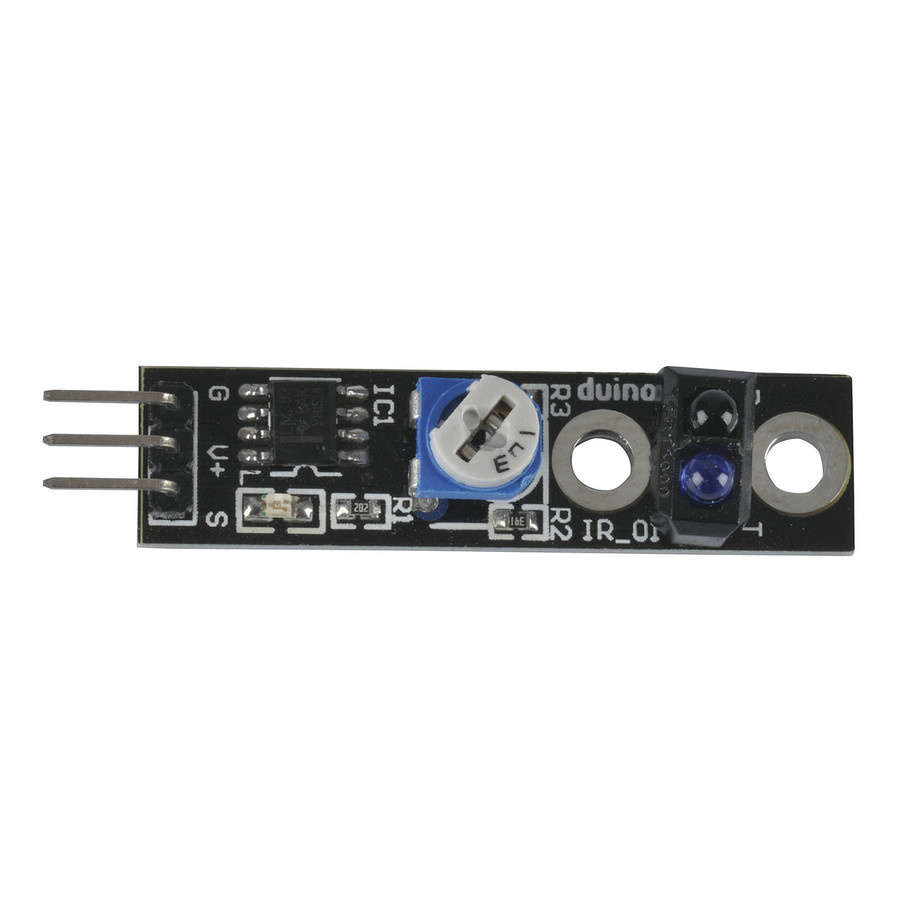

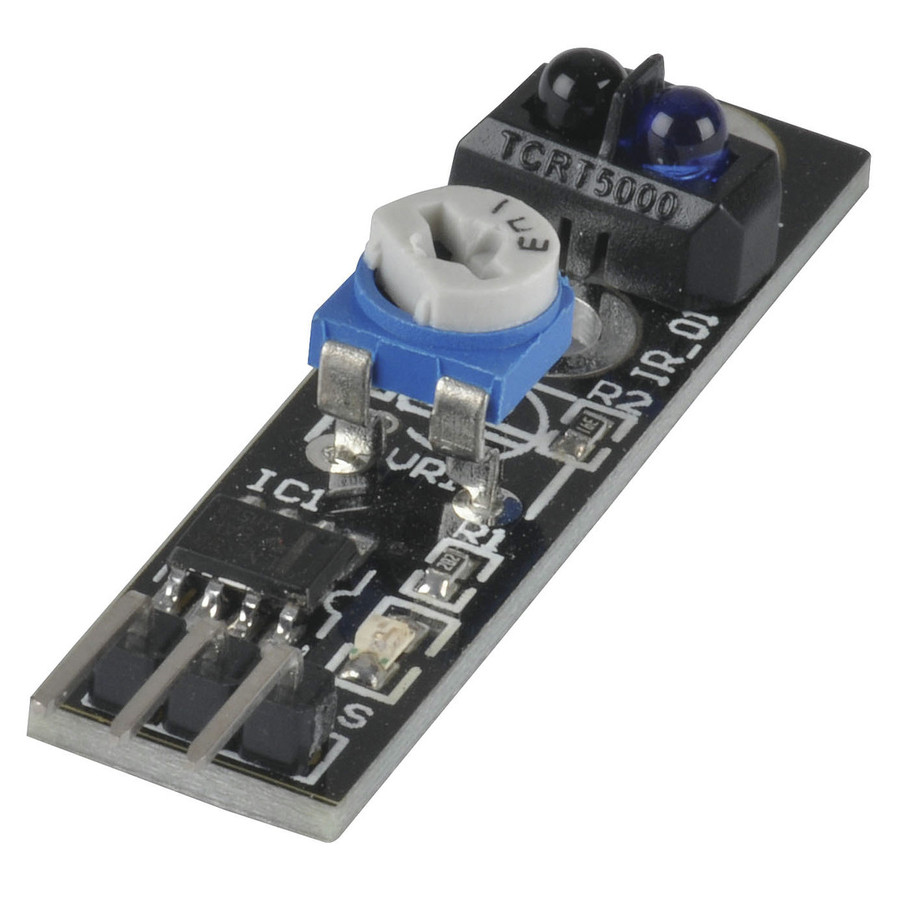

This module measures the reflectivity of a surface with an infrared emitter/detector pair. The output goes to high whenever the reflectivity exceeds the threshold value, which can be adjusted with the onboard potentiometer.

•    Output electrical level signal: Active Low
•    VCC/OUT/GND pin connector
•    Power Supply: 2.5-12V
•    Working current: 18-20mA at 5V



For More info on Arduino.


    Specifications

    Packaged Dimensions

    Packaged Length
    		 10cm
    Packaged Width
    		 10cm
    Packaged Weight
    		 0.1kg
    Packaged Volume
    		 0.15l
    Packaged Height
    		 1.5cm

    Arduino Modules

    Sensor Outputs
    		 digital logic, Active low
    Required Supply Voltage
    		 5V

    Product Availability

    Availability
    		 Stocked item
