Arduino Compatible Stepper Motor Controller Module

$18.5

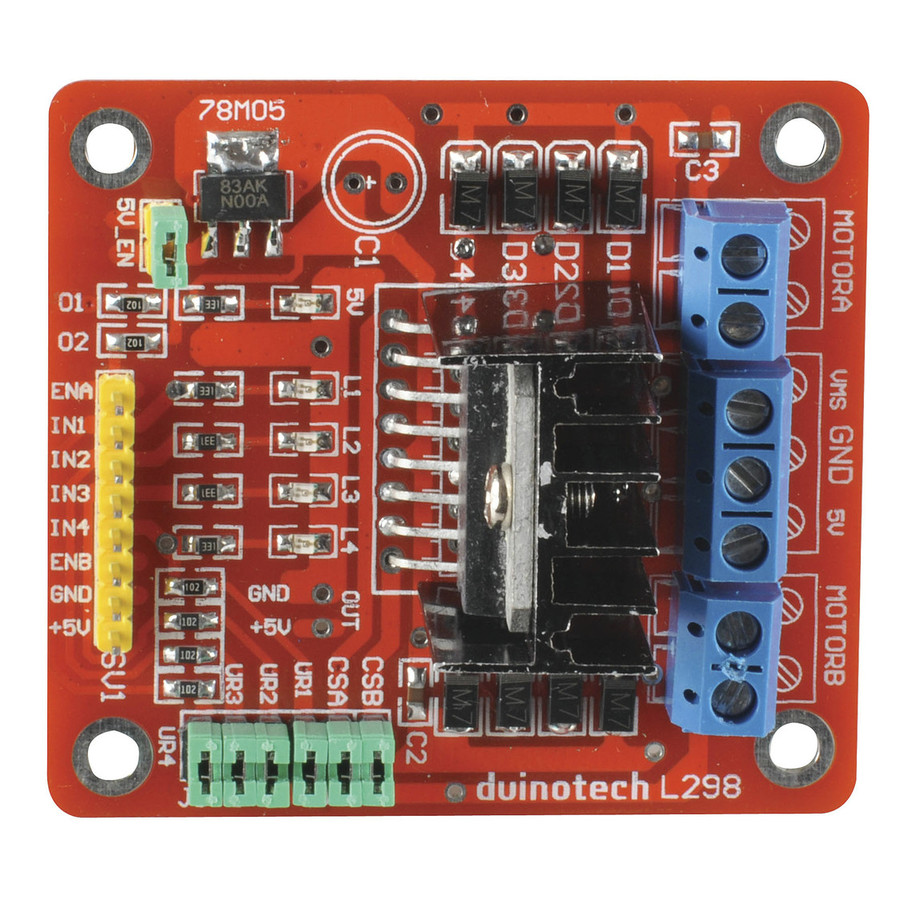

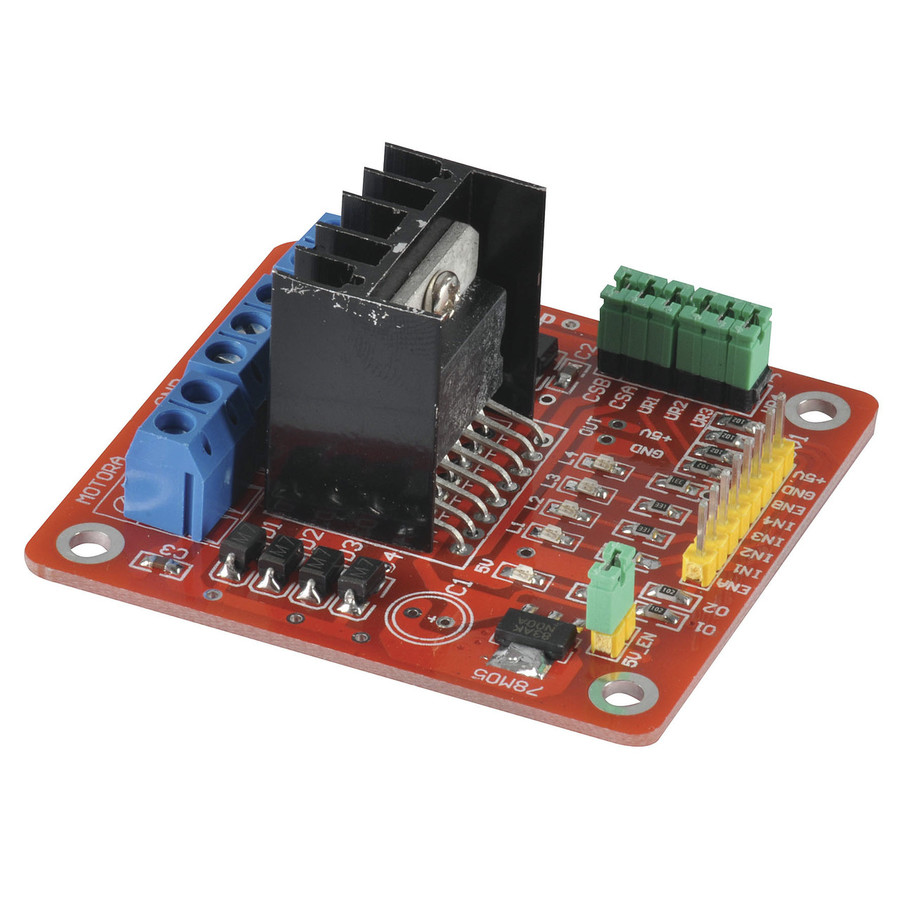

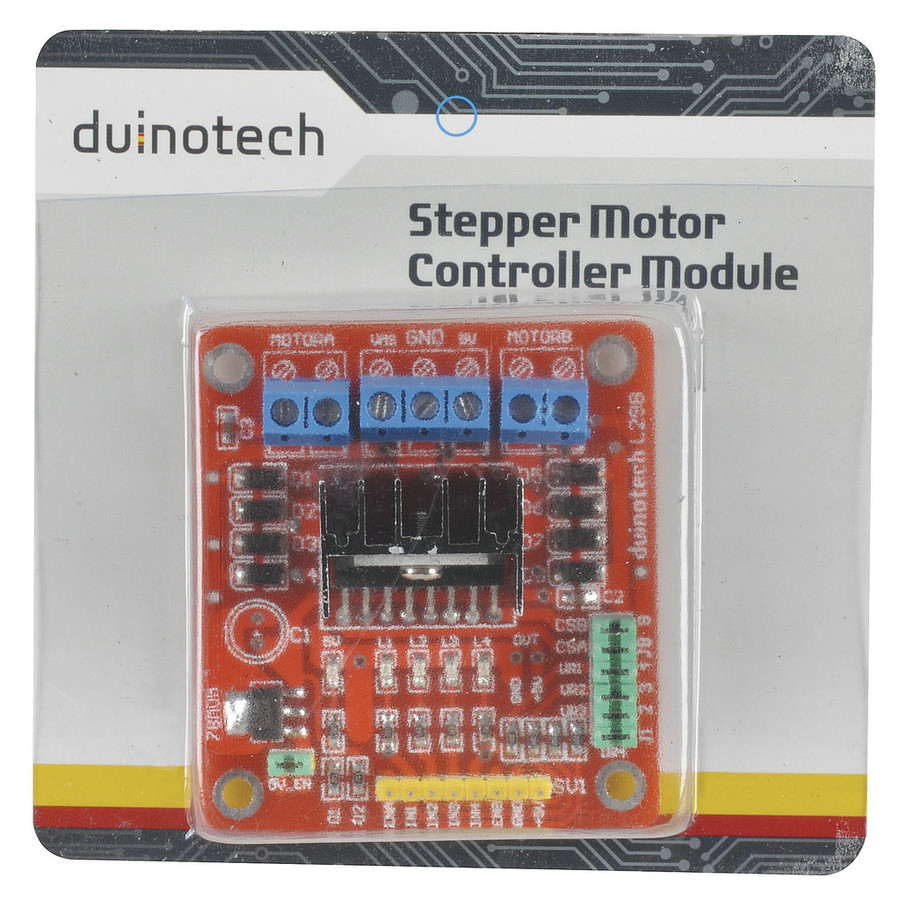

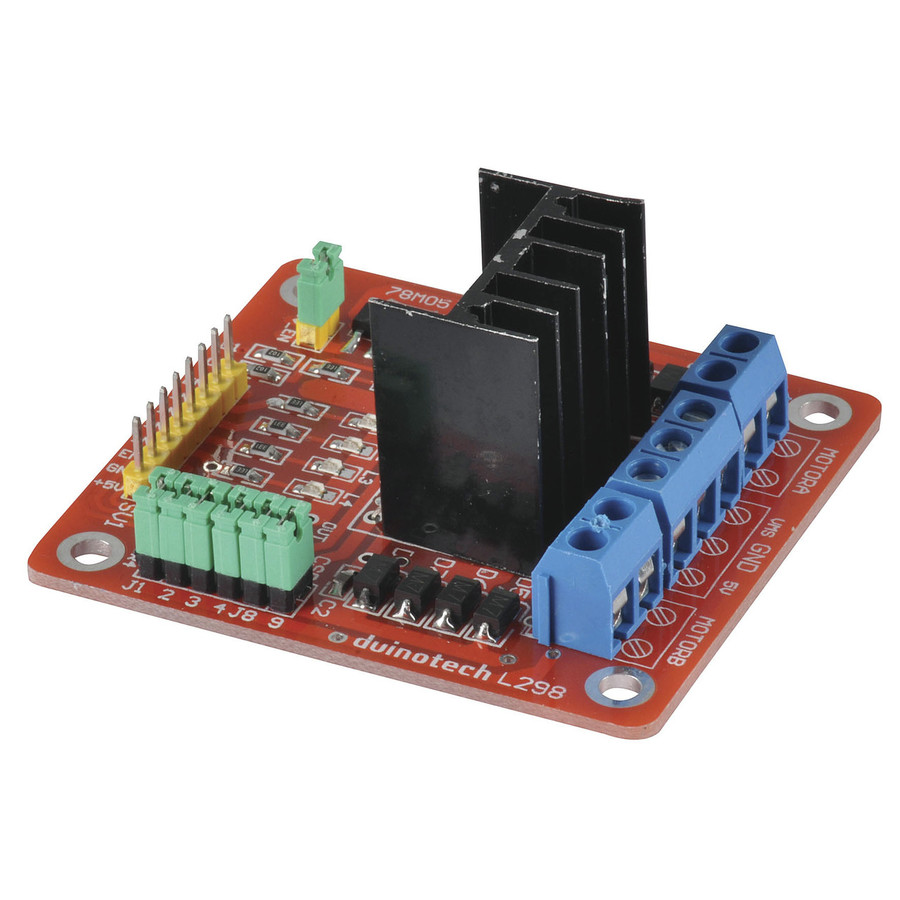

Using the powerful L298N Dual Motor Driver, this module allows full control of two DC motors or one stepper-motor in your project.
Available

Description

Arduino® Compatible

Using the powerful L298N Dual Motor Driver, this module allows full control of two DC Motors or one stepper-motor. Features back-EMF and over-temperature protection, it is ideally suited to drive two-motor robot kits. An on-board 5V regulator can also be used to power your project.

•    Screw Terminals for easy connections
•    LEDs show power and output status
•    Requires six digital pins
•    4 mounting holes


    Specifications

    Product Dimensions

    Height
    		 36mm
    Width
    		 69mm
    Depth
    		 56mm

    Packaged Dimensions

    Packaged Length
    		 5.7cm
    Packaged Width
    		 8.2cm
    Packaged Weight
    		 0.036kg
    Packaged Volume
    		 0.154242l
    Packaged Height
    		 3.3cm

    Arduino Modules

    Sensor IC
    		 L298N
    Required Supply Voltage
    		 3V-30V

    Product Availability

    Availability
    		 Stocked item
