Arduino Compatible Lithium Battery USB Charger Module

$5.95
This tiny module charges one lithium cell from a 5V supply. Ideally paired with XC4512 DC-to-DC Converter Module to create a project that runs on a single lithium cell and recharges by USB.
Available

Description

Arduino® Compatible

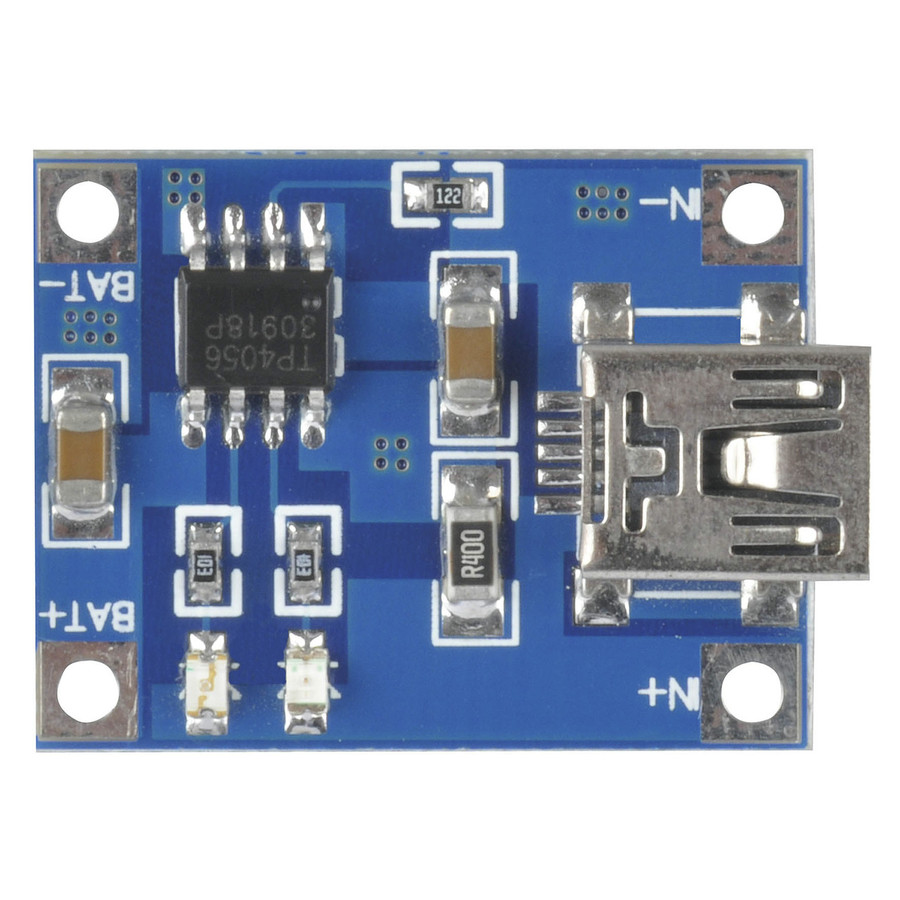

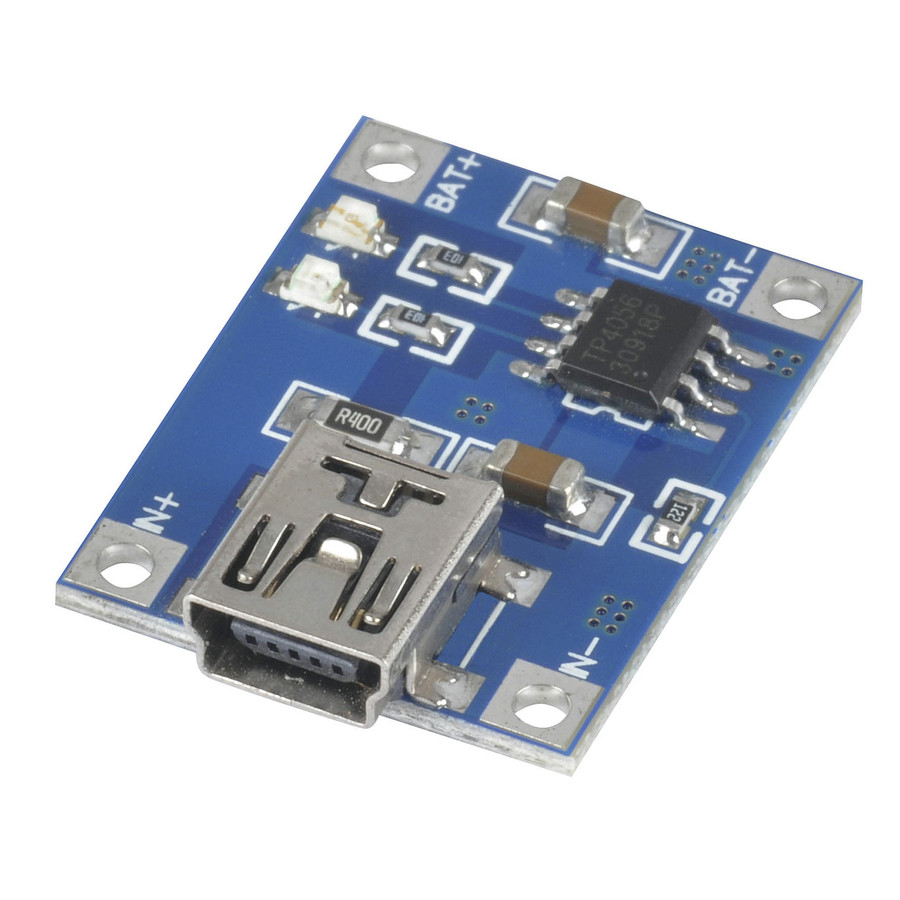

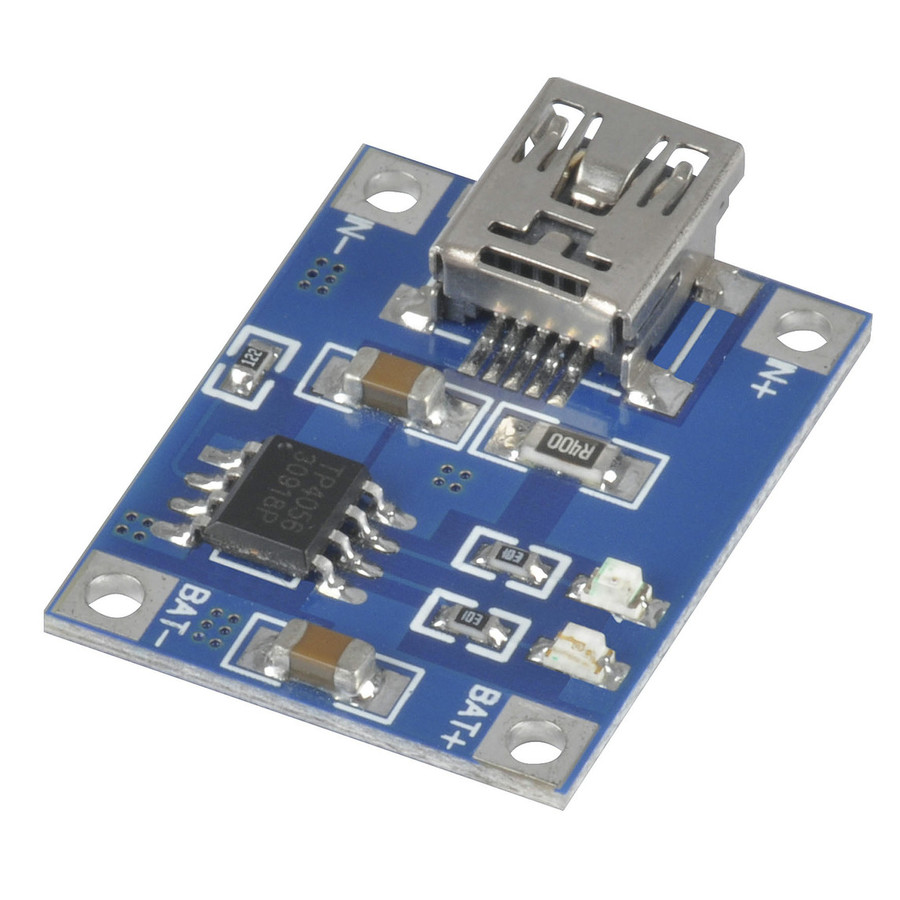

This tiny module charges a single lithium cell from a 5V supply. Ideally paired with XC-4512 DC-to-DC Converter Module to create a device that runs on a single lithium cell and recharges by USB. Output via solder tabs, Input is either via solder tabs or a mini-USB port.

Features:

•    Linear charge rate of 1%
•    Full charge voltage 4.2V
•    Charge state  LEDs


    Specifications

    Product Dimensions

    Length
    		 27mm
    Height
    		 5mm
    Width
    		 19mm

    Arduino Modules

    Sensor IC
    		 TP4056
    Required Supply Voltage
    		 4.5V-5.5V

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 10cm
    Packaged Width
    		 10cm
    Packaged Weight
    		 0.01kg
    Packaged Volume
    		 0.1l
    Packaged Height
    		 1cm

    Downloads

      Articles
      Articles
      Projects

    XC4502-dataSheetMain.pdf
