CAT. No. XC4522

Arduino Compatible RF Transceiver Module
product image thumb
product image thumb
product image thumb
product image thumb

Arduino Compatible RF Transceiver Module

$19.95

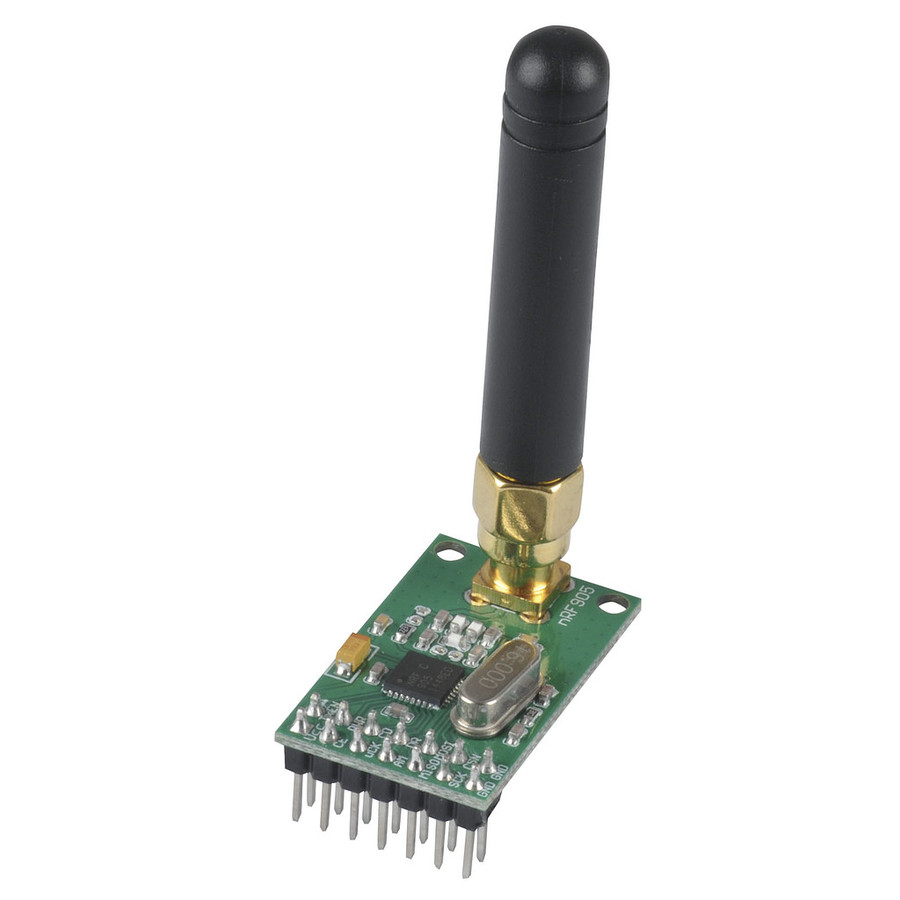

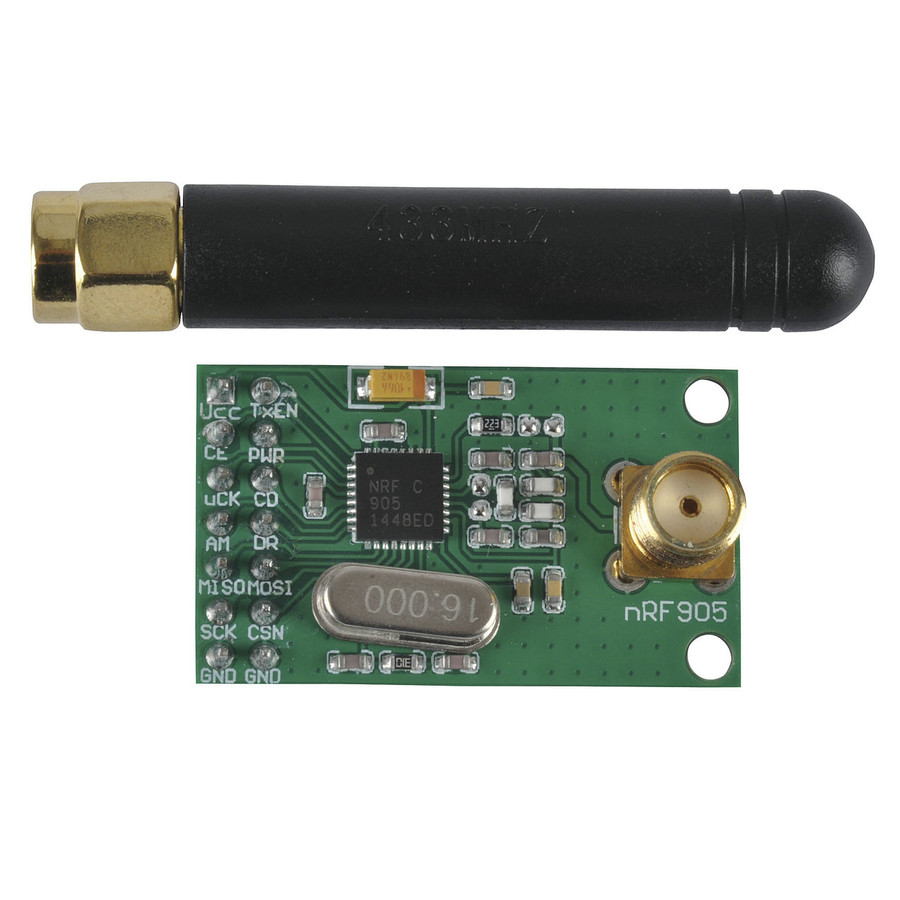

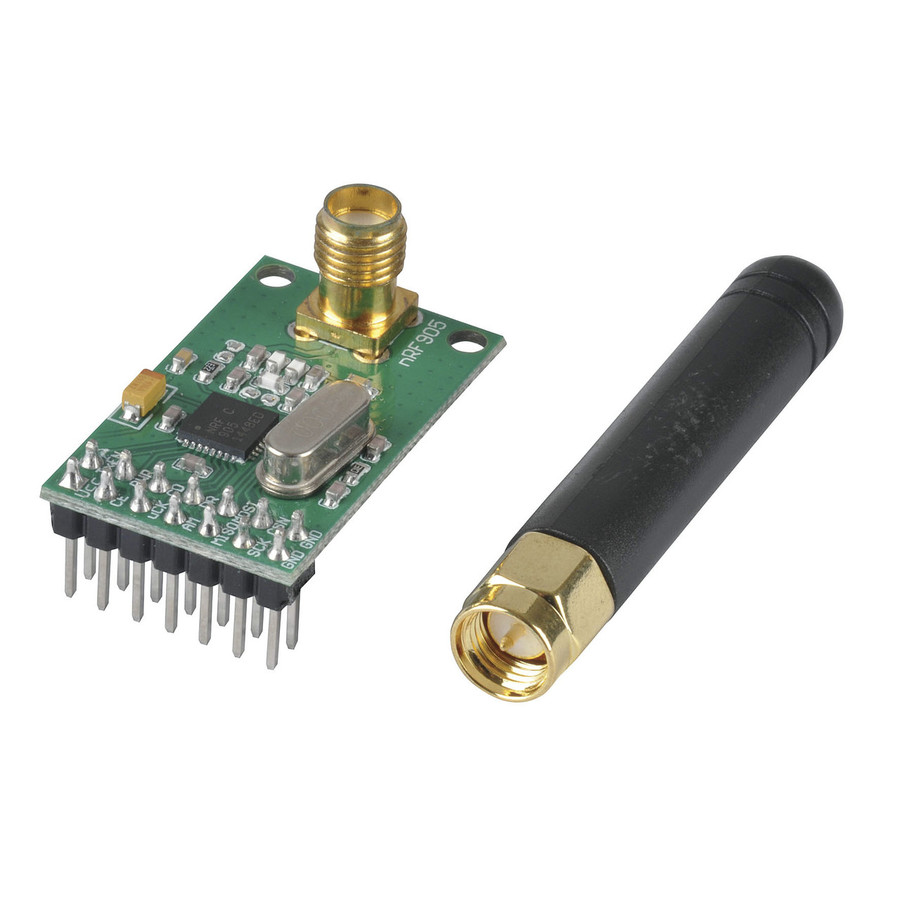

This module adds a versatile 433Mhz radio to your DuinoTECH project.

Out of Stock

Description

Arduino® Compatible

This module adds a versatile 433Mhz radio to your DuinoTECH project. Capable of transmitting and receiving over a wide frequency range, these modules allow two-way wireless communication between DuinoTECHs. Controlled via SPI. Prewritten libraries available.

Features:

•    Frequency Range 433/898/915MHz
•    Maximum Data Rate: 50kbps(with error correction)
•    RF output power: 13dBm(20mW)
•    Connection protocol: SPI
•    Includes antenna.


    Specifications

    Product Dimensions

    Length
    		 19mm
    Height
    		 19mm
    Width
    		 32mm

    Packaged Dimensions

    Packaged Length
    		 10cm
    Packaged Width
    		 10cm
    Packaged Weight
    		 0.018kg
    Packaged Volume
    		 0.2l
    Packaged Height
    		 2cm

    Arduino Modules

    Required Supply Voltage
    		 1.9V-3.6V

    Downloads

      Articles
      Articles

    XC4522-dataSheetMain.pdf
