CAT. No. XC4524

Arduino Compatible IR Obstacle Avoidance Sensor Module
product image thumb
product image thumb
product image thumb
product image thumb

Arduino Compatible IR Obstacle Avoidance Sensor Module

$9.95
This module is an inexpensive solution for an obstacle avoidance sensor, perfect for robotic projects and very easy to interface directly with Arduino® and compatible boards.
Available

Description

Arduino® Compatible

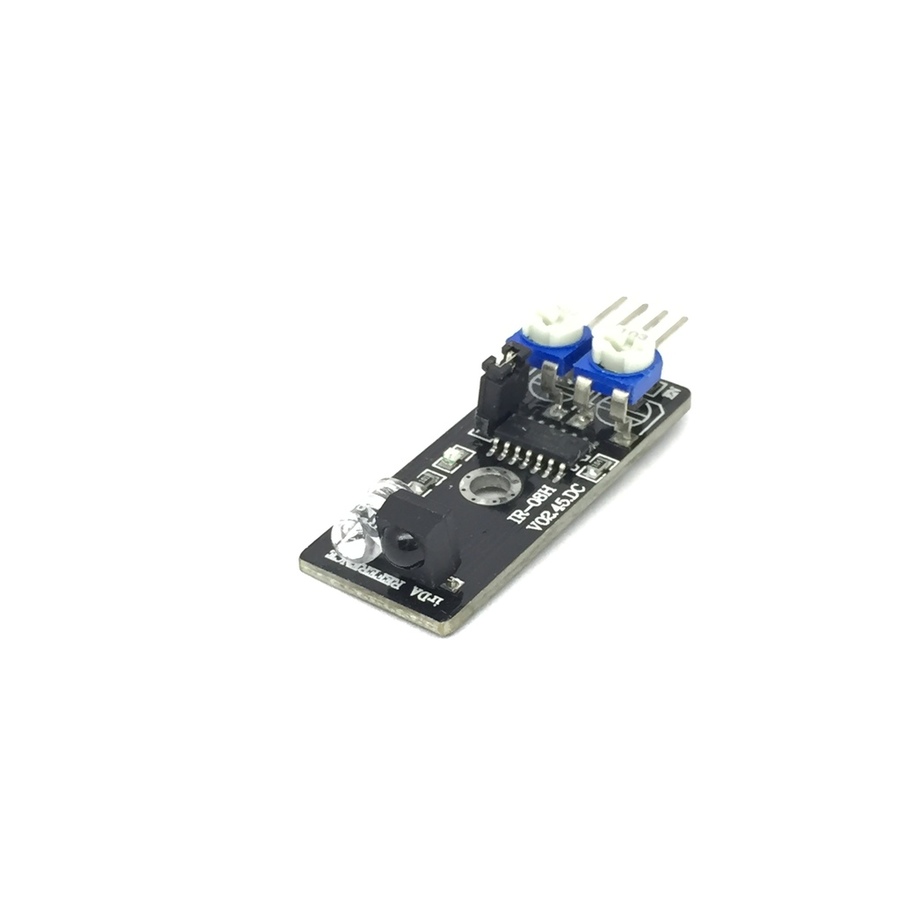

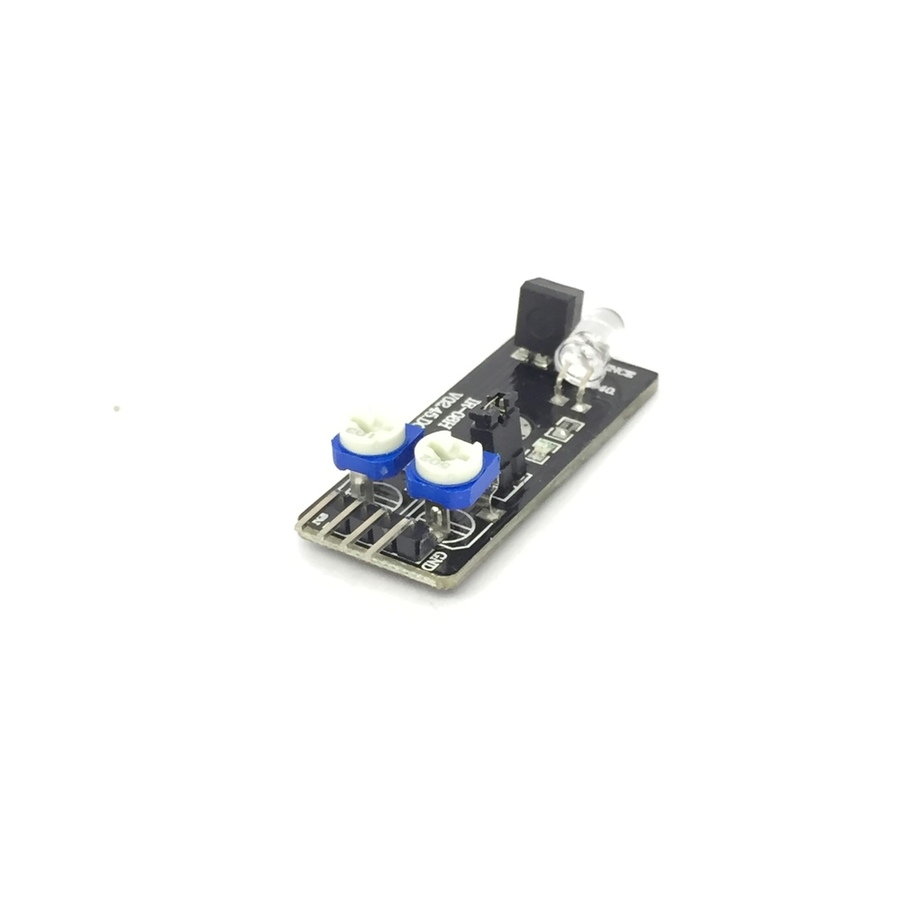

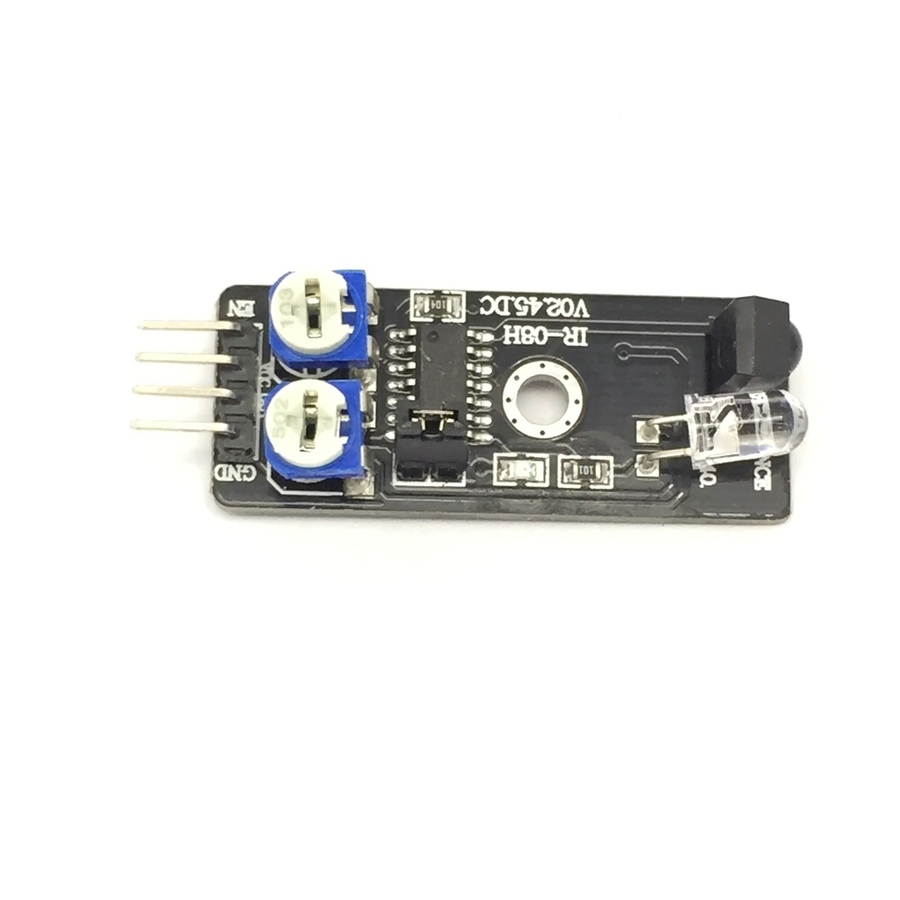

This module is an inexpensive solution for an obstacle avoidance sensor, perfect for robotic projects and very easy to interface directly with Arduino® and compatible boards. It also works with our pcDuino module by using the 3.3V output. The module has two potentiometers, one to control frequency and one to control the intensity.

Features:

•    Adjustable frequency and intensity
•    4 pin header


    Specifications

    Product Dimensions

    Length
    		 42mm
    Height
    		 18mm
    Width
    		 27mm

    Packaged Dimensions

    Packaged Length
    		 10cm
    Packaged Width
    		 10cm
    Packaged Weight
    		 0.012kg
    Packaged Volume
    		 0.2l
    Packaged Height
    		 2cm

    Arduino Modules

    Sensor Outputs
    		 digital logic Active low
    Required Supply Voltage
    		 3.3V-5V
